3110-01-201-6950

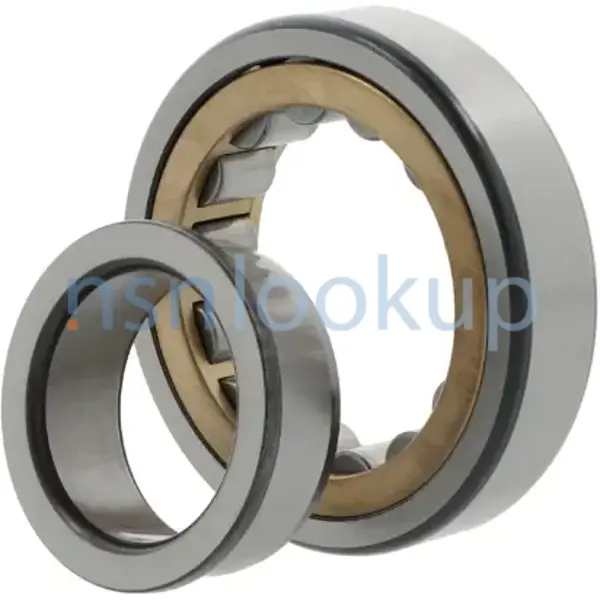

Cylindrical Roller Bearing
3110012016950 012016950 MR1216EL 12354925 NJ 216 MR1216-EB 3110001082861
A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME. View more Cylindrical Roller Bearing
Managed by United States
NSN Created on 21 Feb 1985
Data Last Changed
March 2025
March 2025
NATO Update Count
39
39
NATO Data Quality
Marketplace 3110-01-201-6950
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-201-6950 5+ Documents (More...)
MR1216EL 12354925 NJ 216 MR1216-EB 3110001082861 A nonadjustable roller bearing consisting of a single
RQST NE Updated Every Day 3110-01-201-6950 RQST Updated Every Day 3110-01-201-6950 RQST NE Related
Documents 3110-01-201-6950 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-31/fsc-3110/us 3110
RQST NE Updated Every Day 3110-01-201-6950 RQST Updated Every Day 3110-01-201-6950 RQST NE Related
Documents 3110-01-201-6950 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-31/fsc-3110/us 3110
NJ-216 BEARING,ROLLER,CYLINDRICAL 3 EA NS Request Quotation MR-1216-EB BEARING,ROLLER,CYLINDRICAL 1 EA
NJ-216 BEARING,ROLLER,CYLINDRICAL 3 EA NS Request Quotation MR-1216-EB BEARING,ROLLER,CYLINDRICAL 1
/us 3110-01-201-6950 Cylindrical Roller Bearing 3110012016950, 01-201-6950Cylindrical Roller Bearing3110012016950
NJ-216 BEARING,ROLLER,CYLINDRICAL 3 EA NS Request Quotation MR-1216-EB BEARING,ROLLER,CYLINDRICAL 1
/us 3110-01-201-6950 Cylindrical Roller Bearing 3110012016950, 01-201-6950Cylindrical Roller Bearing3110012016950
320-5798 3110-12-174-2798 3110-01-147-6297 3110-12-353-1519 3110-15-070-0970 3110-12-191-6516 3110-01-201-6950
320-5798 3110-12-174-2798 3110-01-147-6297 3110-12-353-1519 3110-15-070-0970 3110-12-191-6516 3110-01-201-6950
320-5798 3110-12-174-2798 3110-01-147-6297 3110-12-353-1519 3110-15-070-0970 3110-12-191-6516 3110-01-201-6950
Restrictions 3110-01-201-6950
3110-01-201-6950 is a Cylindrical Roller Bearing that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-201-6950
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-201-6950
- US Army (A919)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZ
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Nov 2001
- Spain (YB01)
- Effective Date:
- 1 Dec 2002
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2005
- Australia (ZA01)
- Effective Date:
- 1 Dec 1997
- New Zealand (ZE01)
- Effective Date:
- 1 May 1997
- Germany (ZG01)
- Effective Date:
- 1 Apr 1997
- United Kingdom (ZK01)
- Effective Date:
- 1 Jul 2000
- Netherlands (ZN01)
- Effective Date:
- 1 Sep 1996
- Portugal (ZP01)
- Effective Date:
- 1 Jun 1997
- Norway (ZT01)
- Effective Date:
- 1 Mar 2002
- Greece (ZU01)
- Effective Date:
- 1 May 2006
- Turkey (ZW01)
- Effective Date:
- 1 Oct 1999
Approved Sources 3110-01-201-6950
- Part Number
- Manufacturer
- Status
- 12354925
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- 12354925
- 0LTL1 - Ntn Bearing Corporation Of America (Active)
- Primary Buy
- Primary Buy
- 12354925
- D0838 - Kesel, Georg Gmbh & Co. Kg (Active)
- Primary Buy
- Primary Buy
- MR1216EL
- 0LTL1 - Ntn Bearing Corporation Of America (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- NJ 216
- 52676 - Skf Usa Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MR1216EL
- 01212 - Federal-Mogul Corp Government Sales (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 12354925
- 19382 - Rexnord Industries, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MR1216-EB
- 19382 - Rexnord Industries, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3110001082861
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3110001082861
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 12354925
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 3110-01-201-6950
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Bore Diameter [ABXV]
- 80.0 Millimeters Nominal
- Bore Shape [AGZD]
- Straight
- Criticality Code Justification [CRTL]
- Feat
- Material [MATT]
- Steel Overall
- Internal Fit-Up Designation [AGZH]
- Standard
- Locating Feature [AGZF]
- One Direction
- Retainer Fabrication Method [AGYF]
- Machined
- Overall Outside Diameter [ADGA]
- 140.00 Millimeters Nominal
- Overall Width [ABMK]
- 26.0 Millimeters Nominal
- Special Features [FEAT]
- Pin Type Retainer
- Style Designator [STYL]
- Single Row, One-Direction Locating, One Lip Inner Ring, Two Lip Outer Ring, Separable
- Surface Finish [AGYE]
- Ground
Weapon Systems (WSDC) 3110-01-201-6950
DLA Procurement Analysis 3110-01-201-6950
- Last Stock Position:
- 875 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3110-01-201-6950
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-01-201-6950
Freight Information 3110-01-201-6950
3110-01-201-6950 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-201-6950 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-201-6950 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-201-6950 is not classified as a special type of cargo when transported by water. 3110-01-201-6950 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-01-201-6950
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 6.5" H x 6.5" W x 2.0" L
- --
- --
- --
- --
- 6.5" H x 6.5" W x 2.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 3110-01-201-6950 14 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A622F3958
- 18 Nov 2021
- Subscribe
- 318
- Subscribe
- Subscribe
- Subscribe
- SPE4A622F3958
- 18 Nov 2021
- Subscribe
- 318
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F292Y
- 15 Jul 2021
- Subscribe
- 511
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F292Y
- 15 Jul 2021
- Subscribe
- 511
- Subscribe
- Subscribe
- Subscribe
- SPE4A619V2451
- 02 Nov 2018
- Subscribe
- 643
- Subscribe
- Subscribe
- Subscribe
- SPE4A619V2142
- 30 Oct 2018
- Subscribe
- 425
- Subscribe
- Subscribe
- Subscribe
- SPE4A618V507K
- 12 Sep 2018
- Subscribe
- 360
- Subscribe
- Subscribe
- Subscribe
- SPE4A618V478QP00001
- 30 Aug 2018
- Subscribe
- 109
- Subscribe
- Subscribe
- Subscribe
- SPE4A618V299V
- 25 Jun 2018
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPE4A618V220B
- 07 Jun 2018
- Subscribe
- 186
- Subscribe
- Subscribe
- Subscribe
- SPE4A618V059Z
- 09 Apr 2018
- Subscribe
- 103
- Subscribe
- Subscribe
- Subscribe
- SPE4A615VK258
- 11 Aug 2015
- Subscribe
- 740
- Subscribe
- Subscribe
- Subscribe
- SPE4A614MC525
- 08 Apr 2014
- Subscribe
- 462
- Subscribe
- Subscribe
- Subscribe
- SPE4A614V4838
- 06 Dec 2013
- Subscribe
- 559
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 3110-01-201-6950 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
