3110-01-193-2926
Bearing Retaining Plate
3110011932926 011932926 3862363-1
A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT. View more Bearing Retaining Plate
May 2023
3
Marketplace 3110-01-193-2926
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-193-2926 1+ Documents (More...)
Updated Every Day 3110-01-193-2926 RQST NE Updated Every Day 3110-01-193-2926 RQST Updated Every Day
/fsg-31/fsc-3110/us 3110-01-193-2926 Bearing Retaining Plate 3110011932926 (Identification) 1/3 NSN
Restrictions 3110-01-193-2926
3110-01-193-2926 is a Bearing Retaining Plate that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-193-2926
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-193-2926
- US Air Force (FUGG)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- FUCX
Approved Sources 3110-01-193-2926
- Part Number
- Manufacturer
- Status
- 3862363-1
- Manufacturer
- 99193 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 3110-01-193-2926
- Characteristic
- Specifications
- FIIG
- Specifications
- A093A0
- End Item Identification [AGAV]
- B-1B Acft
- Body Diameter [ABPM]
- 2.810 Inches Minimum And 2.813 Inches Maximum
- Body Thickness [ADPR]
- 0.100 Inches Nominal
- Bolt Circle Hole Quantity [ADPM]
- 3
- Counterbore Depth [CWHX]
- 0.245 Inches Minimum And 0.255 Inches Maximum
- Counterbore Diameter [CWGF]
- 2.400 Inches Nominal

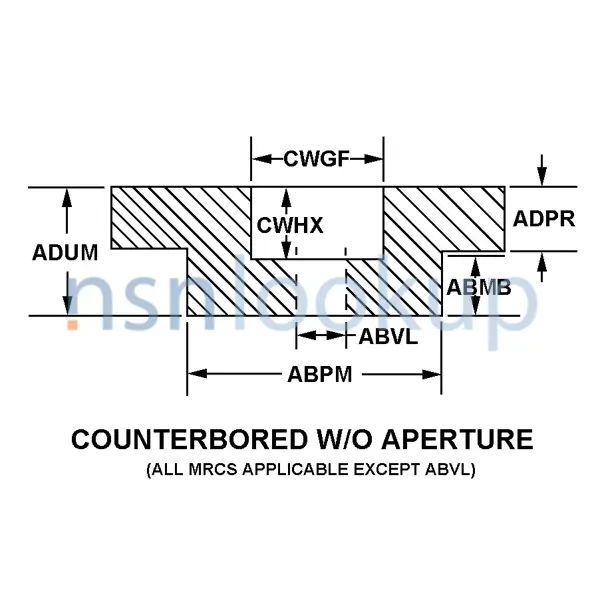

- Cross-Sectional Shape Style [AAGR]
- Counterbored W/O Aperture
- Material [MATT]
- Aluminum Alloy 356.0 Overall
- Minor Thickness [ABMB]
- 0.118 Inches Minimum And 0.122 Inches Maximum
- Mounting Bolt Circle Diameter [AFFL]
- 3.000 Inches Nominal
- Mounting Hole Arrangement Style [ADFU]
- Single Bolt Hole Circle
- Mounting Hole Diameter [ABTB]
- 0.497 Inches Nominal
- Mounting Hole Type [CWJW]
- Round, Unthreaded
- Outside Diameter [ABKV]
- 2.400 Inches Nominal
- Overall Thickness [ADUM]
- 0.363 Inches Minimum And 0.377 Inches Maximum
- Special Features [FEAT]
- There Are Five Other Holes;One Is 0.168 In. Min 0.175 In. Max Round And Located On Upper Right Of Diam 0.763 In. Above Center Line And 1.435 In. To Right Of Center Line;Other Four Holes Are 0.218 In. Min 0.226 In. Max;Starting At Top First Hole Is 0.497 In. To Right Of Center Line And 1.626 In. Above Center Line,Second Is 0.497 In. Below Center Line And 1.626 In. To Right Of Center Line,Third Hole Is 0.497 To Left Of Center Line And 1.626 In. Below Center Line,Fourth Hole Is 0.497 In. Above Center Line And 1.626 In. To Left Of Center Line
- Style Designator [STYL]
- Round
- Surface Treatment Document And Classification [STDC]
- Mil-A-8626 Type Ii Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Anodize Overall
Weapon Systems (WSDC) 3110-01-193-2926
DLA Procurement Analysis 3110-01-193-2926
Management Data 3110-01-193-2926
Similar Supply Items to 3110-01-193-2926
Freight Information 3110-01-193-2926
3110-01-193-2926 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 3110-01-193-2926 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 3110-01-193-2926 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 3110-01-193-2926 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 3110-01-193-2926 is not classified as a special type of cargo when transported by water. 3110-01-193-2926 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-01-193-2926
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
