3110-01-186-9354
Annular Ball Bearing
3110011869354 011869354 S538B1K35 905520-1
A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME. View more Annular Ball Bearing
November 2023
6
Marketplace 3110-01-186-9354
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-186-9354 5+ Documents (More...)
S538B1K35 BEARING,BALL,ANNULAR 24 EA NS Request Quotation 905520-1 BEARING,BALL,ANNULAR 24 EA NS Request
to View Vendor Details... 905520-1 BEARING 375 EA NS Request Quotation 905520-1 BEARING 38 EA NS Request
Annular Ball Bearing 3110011869354 011869354 Upgrade your Account Upgrade 3110-01-186-9354Annular
Ball Bearing3110011869354 011869354 S538B1K35 905520 Request Quotation 905520-1 BEARING 38 EA NS Request
6680008584818008584818 Account Upgrade 6680-00-858-4818Dual Bank Counter6680008584818 008584818520-1-905520-1
www.nsnlookup.com /fsg-66/fsc-6680/us 6680-00-858-4818 https//www.nsnlookup.com /fsg-31/fsc-3110/us 3110-01-186-9354
Approved Sources 1680-00-222-9212 Part NumberManufacturerStatusCV15-905520-1 80378 - Triumph Aerostructures
-53/fsc-5310/us 5310-01-594-9577 Flat Washer 5310015949577 015949577,13393-005 Vendor Details... 905520-1
Restrictions 3110-01-186-9354
3110-01-186-9354 is a Annular Ball Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-186-9354
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-186-9354
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Oct 1994
Approved Sources 3110-01-186-9354
- Part Number
- Manufacturer
- Status
- S538B1K35
- Manufacturer
- 83086 - New Hampshire Ball Bearings Inc (Active)
- Primary Buy
- Primary Buy
- 905520-1
- 40920 - Mpb Corp (Active)
- Primary Buy
- Primary Buy
- 905520-1
- 93835 - Parker-Hannifin Corp (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 3110-01-186-9354
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Alignment Type [AGZA]
- Rigid
- Bore Diameter [ABXV]
- 0.6248 Inches Minimum And 0.6250 Inches Maximum
- Bore Shape [AGZD]
- Straight
- Material [MATT]
- Steel Comp 440C Overall
- Outer Ring Width [AGVT]
- 0.2450 Inches Minimum And 0.2500 Inches Maximum
- Inner Ring Width [AGVU]
- 0.2785 Inches Minimum And 0.2810 Inches Maximum
- Internal Clearance [AKVV]
- 0.0003 Inches Minimum Radial And 0.0005 Inches Maximum Radial
- Load Direction [AGZC]
- Angular
- Material Document And Classification [MDCL]
- Ams 5630 Assn Std Single Material Response Overall
- Overall Outside Diameter [ADGA]
- 1.0620 Inches Minimum And 1.0625 Inches Maximum

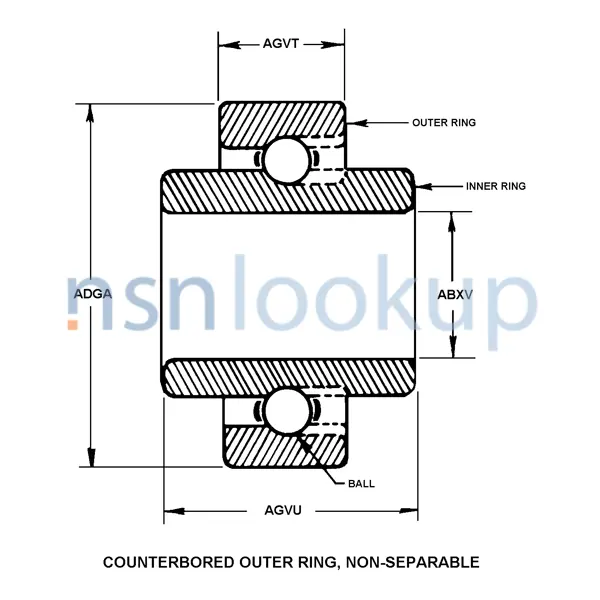

- Style Designator [STYL]
- Counterbored Outer Ring, Non-Separable
- Surface Finish [AGYE]
- Ground
Weapon Systems (WSDC) 3110-01-186-9354
DLA Procurement Analysis 3110-01-186-9354
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3110-01-186-9354
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-01-186-9354
Freight Information 3110-01-186-9354
3110-01-186-9354 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-186-9354 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-186-9354 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-186-9354 is not classified as a special type of cargo when transported by water. 3110-01-186-9354 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
