3110-01-176-2483
Tapered Roller Bearing
3110011762483 011762483 L44600LB ASSEMBLY 90058 45031 051225
A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST. View more Tapered Roller Bearing
June 2023
5
Marketplace 3110-01-176-2483
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-176-2483 5+ Documents (More...)
BUY NE FedMall Updated Every Day L44600LB ASSEMBLY 90058 RQST NE Updated Every Day 45031 RQST NE Updated
/fsg-31/fsc-3110/us 3110-01-176-2483 Tapered Roller Bearing 3110011762483 L44600LB ASSEMBLY 9005805122545031
https//www.nsnlookup.com /fsg-31/fsc-3110/us 3110-01-176-2483 Tapered Roller Bearing 3110011762483 Upgrade
3110-01-176-2483Tapered Roller Bearing3110011762483 011762483 L44600LB ASSEMBLY 90058 051225 45031 3110
www.nsnlookup.com /fsg-43/fsc-4320/us 4320-01-511-5826 Spring Loaded Shaft Seal Assembly 015115826 051225
www.nsnlookup.com /fsg-43/fsc-4320/us 4320- 01-511-5826 Spring Loaded Shaft Seal Assembly 015115826 051225
011762483 L44600LB ASSEMBLY 90058 051225 www.nsnlookup.com /fsg-43/fsc-4320/us 4320-01-511-5826 Spring
Loaded Shaft Seal Assembly 015115826 051225 https//www.nsnlookup.com /fsg-51/fsc-5120/us 5120-00-113
5120-00-113-3527 Socket Wrench Screwdriver Attachment Shaft Seal Assembly4320015115826 015115826 051225
Account Upgrade 5905-01-565-4961Film Fixed Resistor5905015654961 015654961MODEL 5308 100OHMSA3RW26 051225
Restrictions 3110-01-176-2483
3110-01-176-2483 is a Tapered Roller Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-176-2483
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-176-2483
- US Air Force (FGGG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- FGCX
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Supplementary Collaborators:
- HD
Approved Sources 3110-01-176-2483
- Part Number
- Manufacturer
- Status
- L44600LB ASSEMBLY 90058
- Manufacturer
- 60038 - The Timken Corporation (Active)
- Primary Buy
- Primary Buy
- 45031
- 60038 - The Timken Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 051225
- 06889 - Big Joe Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3110-01-176-2483
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Alignment Type [AGZA]
- Rigid
- Backface Corner Radius [AGWU]
- 0.0500 Inches Nominal
- Bearing Seal Type [AGYW]
- Lips Turned Inwardly
- Bore Diameter [ABXV]
- 1.0000 Inches Nominal
- Cone Width [AGWX]
- 0.5800 Inches Nominal
- Cup Width [AGWY]
- 0.4200 Inches Nominal
- Material [MATT]
- Steel Overall
- Retainer Fabrication Method [AGYF]
- Pressed
- Seal Quantity [AGYJ]
- 2
- Overall Outside Diameter [ADGA]
- 1.9800 Inches Nominal
- Special Features [FEAT]
- Furnished W/ Two O-Rings
- Standout Width [AGWV]
- 0.1400 Inches Nominal

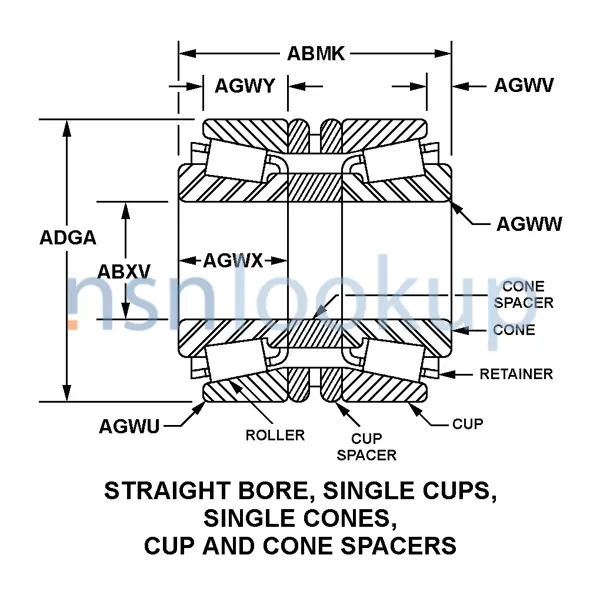

- Style Designator [STYL]
- Straight Bore, Single Cups, Single Cones Cup And Cone Spacers
DLA Procurement Analysis 3110-01-176-2483
Management Data 3110-01-176-2483
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-01-176-2483
Freight Information 3110-01-176-2483
3110-01-176-2483 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-176-2483 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-176-2483 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-176-2483 is not classified as a special type of cargo when transported by water. 3110-01-176-2483 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-01-176-2483
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 3110-01-176-2483 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
