3110-01-175-0537
Thrust Roller Bearing
3110011750537 011750537 DT-619
An antifriction bearing having a roller rolling element, designed to resist axial thrust, or to support an axial load. View more Thrust Roller Bearing
May 2023
3
Marketplace 3110-01-175-0537
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-175-0537 1+ Documents (More...)
Updated Every Day 3110-01-175-0537 RQST NE Updated Every Day 3110-01-175-0537 RQST Updated Every Day
/fsg-31/fsc-3110/us 3110-01-175-0537 Thrust Roller Bearing 3110011750537011750537 DT-619 BEARING 5 EA
Restrictions 3110-01-175-0537
3110-01-175-0537 is a Thrust Roller Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-175-0537
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-175-0537
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTHD
Approved Sources 3110-01-175-0537
- Part Number
- Manufacturer
- Status
- DT-619
- Manufacturer
- 76474 - Emerson Power Transmission (Active)
- Primary Buy
- Primary Buy
- DT-619
- 51600 - Regal Beloit America, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3110-01-175-0537
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Material [MATT]
- Steel Overall

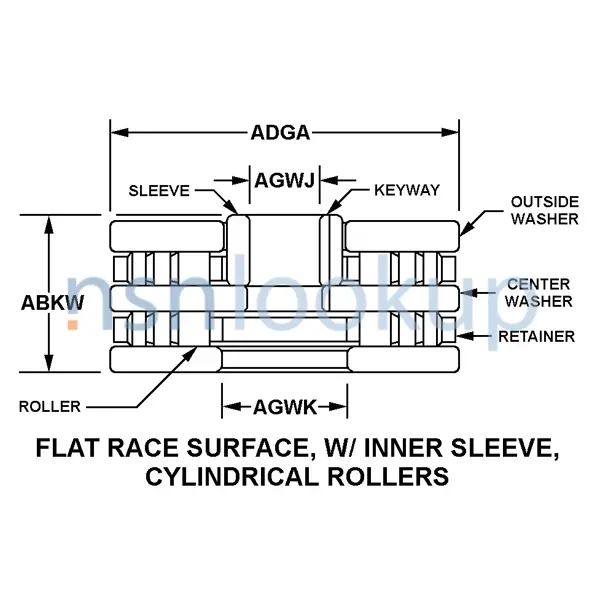

- Style Designator [STYL]
- Flat Race Surface, W/ Inner Sleeve, Cylindrical Rollers
- Overall Height [ABKW]
- 2.5000 Inches Nominal
- Overall Outside Diameter [ADGA]
- 3.8750 Inches Nominal
- Bore Smallest Diameter [AGWJ]
- 1.7500 Inches Nominal
- Largest Bore Diameter [AGWK]
- 2.4400 Inches Nominal
- Standard Tolerance Designation [CTFZ]
- Afbma Std Tolerance For Thrust Bearings
- Surface Finish [AGYE]
- Ground
- Retainer Fabrication Method [AGYF]
- Pressed
- Alignment Type [AGZA]
- Rigid
- Thrust Directional Capability Designation [AGZQ]
- Double
- Special Features [FEAT]
- 1.0000 In. High Inner Sleeve With One Keyway 0.0938 In. Ddep,0.3750 In. Wide
DLA Procurement Analysis 3110-01-175-0537
Management Data 3110-01-175-0537
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-01-175-0537
Freight Information 3110-01-175-0537
3110-01-175-0537 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-175-0537 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-175-0537 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-175-0537 is not classified as a special type of cargo when transported by water. 3110-01-175-0537 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-01-175-0537
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 3110-01-175-0537 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
