3110-01-160-9078
Cylindrical Roller Bearing
3110011609078 011609078 9733M28P04 07482 9733M28P01 9733M28P04 AAV9109RW02-104
A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME. View more Cylindrical Roller Bearing
November 2023
7
Marketplace 3110-01-160-9078
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-160-9078 1+ Documents (More...)
BUY NE FedMall Updated Every Day 9733M28P01 RQST NE Updated Every Day AAV9109RW02-104 RQST NE Updated
RQST NE Updated Every Day AAV9109RW02-104 RQST NE Updated //www.nsnlookup.com /fsg-31/fsc-3110/us 3110
Restrictions 3110-01-160-9078
3110-01-160-9078 is a Cylindrical Roller Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-160-9078
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-160-9078
- US Air Force (FXGG)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- FXCX
Approved Sources 3110-01-160-9078
- Part Number
- Manufacturer
- Status
- 9733M28P04
- Manufacturer
- 07482 - General Electric Company (Active)
- Source Control
- Source Control
- 9733M28P04 07482
- 07482 - General Electric Company (Active)
- Primary Buy
- Primary Buy
- 9733M28P01
- 38443 - Skf Usa Inc. (Active)
- Primary Buy
- Primary Buy
- 9733M28P04
- 78118 - Mpb Corporation (Active)
- Primary Buy
- Primary Buy
- AAV9109RW02-104
- 21335 - Timken Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3110-01-160-9078
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- End Item Identification [AGAV]
- Acft Eng F-101
- Bore Diameter [ABXV]
- 1.7715 Inches Minimum And 1.7717 Inches Maximum
- Bore Shape [AGZD]
- Straight
- Material [MATT]
- Steel Comp 4340 Cage
- Material [MATT]
- Steel Comp M50 Inner Ring
- Material [MATT]
- Steel Comp M50 Outer Ring
- Material [MATT]
- Steel Comp M50 Roller
- Outer Ring Width [AGVT]
- 0.6600 Inches Minimum And 0.6650 Inches Maximum
- Inner Ring Width [AGVU]
- 0.7000 Inches Minimum And 0.7050 Inches Maximum
- Internal Clearance [AKVV]
- 0.0015 Inches Bias Megawatts And 0.0021 Inches Angular Megawatts
- Locating Feature [AGZF]
- Nonlocating
- Retainer Fabrication Method [AGYF]
- Machined
- Overall Outside Diameter [ADGA]
- 2.9525 Inches Minimum And 2.9528 Inches Maximum
- Special Features [FEAT]
- Silver Plate Cage 0.0005-0.0015 Thk Per Ams 2412
- Standard Tolerance Designation [CTFZ]
- Rbec No.5
- Style Designator [STYL]

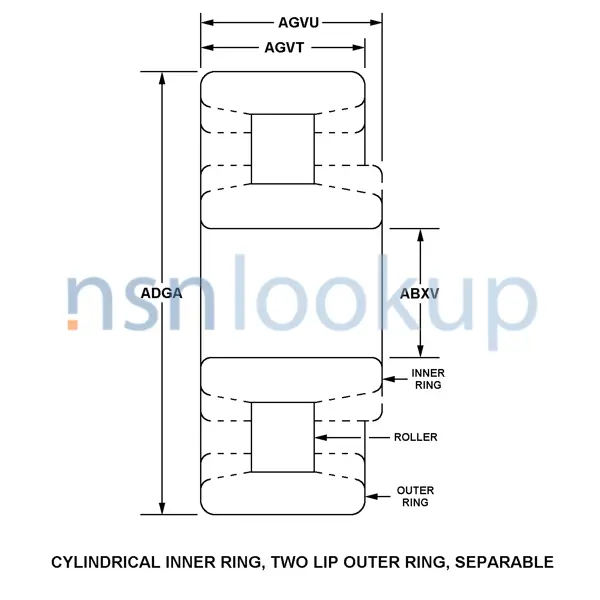

- Cylindrical Inner Ring, Two Lip Outer Ring, Separable
- Surface Finish [AGYE]
- Ground
Weapon Systems (WSDC) 3110-01-160-9078
DLA Procurement Analysis 3110-01-160-9078
- Last Stock Position:
- 64 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3110-01-160-9078
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- JF
- F-101 ENGINE
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 3110-01-160-9078
Freight Information 3110-01-160-9078
3110-01-160-9078 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-160-9078 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 3110-01-160-9078 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-160-9078 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-160-9078 is not classified as a special type of cargo when transported by water. 3110-01-160-9078 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-01-160-9078
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 3110-01-160-9078 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
