3110-01-160-9077
Cylindrical Roller Bearing
3110011609077 011609077 9733M27P04 AAV209RW1-2-101
A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME. View more Cylindrical Roller Bearing
November 2023
6
Marketplace 3110-01-160-9077
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-160-9077 1+ Documents (More...)
United States (US) 4. 3110-01-160-9077 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day AAV209RW1-2-101 RQST NE Updated Every Day 3110-01-160-9077 RQST
Restrictions 3110-01-160-9077
3110-01-160-9077 is a Cylindrical Roller Bearing that is an aviation critical safety item or flight safety critical aircraft part. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-160-9077
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-160-9077
- US Air Force (FXGG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FXCX
Approved Sources 3110-01-160-9077
- Part Number
- Manufacturer
- Status
- 9733M27P04
- Manufacturer
- 07482 - General Electric Company (Active)
- Source Control
- Source Control
- 9733M27P04
- 78118 - Mpb Corporation (Active)
- Primary Buy
- Primary Buy
- AAV209RW1-2-101
- 21335 - Timken Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3110-01-160-9077
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- End Item Identification [AGAV]
- Acft Eng F-101
- Bore Diameter [ABXV]
- 1.7715 Inches Minimum And 1.7717 Inches Maximum
- Bore Shape [AGZD]
- Straight
- Material [MATT]
- Steel Comp 4340 Cage
- Material [MATT]
- Steel Comp M50 Inner Ring
- Material [MATT]
- Steel Comp M50 Outer Ring
- Material [MATT]
- Steel Comp M50 Roller
- Outer Ring Width [AGVT]
- 0.5500 Inches Minimum And 0.5550 Inches Maximum
- Inner Ring Width [AGVU]
- 0.6249 Inches Minimum And 0.6299 Inches Maximum
- Internal Clearance [AKVV]
- 0.0015 Inches Minimum Radial And 0.0021 Inches Maximum Radial
- Locating Feature [AGZF]
- Nonlocating
- Retainer Fabrication Method [AGYF]
- Machined
- Overall Outside Diameter [ADGA]
- 3.1800 Inches Minimum And 3.1803 Inches Maximum
- Special Features [FEAT]
- Silver Plate Cage 0.0005-0.0015 Thk Per Ams-2412
- Standard Tolerance Designation [CTFZ]
- Rbec No.5

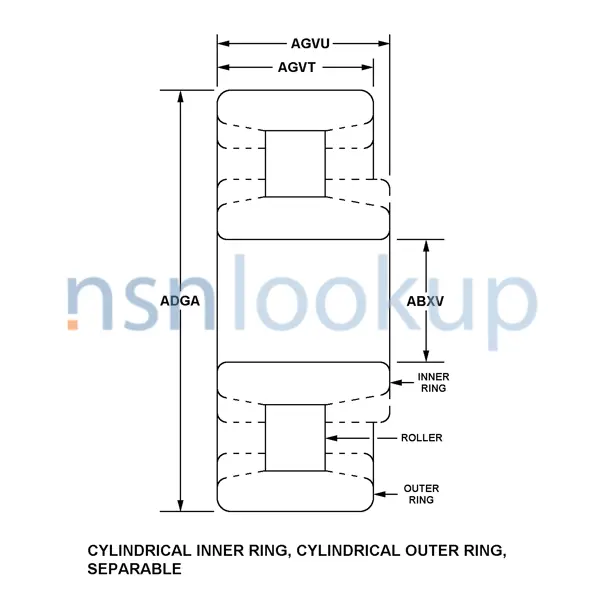

- Style Designator [STYL]
- Cylindrical Inner Ring, Cylindrical Outer Ring, Separable
- Surface Finish [AGYE]
- Ground
Weapon Systems (WSDC) 3110-01-160-9077
DLA Procurement Analysis 3110-01-160-9077
- Last Stock Position:
- 51 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3110-01-160-9077
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- JF
- F-101 ENGINE
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 3110-01-160-9077
Freight Information 3110-01-160-9077
3110-01-160-9077 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-160-9077 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 3110-01-160-9077 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-160-9077 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-160-9077 is not classified as a special type of cargo when transported by water. 3110-01-160-9077 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-01-160-9077
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.1" H x 4.1" W x 1.5" L
- --
- --
- --
- --
- 4.1" H x 4.1" W x 1.5" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 3110-01-160-9077 1 Records
Contracting Technical Data File (CTDF) 3110-01-160-9077 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
