3110-01-140-6566
Bearing Retaining Plate
3110011406566 011406566 12310189
A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT. View more Bearing Retaining Plate
May 2023
2
Marketplace 3110-01-140-6566
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-140-6566 1+ Documents (More...)
BUY NE FedMall Updated Every Day 3110-01-140-6566 RQST NE Updated Every Day 3110-01-140-6566 RQST
Updated Every Day 3110-01-140-6566 RQST NE Related Documents 3110-01-140-6566 1+ Documents ( More...
Restrictions 3110-01-140-6566
3110-01-140-6566 is a Bearing Retaining Plate that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-140-6566
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-140-6566
- US Army (A919)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZ
Approved Sources 3110-01-140-6566
- Part Number
- Manufacturer
- Status
- 12310189
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 3110-01-140-6566
- Characteristic
- Specifications
- FIIG
- Specifications
- A093A0
- Material [MATT]
- Aluminum Alloy 6061 Bearing
- Style Designator [STYL]
- Round
- Outside Diameter [ABKV]
- 6.249 Inches Nominal

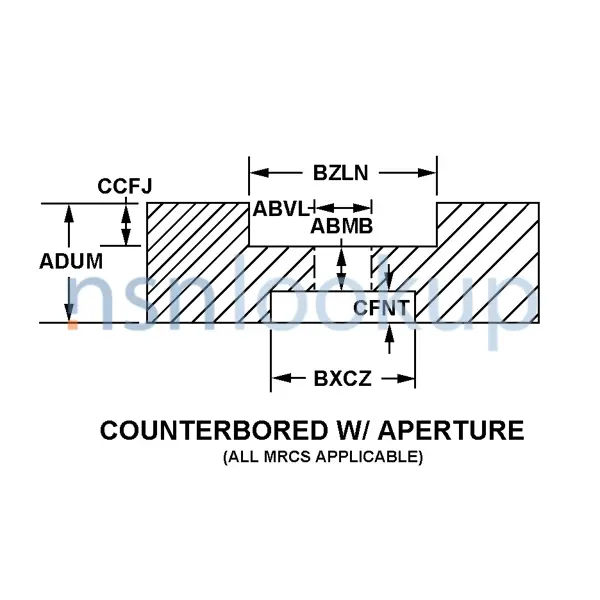

- Cross-Sectional Shape Style [AAGR]
- Counterbored W/Aperture
- Minor Thickness [ABMB]
- 0.110 Inches Nominal
- Aperture Diameter [ABVL]
- 4.539 Inches Nominal
- Overall Thickness [ADUM]
- 0.310 Inches Nominal
- First Counterbore Diameter [BXCZ]
- 4.729 Inches Nominal
- Second Counterbore Diameter [BZLN]
- 4.729 Inches Nominal
- Second Counterbore Depth [CCFJ]
- 0.136 Inches Nominal
- First Counterbore Depth [CFNT]
- 0.100 Inches Nominal
- Mounting Hole Type [CWJW]
- Round, Unthreaded, Counterbored
- Mounting Hole Diameter [ABTB]
- 0.211 Inches Nominal
- Counterbore Depth [AAWZ]
- 0.150 Inches Nominal
- Counterbore Diameter [AAWY]
- 0.400 Inches Nominal
- Mounting Hole Arrangement Style [ADFU]
- Single Bolt Hole Circle
- Bolt Circle Hole Quantity [ADPM]
- 8
- Mounting Bolt Circle Diameter [AFFL]
- 5.062 Inches Nominal
- End Item Identification [AGAV]
- Fire Support Team Vehicle Xm981
Weapon Systems (WSDC) 3110-01-140-6566
DLA Procurement Analysis 3110-01-140-6566
Management Data 3110-01-140-6566
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 3110-01-140-6566
Freight Information 3110-01-140-6566
3110-01-140-6566 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-140-6566 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 3110-01-140-6566 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-140-6566 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-140-6566 is not classified as a special type of cargo when transported by water. 3110-01-140-6566 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3110-01-140-6566 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
