3110-01-115-5401
Duplex Ball Bearing
3110011155401 011155401 2MM9308WOCRVDU HADR008-67 R1908B11C2K27-4 901858-1C
Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting. View more Duplex Ball Bearing
May 2023
2
Marketplace 3110-01-115-5401
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-115-5401 1+ Documents (More...)
BEARING,BALL,DUPLEX 4 PR NS Request Quotation FedMall Updated Every 15 Minutes 3110-01-115-5401 BUY
NE FedMall Updated Every Day 2MM9308WOCRVDU RQST NE Updated Every Day 3110-01-115-5401 RQST NE Updated
Restrictions 3110-01-115-5401
3110-01-115-5401 is a Duplex Ball Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-115-5401
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-115-5401
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- KE
Approved Sources 3110-01-115-5401
- Part Number
- Manufacturer
- Status
- 2MM9308WOCRVDU
- Manufacturer
- 21335 - Timken Co (Active)
- Incomplete Reference
- Incomplete Reference
- HADR008-67
- 78118 - Mpb Corporation (Active)
- Secondary Buy
- Secondary Buy
- R1908B11C2K27-4
- 83086 - New Hampshire Ball Bearings Inc (Active)
- Secondary Buy
- Secondary Buy
- 901858-1C
- 82577 - Raytheon Company (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 3110-01-115-5401
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Material [MATT]
- Steel Ball
- Material [MATT]
- Steel Inner Ring
- Material [MATT]
- Steel Outer Ring
- Material [MATT]
- Plastic Retainer

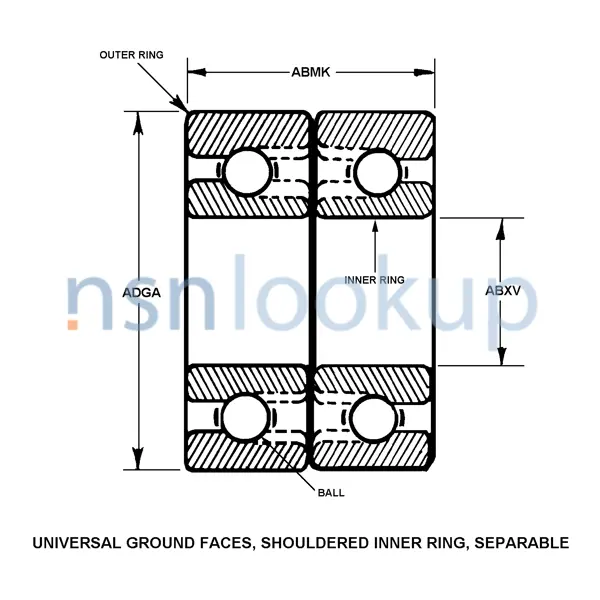

- Style Designator [STYL]
- Universal Ground Faces, Shouldered Inner Ring, Separable
- Overall Width [ABMK]
- 24.00 Millimeters Nominal
- Bore Diameter [ABXV]
- 40.00 Millimeters Nominal
- Overall Outside Diameter [ADGA]
- 62.00 Millimeters Nominal
- Lubrication Material [ADZG]
- Lubricating Oil
- Standard Tolerance Designation [CTFZ]
- Abec No.7
- Surface Finish [AGYE]
- Ground
- Retainer Fabrication Method [AGYF]
- Machined
- Load Direction [AGZC]
- Angular
- Internal Fit-Up Designation [AGZH]
- Standard
- Contact Angle [CTHY]
- 18.0 Degrees Nominal
- Features Provided [CBBL]
- Extra Light Duty Series
- Special Features [FEAT]
- Retainer Vacuum Impregnated With Oil
DLA Procurement Analysis 3110-01-115-5401
Management Data 3110-01-115-5401
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-01-115-5401
Freight Information 3110-01-115-5401
3110-01-115-5401 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-115-5401 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 3110-01-115-5401 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-115-5401 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-115-5401 is not classified as a special type of cargo when transported by water. 3110-01-115-5401 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-01-115-5401
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 3110-01-115-5401 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
