3110-01-070-7314
Linear Motion Ball Bearing
3110010707314 010707314 772520-4 SUPER-4 SM-C-804661-1
A cylindrical device, containing three or more oblong ball circuits complete with a retainer to guide the balls in their proper path, specifically designed for use on sliding linear motion shafts to minimize friction and wear. View more Linear Motion Ball Bearing
June 2023
14
Marketplace 3110-01-070-7314
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-070-7314 3+ Documents (More...)
SUPER-4 BEARING,BALL,LINEAR MOTION 22 EA NS Request Quotation Subscribe to View Vendor Details...
NE Updated Every Day 3110-01-070-7314 RQST Updated Every Day 3110-01-070-7314 RQST NE Related Documents
Linear Motion Ball Bearing 3110010707314 day Upgrade your Account Upgrade 3110-01-070-7314Linear
Motion Ball Bearing3110010707314 010707314 772520 //www.nsnlookup.com /fsg-31/fsc-3110/us 3110-01-070
Linear Motion Ball Bearing 3110010707314 Account Upgrade 3110-01-070-7314Linear Motion Ball Bearing3110010707314
010707314 772520-4 SUPER-4 SM-C-804661 /fsg-31/fsc-3110/us 3110-01-070-7314 Linear Motion Ball Bearing
Restrictions 3110-01-070-7314
3110-01-070-7314 is a Linear Motion Ball Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-070-7314
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-070-7314
- US Army (A919)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZCLBFBD
- US Air Force (FGGG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FGCX
- US Marine Corps (MC41)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Oct 1998
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 May 2006
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Oct 2007
Approved Sources 3110-01-070-7314
- Part Number
- Manufacturer
- Status
- 772520-4
- Manufacturer
- 96214 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- SUPER-4
- 96881 - Thomson Industries Inc (Active)
- Primary Buy
- Primary Buy
- SM-C-804661-1
- 80063 - Us Army Communications & Electronics (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 3110-01-070-7314
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Alignment Type [AGZA]
- Self-Aligning
- Bearing Ball Quantity [AGZT]
- 4
- Bore Shape [AGZD]
- Straight
- Distance Between Retaining Rings [CTMR]
- 0.4270 Inches Minimum And 0.4470 Inches Maximum
- Features Provided [CBBL]
- Snap Ring-Groove Mounting
- Material [MATT]
- Plastic Acetal Ball Circuit
- Material [MATT]
- Plastic Acetal Outer Ring
- Material [MATT]
- Steel Ball
- Material [MATT]
- Steel Comp 8620 Side Plate
- Self-Alignment Location [AHAW]
- Internal
- Overall Length [ABHP]
- 0.7350 Inches Minimum And 0.7500 Inches Maximum
- Overall Outside Diameter [ADGA]
- 0.5000 Inches Minimum And 0.5005 Inches Maximum
- Working Bore Diameter [CTMM]
- 0.2495 Inches Minimum And 0.2505 Inches Maximum

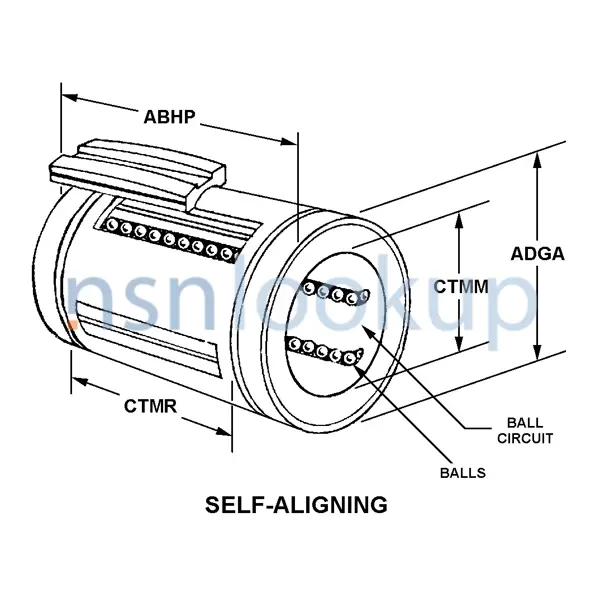

- Style Designator [STYL]
- Self-Aligning
- Surface Finish [AGYE]
- Ground
Weapon Systems (WSDC) 3110-01-070-7314
DLA Procurement Analysis 3110-01-070-7314
Management Data 3110-01-070-7314
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 3110-01-070-7314
Freight Information 3110-01-070-7314
3110-01-070-7314 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 3110-01-070-7314 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 3110-01-070-7314 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-070-7314 is not classified as a special type of cargo when transported by water. 3110-01-070-7314 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-01-070-7314
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
