3110-01-034-2607

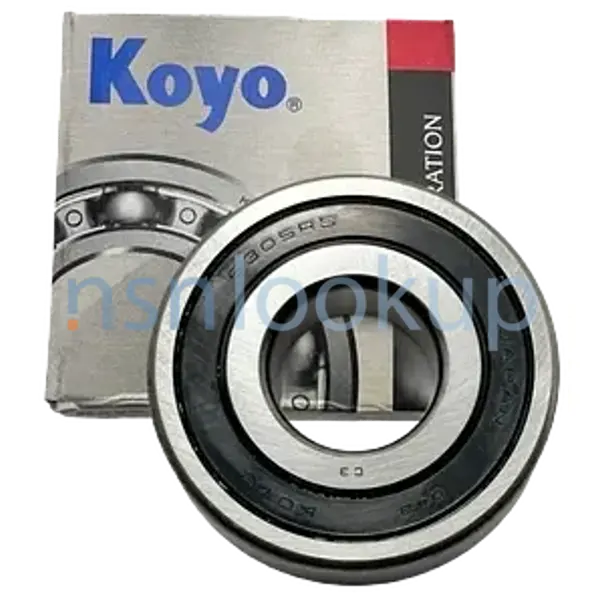

Annular Ball Bearing
3110010342607 010342607 AA59584 AA59584-103JECH N9011 G57-187 FF-B-171/4 77503NR1RV FFB171/04J03E3C
A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME. View more Annular Ball Bearing
June 2023
21
Marketplace 3110-01-034-2607
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-034-2607 5+ Documents (More...)
Documents 3110-01-036-7701 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-31/fsc-3110/us 3110-01-034-2607
Annular Ball Bearing 3110010342607 010342607 AssyUOMTechnical DocumentQuantative ExpressionUS Marine
-100JAKT FF-B-171/4 12Z10150-2 3200MR5CJ FFB171/04J00A6E A cylindrical device in which the inner or outer
377053Z A cylindrical device in which -118JCBE R35J 77218 218WDD 1218MFF R6G 218MFF FF-B-171/4 377053Z
-107JKBB FF-B AA59584-107JKBB FF-B-171 /4 FF-B-171 477507X1FC FFB171/04J07K2A A cylindrical 001448928
001828076 35BC02JDDN AA59584-107JKBB FF-B-171 /4 FF-B-171 477507X1FC FFB171/04J07K2A A cylindrical 001448928
-109YALT FFB171/04Y09A5E FF-B-171/4 A cylindrical device in which the inner or outer ring turns upon
377053Z A cylindrical device in which AA-59584-118JCBE R35J 77218 218WDD 1218MFF R6G 218MFF FF-B-171/4
-103JCBB FFB171/04J03C2A FF-B-171/4 A cylindrical device in which the inner or outer ring turns upon
device in which AA-59584 AA-59584 -118JCBE R35J 77218 218WDD 1218MFF R6G 218MFF FF-B-171/4 377053Z A
Restrictions 3110-01-034-2607
3110-01-034-2607 is a Annular Ball Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-01-034-2607
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-034-2607
- US Marine Corps (MC41)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Supplementary Receivers:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 3110-01-034-2607
- Part Number
- Manufacturer
- Status
- AA59584-103JECH
- Manufacturer
- 58536 - Federal Commercial Item Description (Active)
- Definitive Standard
- Definitive Standard
- AA59584
- 58536 - Federal Commercial Item Description (Active)
- Incomplete Standard
- Incomplete Standard
- N9011
- 76761 - C E Niehoff & Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- G57-187
- 76761 - C E Niehoff & Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- FF-B-171/4
- 81348 - Federal Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 77503NR1RV
- 43334 - General Motors Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- FFB171/04J03E3C
- 81348 - Federal Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3110-01-034-2607
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Bearing Seal Type [AGYW]
- Lips Turned Inwardly
- Bore Diameter [ABXV]
- 0.6690 Inches Minimum And 0.6693 Inches Maximum
- Bore Shape [AGZD]
- Straight
- Material [MATT]
- Steel Ball
- Material [MATT]
- Rubber Synthetic Seal
- Material [MATT]
- Steel Inner Ring
- Material [MATT]
- Steel Outer Ring
- Material [MATT]
- Steel Retainer
- Internal Clearance [AKVV]
- 0.0007 Inches Minimum Radial And 0.0013 Inches Maximum Radial
- Internal Fit-Up Designation [AGZH]
- Standard
- Load Direction [AGZC]
- Radial
- Lubrication Material [ADZG]
- Grease
- Retainer Fabrication Method [AGYF]
- Pressed
- Seal Quantity [AGYJ]
- 2
- Overall Outside Diameter [ADGA]
- 1.5743 Inches Minimum And 1.5748 Inches Maximum
- Overall Width [ABMK]
- 0.4674 Inches Minimum And 0.4724 Inches Maximum
- Style Designator [STYL]
- Non-Loading Groove, Non-Separable
- Surface Finish [AGYE]
- Ground
Weapon Systems (WSDC) 3110-01-034-2607
DLA Procurement Analysis 3110-01-034-2607
Management Data 3110-01-034-2607
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 3110-01-036-7701
- 4
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 0
- Non-combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- T
- Maintenance Float Secondary Non-depot Reparables
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
NATO Stock Numbers Related to 3110-01-034-2607
Freight Information 3110-01-034-2607
3110-01-034-2607 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-034-2607 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-034-2607 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-034-2607 is not classified as a special type of cargo when transported by water. 3110-01-034-2607 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-01-034-2607
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 3110-01-034-2607 2 Records
Contracting Technical Data File (CTDF) 3110-01-034-2607 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
