3110-01-028-5854
Cylindrical Roller Bearing
3110010285854 010285854 NN3017-D-K-TVP-SP XL SKFNN3017K NN3017.K 2895028-1
A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME. View more Cylindrical Roller Bearing
November 2023
7
Marketplace 3110-01-028-5854
Request a Quotation from participating marketplace vendors
Related Documents 3110-01-028-5854 3+ Documents (More...)
BUY NE FedMall Updated Every Day NN3017-D-K-TVP-SP XL RQST NE Updated Every Day NN3017.K RQST NE
/fsg-31/fsc-3110/us 3110-01-028-5854 Cylindrical Roller Bearing 3110010285854 NN3017-D-K-TVP-SP XLSKFNN3017KNN3017
/fsg-51/fsc-5120/de
Cylindrical Roller Bearing 3110010285854 028-5854Cylindrical Roller Bearing3110010285854 010285854
NN3017-D-K-TVP-SP XL SKFNN3017K NN3017.K 2895028 D-K-TVP-SP XL RQST NE Updated Every Day NN3017.K RQST
NN3017-D-K-TVP-SP XL SKFNN3017K NN3017.K 2895028 2 ) Canceled/ Restrictions 3110-01-028-9511 DEMIL:
Restrictions 3110-01-028-5854
3110-01-028-5854 is a Cylindrical Roller Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3110-01-028-5854
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-01-028-5854
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 May 1997
Approved Sources 3110-01-028-5854
- Part Number
- Manufacturer
- Status
- NN3017-D-K-TVP-SP XL
- Manufacturer
- 43991 - Fag Bearings Corporation (Active)
- Primary Buy
- Primary Buy
- SKFNN3017K
- AD54N - Skf Sverige Aktiebolag (Active)
- Secondary Buy
- Secondary Buy
- NN3017.K
- 43991 - Fag Bearings Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2895028-1
- 10001 - Navair And Navsea Managed Original (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- SKFNN3017K
- S0515 - Skf Sverige Ab (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3110-01-028-5854
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Material [MATT]
- Steel Overall
- Style Designator [STYL]

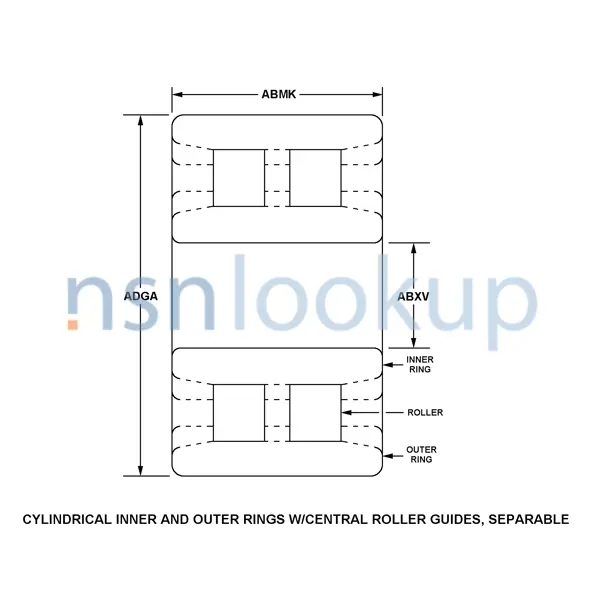

- Cylindrical Inner And Outer Rings W/Central Roller Guides, Separable
- Overall Width [ABMK]
- 34.0 Millimeters Nominal
- Bore Diameter [ABXV]
- 85.0 Millimeters Nominal
- Overall Outside Diameter [ADGA]
- 130.0 Millimeters Nominal
- Standard Tolerance Designation [CTFZ]
- Abec No.5
- Bore Shape [AGZD]
- Standard Taper
- Surface Finish [AGYE]
- Ground
- Retainer Fabrication Method [AGYF]
- Machined
- Locating Feature [AGZF]
- Nonlocating
- Internal Fit-Up Designation [AGZH]
- Standard
Weapon Systems (WSDC) 3110-01-028-5854
DLA Procurement Analysis 3110-01-028-5854
- Last Stock Position:
- 10 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3110-01-028-5854
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Sep 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Mar 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-01-028-5854
Freight Information 3110-01-028-5854
3110-01-028-5854 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-01-028-5854 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-01-028-5854 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-01-028-5854 is not classified as a special type of cargo when transported by water. 3110-01-028-5854 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3110-01-028-5854 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
