3110-00-917-8978
Thrust Ball Bearing
3110009178978 009178978 A1851T
An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT. View more Thrust Ball Bearing
January 2023
25
Marketplace 3110-00-917-8978
Request a Quotation from participating marketplace vendors
Related Documents 3110-00-917-8978 1+ Documents (More...)
United States (US) 4. 3110-00-917-8978 Marketplace Restrictions Approved Sources Datasheet Management
A1851T BEARING,BALL,THRUST 99 EA NS Request Quotation Updated Every Day 3110-00-917-8978 RQST NE Updated
Restrictions 3110-00-917-8978
3110-00-917-8978 is a Thrust Ball Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-00-917-8978
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-00-917-8978
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Argentina (YF01)
- Effective Date:
- 1 Sep 2015
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3110-00-917-8978
- Part Number
- Manufacturer
- Status
- A1851T
- Manufacturer
- 24692 - Hartzell Propeller Llc (Active)
- Primary Buy
- Primary Buy
- A1851T
- FA1D6 - Technic Aviation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3110-00-917-8978
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Alignment Type [AGZA]
- Rigid
- Bore Smallest Diameter [AGWJ]
- 2.7950 Inches Minimum And 2.8050 Inches Maximum
- Material [MATT]
- Steel Overall
- Largest Bore Diameter [AGWK]
- 2.8700 Inches Minimum And 2.8800 Inches Maximum
- Largest Outside Diameter [AGWM]
- 4.1860 Inches Minimum And 4.1870 Inches Maximum
- Material Document And Classification [MDCL]
- Fed-Std-66 Fed Std Single Material Response Overall
- Smallest Outside Diameter [AGWL]
- 3.9800 Inches Minimum And 3.9810 Inches Maximum
- Overall Height [ABKW]
- 1.0570 Inches Minimum And 1.0670 Inches Maximum
- Special Features [FEAT]
- Id And Od Fractured On Centerline And Notched W/60 Deg Angle

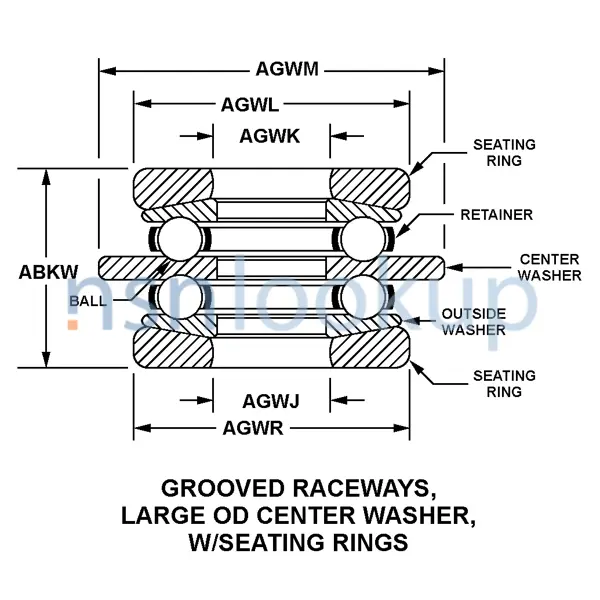

- Style Designator [STYL]
- Grooved Raceways, Large Od Center Washer, W/Seating Rings
- Surface Finish [AGYE]
- Ground
- Thrust Directional Capability Designation [AGZQ]
- Single
Similar Supply Items to 3110-00-917-8978
Freight Information 3110-00-917-8978
3110-00-917-8978 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-00-917-8978 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 3110-00-917-8978 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-00-917-8978 is not classified as a special type of cargo when transported by water. 3110-00-917-8978 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-00-917-8978
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 4.0" H x 4.0" W x 1.0" L
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- 8.0" H x 8.0" W x 4.0" L
- --
- --
- --
- Any Suitable Process
- 8.0" H x 8.0" W x 4.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 2, Corrosion Preventive, Solvent Cutback, Cold Application, Soft Film
- MIL-PRF-121, Greaseproof, Waterproof Barrier
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- Special requirement – See specific instructions or drawings provided
- No special marking
- MIL-PRF-121, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
