3110-00-821-5094
Bearing Retaining Plate
3110008215094 008215094 11687114 717111-3
A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT. View more Bearing Retaining Plate
May 2023
4
Marketplace 3110-00-821-5094
Request a Quotation from participating marketplace vendors
Related Documents 3110-00-821-5094 2+ Documents (More...)
(Identification) 1/3 NSN 3110-00-821-5094 (Identification) 2/3 NSN 3110-00-821-5094 (Identification
RQST NE Updated Every Day 3110-00-821-5094 RQST Updated Every Day 3110-00-821-5094 RQST NE Related Documents
Bearing Retaining Plate 3110008215094 Upgrade your Account Upgrade 3110-00-821-5094Bearing Retaining
Plate3110008215094 008215094 11687114 717111 Day 3110-00-821-5094 RQST NE Related Documents https//www.nsnlookup.com
Restrictions 3110-00-821-5094
3110-00-821-5094 is a Bearing Retaining Plate that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-00-821-5094
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-00-821-5094
- US Army (A919)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- A180
- Supplementary Receivers:
- CN
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3110-00-821-5094
- Part Number
- Manufacturer
- Status
- 11687114
- Manufacturer
- 19204 - Army, United States Department Of (Active)
- Primary Buy
- Primary Buy
- 717111-3
- 20418 - Drs Sustainment Systems, Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3110-00-821-5094
- Characteristic
- Specifications
- FIIG
- Specifications
- A093A0
- Distance From Vertical Centerline To Center Of Right Hole [CWHW]
- 0.736 Inches Nominal
- End Item Identification [AGAV]
- Armt Subsystem,M28a1e2
- Counterbore Depth [CWHX]
- 0.117 Inches Nominal
- Counterbore Diameter [CWGF]
- 0.960 Inches Nominal

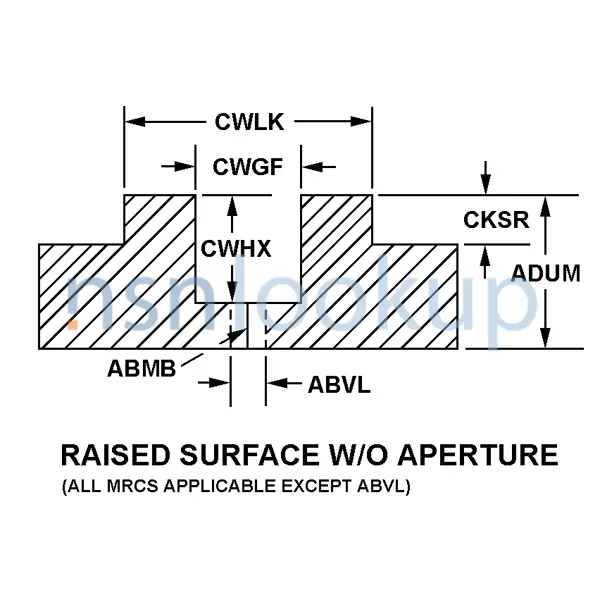

- Cross-Sectional Shape Style [AAGR]
- Raised Surface W/O Aperture
- Distance Between Hole Centers Along Base [CWKR]
- 1.472 Inches Nominal
- Distance Between Hole Centers Along Height [CWLD]
- 0.893 Inches Nominal
- Material [MATT]
- Aluminum Alloy Overall
- Minor Thickness [ABMB]
- 0.078 Inches Nominal

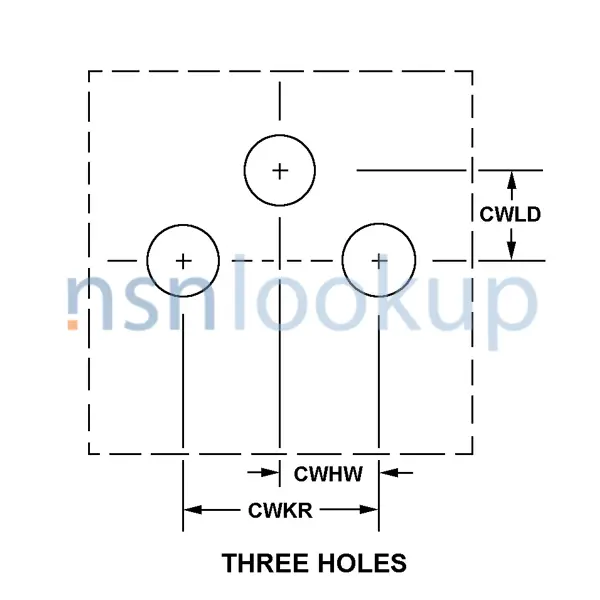

- Mounting Hole Arrangement Style [ADFU]
- Three Holes
- Mounting Hole Diameter [ABTB]
- 0.206 Inches Nominal
- Mounting Hole Type [CWJW]
- Round, Unthreaded
- Outside Diameter [ABKV]
- 1.970 Inches Nominal
- Raised Surface Height [CKSR]
- 0.117 Inches Nominal
- Outside Raised Surface Diameter [CWLK]
- 1.102 Inches Nominal
- Overall Thickness [ADUM]
- 0.195 Inches Nominal
- Style Designator [STYL]
- Round
DLA Procurement Analysis 3110-00-821-5094
Management Data 3110-00-821-5094
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
