3110-00-771-0527
Duplex Ball Bearing
3110007710527 007710527 582391 RM9307KMBRDV
Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting. View more Duplex Ball Bearing
May 2023
4
Marketplace 3110-00-771-0527
Request a Quotation from participating marketplace vendors
Related Documents 3110-00-771-0527 3+ Documents (More...)

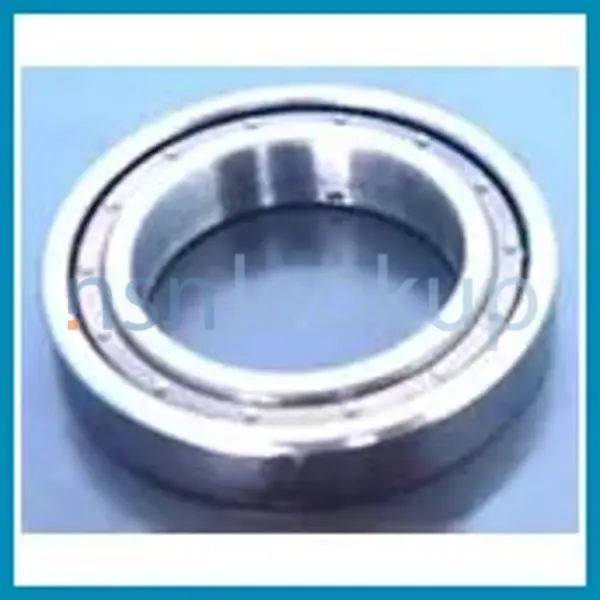

Photo 1/2 NSN 3110-00-771-0527 (Identification) 2/2 - - 1.
United States (US) 4. 3110-00-771-0527 Marketplace Restrictions Approved Sources Datasheet Management
0835Vibration Analysis6625218720835 218720835 215732 https//www.nsnlookup.com /fsg-31/fsc-3110/us 3110-00-771-0527
Duplex Ball Bearing 3110007710527 007710527 Restrictions Approved Sources Datasheet Management
Duplex Ball Bearing 3110007710527 007710527 Filete Axe5306144067094 144067094 73-215732 215732
4-582391 0835Vibration Analysis6625218720835 218720835 Restrictions 6625-21-872-0835 DEMIL: | DEMILI
Restrictions 3110-00-771-0527
3110-00-771-0527 is a Duplex Ball Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3110-00-771-0527
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-00-771-0527
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTKE
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3110-00-771-0527
- Part Number
- Manufacturer
- Status
- 582391
- Manufacturer
- 73030 - Hamilton Sundstrand Corporation (Active)
- Source Control
- Source Control
- RM9307KMBRDV
- 21335 - Timken Co (Active)
- Primary Buy
- Primary Buy
Datasheet 3110-00-771-0527
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Bearing Preload Rating [CTHQ]
- 10.0 Pounds Nominal
- Bearing Preload Designation [AGZJ]
- Light
- Bore Diameter [ABXV]
- 1.3777 Inches Minimum And 1.3780 Inches Maximum
- Material [MATT]
- Copper Alloy Retainer
- Material [MATT]
- Steel Comp E52100 Ball
- Material [MATT]
- Steel Comp E52100 Inner Ring
- Material [MATT]
- Steel Comp E52100 Outer Ring
- Internal Clearance [AKVV]
- 0.0004 Inches Minimum Radial And 0.0008 Inches Maximum Radial
- Load Direction [AGZC]
- Radial
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Ball
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Inner Ring
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Outer Ring
- Retainer Fabrication Method [AGYF]
- Machined
- Overall Outside Diameter [ADGA]
- 2.1650 Inches Minimum And 2.1654 Inches Maximum
- Overall Width [ABMK]
- 0.7774 Inches Minimum And 0.7874 Inches Maximum
- Standard Tolerance Designation [CTFZ]
- Abec No.3
- Style Designator [STYL]
- Non-Loading Groove, Non-Separable, Tandem Mounting
- Surface Finish [AGYE]
- Ground
Weapon Systems (WSDC) 3110-00-771-0527
DLA Procurement Analysis 3110-00-771-0527
Management Data 3110-00-771-0527
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-00-771-0527
Freight Information 3110-00-771-0527
3110-00-771-0527 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-00-771-0527 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-00-771-0527 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-00-771-0527 is not classified as a special type of cargo when transported by water. 3110-00-771-0527 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-00-771-0527
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 3110-00-771-0527 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
