3110-00-762-2221
Tapered Roller Bearing
3110007622221 007622221 28579-28520 8738021 3110011584178
A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST. View more Tapered Roller Bearing
July 2025
40
Marketplace 3110-00-762-2221
Request a Quotation from participating marketplace vendors
Related Documents 3110-00-762-2221 5+ Documents (More...)
Photo 1/2 NSN 3110-00-762-2221 (Identification) 2/2 - - 1.
Every Day 3110-00-762-2221 RQST NE Updated Every Day 3110-00-762-2221 RQST Updated Every Day 3110-00
https//www.nsnlookup.com /fsg-31/fsc-3110/us 3110-00-762-2221 Tapered Roller Bearing 3110007622221,8738021
Account Upgrade 3110-00-762-2221Tapered Roller Bearing3110007622221 007622221 8738021 28579-28520 3110011584178
Restrictions 3110-00-762-2221
3110-00-762-2221 is a Tapered Roller Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-00-762-2221
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-00-762-2221
- US Army (A919)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZ
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Jul 2005
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Jul 2005
Approved Sources 3110-00-762-2221
- Part Number
- Manufacturer
- Status
- 8738021
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- 28579-28520
- 60038 - The Timken Corporation (Active)
- Primary Buy
- Primary Buy
- 8738021
- 076M6 - Bae Systems Land & Armaments L.P. (Active)
- Secondary Buy
- Secondary Buy
- 8738021
- 80212 - Bae Systems Land & Armaments L.P. (Active)
- Secondary Buy
- Secondary Buy
- 3110007622221
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 3110011584178
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 3110-00-762-2221
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Bore Diameter [ABXV]
- 1.9680 Inches Nominal
- Material [MATT]
- Steel Corrosion Resisting Overall
- Outer Ring Width [AGVT]
- 0.7869 Inches Nominal
- Inner Ring Width [AGVU]
- 1.0000 Inches Nominal
- Lubrication Material [ADZG]
- Grease
- Retainer Fabrication Method [AGYF]
- Pressed
- Overall Outside Diameter [ADGA]
- 3.3425 Inches Nominal
- Overall Width [ABMK]
- 1.0000 Inches Nominal
- Standard Tolerance Designation [CTFZ]
- Afbma Class 2

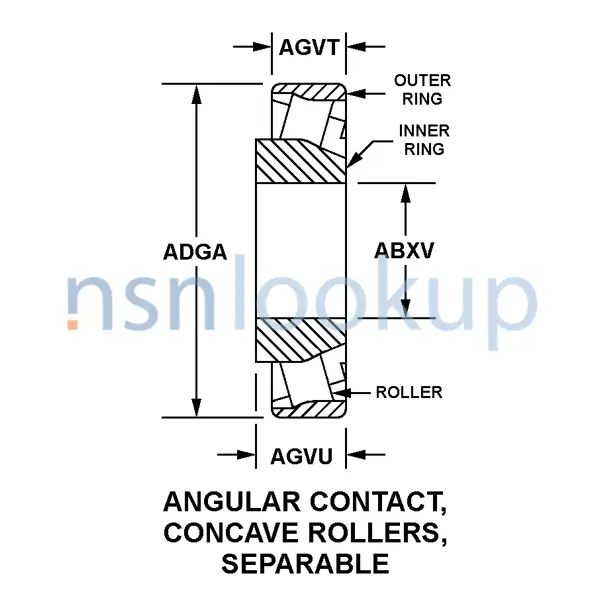

- Style Designator [STYL]
- Angular Contact, Concave Rollers, Separa Ble
Weapon Systems (WSDC) 3110-00-762-2221
DLA Procurement Analysis 3110-00-762-2221
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3110-00-762-2221
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-00-762-2221
Freight Information 3110-00-762-2221
3110-00-762-2221 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-00-762-2221 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-00-762-2221 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-00-762-2221 is not classified as a special type of cargo when transported by water. 3110-00-762-2221 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-00-762-2221
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 3110-00-762-2221 2 Records
Contracting Technical Data File (CTDF) 3110-00-762-2221 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
