3110-00-735-6173
Outer Bearing Ring
3110007356173 007356173 10892433 3110-735-6173
The outer component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing. View more Outer Bearing Ring
May 2023
26
Marketplace 3110-00-735-6173
Request a Quotation from participating marketplace vendors
Related Documents 3110-00-735-6173 1+ Documents (More...)
United States (US) 4. 3110-00-735-6173 Marketplace Restrictions Approved Sources Datasheet Management
RQST NS Request Quotation Updated Every Day 3110-00-735-6173 RQST NE Updated Every Day 3110-00-735-6173
Restrictions 3110-00-735-6173
3110-00-735-6173 is a Outer Bearing Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-00-735-6173
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-00-735-6173
- US Air Force (FGGG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FGCX
- US Marine Corps (MC41)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Morocco (YP01)
- Effective Date:
- 1 Apr 2011
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Nov 1998
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3110-00-735-6173
- Part Number
- Manufacturer
- Status
- 10892433
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 10892433
- 19204 - Army, United States Department Of (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3110-735-6173
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 3110-00-735-6173
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Bore Diameter [ABXV]
- 2.4375 Inches Nominal
- Flange Outside Diameter [AEPR]
- 2.9950 Inches Minimum And 2.9980 Inches Maximum
- Flange Width [AGFF]
- 0.0970 Inches Nominal
- Material [MATT]
- Steel Overall
- Smallest Outside Diameter [AGWL]
- 2.7500 Inches Nominal
- Overall Width [ABMK]
- 0.2030 Inches Nominal

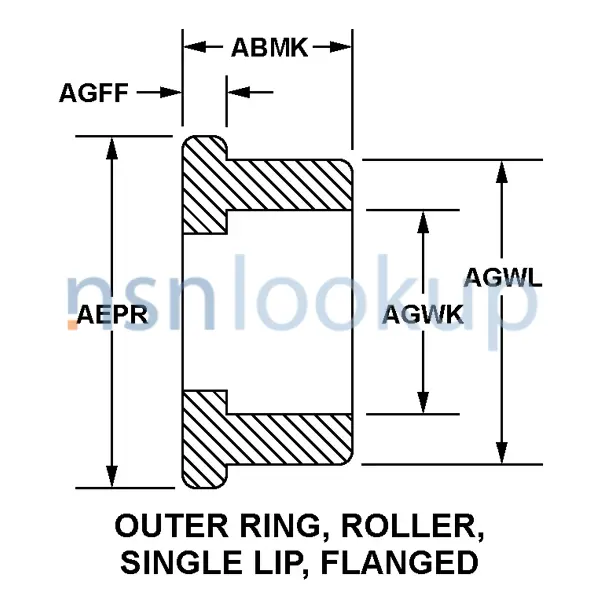

- Style Designator [STYL]
- Outer Ring, Roller, Single Lip, Flanged
- Surface Finish [AGYE]
- Ground
Weapon Systems (WSDC) 3110-00-735-6173
DLA Procurement Analysis 3110-00-735-6173
Management Data 3110-00-735-6173
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 3110-00-735-6173
Freight Information 3110-00-735-6173
3110-00-735-6173 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 3110-00-735-6173 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 3110-00-735-6173 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-00-735-6173 is not classified as a special type of cargo when transported by water. 3110-00-735-6173 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-00-735-6173
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 3110-00-735-6173 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
