3110-00-554-3899

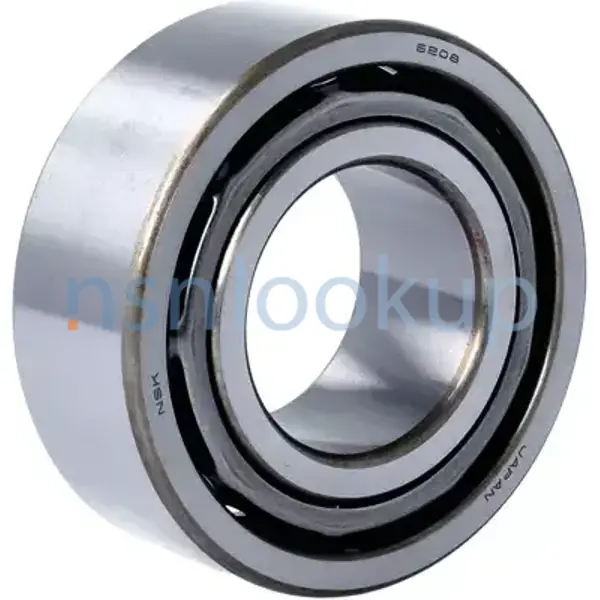

Annular Ball Bearing

3110005543899 005543899 A-A-59636 5208KQ6A7 229124PC1 AA59636-808JABT FFB171/32J08A2E 5208 3110002770313 31105543899

A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME. View more Annular Ball Bearing

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
35

NATO Data Quality

STYL Style 28A for 3110-00-554-3899 1/1 — NSN 3110-00-554-3899 (Identification) 1/1

Marketplace 3110-00-554-3899

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

5208 BEARING,BALL,ANNULAR 26 EA NS

Subscribe to View Vendor Details...

5208 BEARING,BALL,ANNULAR 830 EA NS

Subscribe to View Vendor Details...

5208A BEARING,BALL,ANNULAR 5 EA NS

AA59636-808JABT BEARING,BALL,ANNULAR 11 EA NS

Subscribe to View Vendor Details...

5208WX BEARING,BALL,ANNULAR 1 EA NS

Subscribe to View Vendor Details...

5208 BEARING,BALL,ANNULAR RQST NS

Subscribe to View Vendor Details...

5208 BEARING,BALL,ANNULAR 25 EA NS

Subscribe to View Vendor Details...

3110-00-156-4863 BEARING,BALL,ANNULAR RQST NS

Subscribe to View Vendor Details...

52-08 BEARING,BALL,ANNULAR 1 EA NS

Subscribe to View Vendor Details...

5208WX BEARING,BALL,ANNULAR 1 EA NS

Subscribe to View Vendor Details...

5208 BEARING,BALL,ANNULAR 2 EA NS

Subscribe to View Vendor Details...

005543899.3110 BEARING,BALL,ANNULAR 3 EA NS

Updated Every 15 Minutes

3110-00-554-3899 BUY NE

Updated Every Day

5208 RQST NE

Updated Every Day

5208KQ6A7 RQST NE

Updated Every Day

3110-00-554-3899 RQST NE

Updated Every Day

3110-00-554-3899 RQST

Updated Every Day

3110-00-554-3899 RQST NE

Restrictions 3110-00-554-3899

3110-00-554-3899 is a Annular Ball Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 3110-00-554-3899

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 3110-00-554-3899

US Army (A919)
Effective Date:: 1 Sep 2006
Former MOE Rule:: A180
Supplementary Receivers:: AZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FGGG)
Effective Date:: 1 Sep 2006
Former MOE Rule:: FGCX; AMC 1 AMSC G IMC Z IMCACTY TG

US Marine Corps (MC41)
Effective Date:: 1 Sep 2006
Former MOE Rule:: MC04; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BG)
Effective Date:: 1 Sep 2006
Former MOE Rule:: N9GD
Supplementary Collaborators:: GTHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Brazil (YA01)
Effective Date:: 1 Sep 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Argentina (YF01)
Effective Date:: 1 Sep 2015

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Morocco (YP01)
Effective Date:: 1 Nov 2008

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Jul 2000

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Jun 1997

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

Approved Sources 3110-00-554-3899

Part Number
Manufacturer
Status
AA59636-808JABT: 58536 - Federal Commercial Item Description (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
A-A-59636: 58536 - Federal Commercial Item Description (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
5208: 21335 - Timken Co (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
5208KQ6A7: 38443 - Skf Usa Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
FFB171/32J08A2E: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5208: 21760 - Schatz Bearing Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
3110002770313: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
31105543899: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
229124PC1: 53711 - Naval Sea Systems Command (Active); Advisory Reference; RNCC C RNVC 1 DAC 1

Datasheet 3110-00-554-3899

Characteristic
Specifications
FIIG: A044A0
Bore Diameter [ABXV]: 40.00 Millimeters Nominal
Bore Shape [AGZD]: Straight
Material [MATT]: Steel Retainer
Material [MATT]: Steel Comp E52100 Ball
Material [MATT]: Steel Comp E52100 Inner Ring
Material [MATT]: Steel Comp E52100 Outer Ring
Internal Fit-Up Designation [AGZH]: Standard
Internal Fit-Up Contact Angular Direction [AGZK]: Inward Convergent
Load Direction [AGZC]: Radial
Material Document And Classification [MDCL]: 66 Fed Std Single Material Response Ball
Material Document And Classification [MDCL]: 66 Fed Std Single Material Response Inner Ring
Material Document And Classification [MDCL]: 66 Fed Std Single Material Response Outer Ring
Retainer Fabrication Method [AGYF]: Pressed
Overall Outside Diameter [ADGA]: 80.00 Millimeters Nominal
Overall Width [ABMK]: 1.1875 Inches Nominal
Special Features [FEAT]: None.Testkx
Standard Tolerance Designation [CTFZ]: Abec No.1
Style Designator [STYL]: Non-Loading Groove, Non-Separable
Surface Finish [AGYE]: Ground

Weapon Systems (WSDC) 3110-00-554-3899

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 3110-00-554-3899

Last Stock Position:: 205 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 3110-00-554-3899

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 3110-00-156-4863
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 3110-00-277-0313

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 3110-00-554-3899

3110-27-045-3706 3110-15-070-0701 3110-22-618-3610 3110-33-154-0805 3110-34-031-3489 3110-21-878-4043 3110-14-399-3621 3110-19-004-0780 3110-12-169-0120 3110-66-077-7949 3110-12-327-7655 3110-14-369-1301 3110-27-051-6446 3110-17-111-1344 3110-66-077-6577 3110-12-193-4432 3110-27-058-5009 3110-14-519-4012

Freight Information 3110-00-554-3899

3110-00-554-3899 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-00-554-3899 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-00-554-3899 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-00-554-3899 is not classified as a special type of cargo when transported by water. 3110-00-554-3899 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 3110-00-554-3899

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; --

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; --; --; --; --

Intermediate Pack Level

Quantity of Unit Packs
Container: See Method of Preservation; --

Procurement History 3110-00-554-3899 4 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A622F3987: 18 Nov 2021; Subscribe; 40; Subscribe; Subscribe
SPE4A622F0172: 01 Oct 2021; Subscribe; 40; Subscribe; Subscribe
SPE4A621F317Q: 15 Jul 2021; Subscribe; 123; Subscribe; Subscribe
SPE4A621F142D: 14 May 2021; Subscribe; 82; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 3110-00-554-3899 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
