3110-00-364-2889
Outer Bearing Ring
3110003642889 003642889 147032
The outer component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing. View more Outer Bearing Ring
November 2023
10
Marketplace 3110-00-364-2889
Request a Quotation from participating marketplace vendors
Related Documents 3110-00-364-2889 3+ Documents (More...)
NE Updated Every Day 3110-00-364-2889 RQST Updated Every Day 3110-00-364-2889 RQST NE Related Documents
3110-00-364-2889 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-31/fsc-3110/us 3110-00-364-2889
Outer Bearing Ring 3110003642889 003642889 for $1 a day Upgrade your Account Upgrade 3110-00-364
-2889Outer Bearing Ring3110003642889 003642889 147032 RING,BEARING,OUTER 235 EA NS Request Quotation
2483934 RQST NE Updated Every Day 151347 RQST NE Updated Every Day 97012 RQST NE Updated Every Day 147032
RING,BEARING,OUTER 76 EA NS Request Quotation Subscribe to View Vendor Details... 147032 RING 30 EA
Restrictions 3110-00-364-2889
3110-00-364-2889 is a Outer Bearing Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3110-00-364-2889
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-00-364-2889
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 3110-00-364-2889
- Part Number
- Manufacturer
- Status
- 147032
- Manufacturer
- 21877 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 3110-00-364-2889
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Flange Outside Diameter [AEPR]
- 7.5000 Inches Nominal
- Flange Width [AGFF]
- 0.1875 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-A-225/11,T651 Fed Spec Single Material Response Overall
- Material [MATT]
- Aluminum Alloy 6061 Overall
- Largest Bore Diameter [AGWK]
- 6.0400 Inches Minimum And 6.0420 Inches Maximum
- Smallest Outside Diameter [AGWL]
- 6.2500 Inches Nominal
- Overall Width [ABMK]
- 0.8750 Inches Nominal

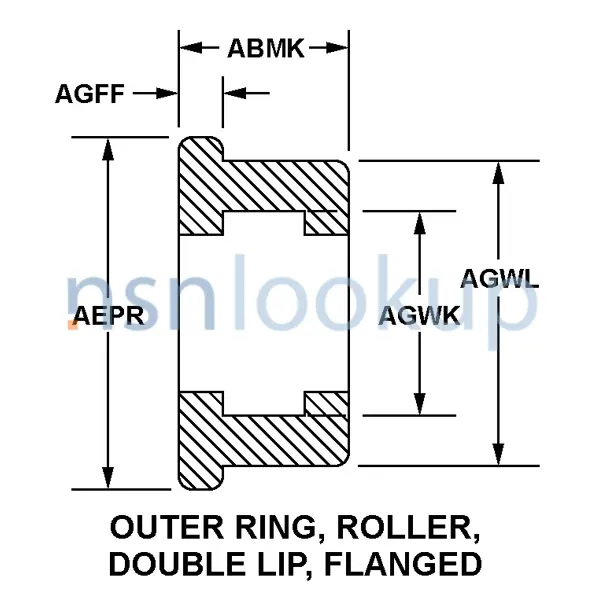

- Style Designator [STYL]
- Outer Ring, Roller, Double Lip, Flanged
- Surface Finish [AGYE]
- Ground
Weapon Systems (WSDC) 3110-00-364-2889
DLA Procurement Analysis 3110-00-364-2889
- Last Stock Position:
- 63 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3110-00-364-2889
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-00-364-2889
Freight Information 3110-00-364-2889
3110-00-364-2889 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-00-364-2889 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-00-364-2889 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-00-364-2889 is not classified as a special type of cargo when transported by water. 3110-00-364-2889 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-00-364-2889
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 3110-00-364-2889 1 Records
Contracting Technical Data File (CTDF) 3110-00-364-2889 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
