3110-00-198-1008
Annular Ball Bearing
3110001981008 001981008 648695-1 24M639-2 648695-1REVH
A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME. View more Annular Ball Bearing
May 2023
5
Marketplace 3110-00-198-1008
Request a Quotation from participating marketplace vendors
Related Documents 3110-00-198-1008 4+ Documents (More...)
Quotation Updated Every Day 3110-00-198-1008 RQST NE Updated Every Day 3110-00-198-1008 RQST Updated
Every Day 3110-00-198-1008 RQST NE Related Documents 3110-00-198-1008 4+ Documents ( More... ) https
648695-1REVH A cylindrical device https//www.nsnlookup.com /fsg-31/fsc-3110/us 3110-00-198-1008 Annular
Ball Bearing 3110001981008 001981008 $1 a day Upgrade your Account Upgrade 3110-00-198-1008Annular Ball
Annular Ball Bearing 3110001981008 001981008 $1 a day Upgrade your Account Upgrade 3110-00-198-
1008Annular Ball Bearing3110001981008 001981008 648695 -1 24M639-2 648695-1REVH A cylindrical device
24M639-2 648695-1REVH A cylindrical device in which the inner or outer ring turns upon a single or
www.nsnlookup.com /fsg-31/fsc-3110/us 3110-00-227-2758 Thrust Ball Bearing 3110002272758002272758 648695 $1
Restrictions 3110-00-198-1008
3110-00-198-1008 is a Annular Ball Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3110-00-198-1008
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-00-198-1008
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 3110-00-198-1008
- Part Number
- Manufacturer
- Status
- 648695-1
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- 648695-1
- 10001 - Navair And Navsea Managed Original (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 24M639-2
- 39820 - Kingsbury, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 648695-1REVH
- 10001 - Navair And Navsea Managed Original (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3110-00-198-1008
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Bore Diameter [ABXV]
- 8.7500 Inches Minimum And 8.7530 Inches Maximum
- Bore Shape [AGZD]
- Straight
- Material [MATT]
- Copper Alloy Retainer
- Material [MATT]
- Steel Corrosion Resisting Ball
- Material [MATT]
- Steel Corrosion Resisting Inner Ring
- Material [MATT]
- Steel Corrosion Resisting Outer Ring
- Outer Ring Width [AGVT]
- 0.8700 Inches Minimum And 0.8750 Inches Maximum
- Inner Ring Width [AGVU]
- 0.8120 Inches Nominal
- Internal Fit-Up Designation [AGZH]
- Standard
- Load Direction [AGZC]
- Radial
- Retainer Fabrication Method [AGYF]
- Machined
- Overall Outside Diameter [ADGA]
- 10.4980 Inches Minimum And 10.5000 Inches Maximum

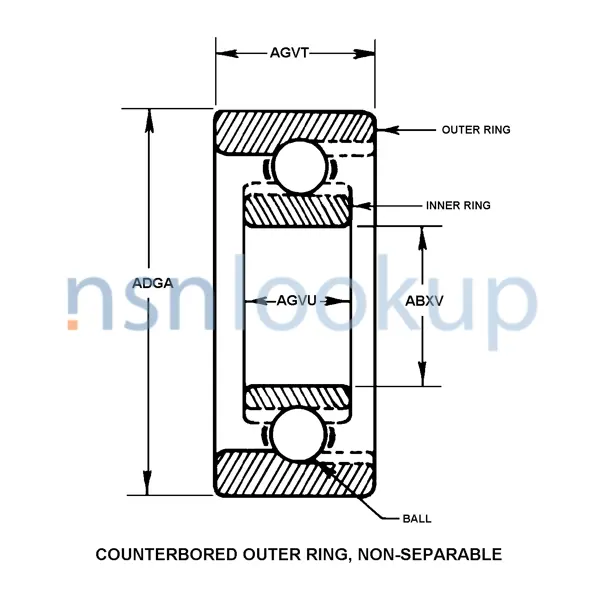

- Style Designator [STYL]
- Counterbored Outer Ring, Non-Separable
- Surface Finish [AGYE]
- Ground
Weapon Systems (WSDC) 3110-00-198-1008
DLA Procurement Analysis 3110-00-198-1008
- Last Stock Position:
- 7 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3110-00-198-1008
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-00-198-1008
Freight Information 3110-00-198-1008
3110-00-198-1008 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-00-198-1008 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-00-198-1008 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-00-198-1008 is not classified as a special type of cargo when transported by water. 3110-00-198-1008 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3110-00-198-1008
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 3110-00-198-1008 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
