3110-00-157-6083

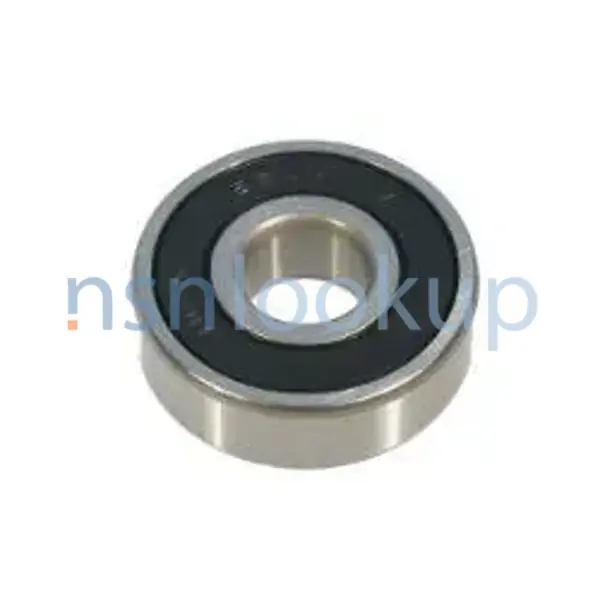

Annular Ball Bearing
3110001576083 001576083 20264 XB138
A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME. View more Annular Ball Bearing
May 2023
8
Marketplace 3110-00-157-6083
Request a Quotation from participating marketplace vendors
Related Documents 3110-00-157-6083 5+ Documents (More...)
Day XB138 RQST NE Updated Every Day 20264 RQST NE Updated Every Day 3110-00-157-6083 RQST NE Updated
RQST NE Updated Every Day 20264 RQST NE Updated Every Day 3110-00-157-6083 RQST NE Updated RQST NE Updated
-3110/us 3110-00-157-6083 Annular Ball Bearing 3110001576083 001576083 Digital Microcircuit 5962998604848998604848
-04-32071-202642071-20264-05-32071-20264 ISS -20264 2071-20264-05-3 https 2071-20264 -20264 2071-20264
Restrictions 3110-00-157-6083
3110-00-157-6083 is a Annular Ball Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3110-00-157-6083
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3110-00-157-6083
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 3110-00-157-6083
- Part Number
- Manufacturer
- Status
- 20264
- Manufacturer
- 07429 - Black And Decker Us Inc (Active)
- Primary Buy
- Primary Buy
- XB138
- 43991 - Fag Bearings Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 3110-00-157-6083
- Characteristic
- Specifications
- FIIG
- Specifications
- A044A0
- Material [MATT]
- Steel Overall
- Style Designator [STYL]
- Non-Loading Groove, Non-Separable
- Overall Width [ABMK]
- 0.5000 Inches Nominal
- Bore Diameter [ABXV]
- 12.00 Millimeters Nominal
- Overall Outside Diameter [ADGA]
- 32.00 Millimeters Nominal
- Standard Tolerance Designation [CTFZ]
- Abec No.1
- Bore Shape [AGZD]
- Straight
- Surface Finish [AGYE]
- Ground
- Retainer Fabrication Method [AGYF]
- Pressed
- Load Direction [AGZC]
- Radial
- Internal Fit-Up Designation [AGZH]
- Standard
- Special Features [FEAT]
- Seals Removed
DLA Procurement Analysis 3110-00-157-6083
Management Data 3110-00-157-6083
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3110-00-157-6083
Freight Information 3110-00-157-6083
3110-00-157-6083 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-00-157-6083 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 3110-00-157-6083 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-00-157-6083 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-00-157-6083 is not classified as a special type of cargo when transported by water. 3110-00-157-6083 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3110-00-157-6083 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
