3110-00-156-5445

Annular Ball Bearing

3110001565445 001565445 FF-B-171/37 5306W BS4-1657PC58 5306X3017ND BS5-1658PC58 BS4-1657-58 FF-B-171/37J06A2E 1L25 5306X3013J 5306X3017A

A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME. View more Annular Ball Bearing

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
June 2025

NATO Update Count
27

NATO Data Quality

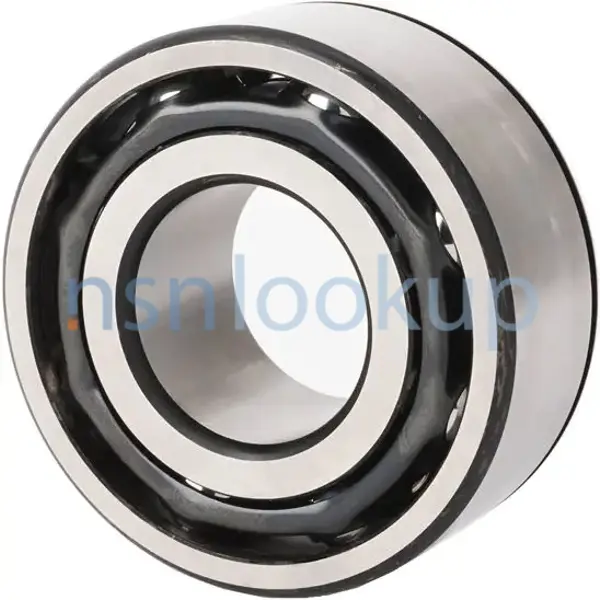

3110-00-156-5445 BEARING,BALL,ANNULAR 3110001565445 001565445 1/2 — 3110-00-156-5445 Photo 1/2

STYL Style 28B for 3110-00-156-5445 2/2 — NSN 3110-00-156-5445 (Identification) 2/2

Marketplace 3110-00-156-5445

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

5306W BEARING,BALL,ANNULAR 2 EA NS

Subscribe to View Vendor Details...

5306-W BEARING,BALL,ANNULAR 10 EA NS

Subscribe to View Vendor Details...

5306W BEARING,BALL,ANNULAR 42 EA NS

Subscribe to View Vendor Details...

FF-B-171/37 BEARING,BALL,ANNULAR 40 EA NS

Updated Every Day

5306W RQST NE

Updated Every Day

5306X3013J RQST NE

Updated Every Day

5306X3017A RQST NE

Updated Every Day

3110-00-156-5445 RQST NE

Updated Every Day

3110-00-156-5445 RQST

Updated Every Day

3110-00-156-5445 RQST NE

Restrictions 3110-00-156-5445

3110-00-156-5445 is a Annular Ball Bearing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 3110-00-156-5445

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 3110-00-156-5445

US Army (A919)
Effective Date:: 1 Sep 2006
Former MOE Rule:: A180
Supplementary Receivers:: AZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Navy (N9BG)
Effective Date:: 1 Sep 2006
Former MOE Rule:: N9GD
Supplementary Collaborators:: HD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Brazil (YA01)
Effective Date:: 1 Mar 2001

Spain (YB01)
Effective Date:: 1 Mar 1999

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 2005

Approved Sources 3110-00-156-5445

Part Number
Manufacturer
Status
FF-B-171/37J06A2E: 81348 - Federal Specifications Promulgated (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
FF-B-171/37: 81348 - Federal Specifications Promulgated (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
5306W: 21335 - Timken Co (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
BS4-1657PC58: 63857 - Circor Naval Solutions Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
5306X3017ND: 63857 - Circor Naval Solutions Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
BS5-1658PC58: 63857 - Circor Naval Solutions Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
5306X3013J: 24617 - General Motors Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
5306X3017A: 24617 - General Motors Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
BS4-1657-58: 63857 - Circor Naval Solutions Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
1L25: 32804 - Giddings & Lewis Bickford Machine Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
5306X3013J: 43334 - General Motors Corp Delco Moraine (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
5306X3017A: 43334 - General Motors Corp Delco Moraine (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
1L25: 24845 - Amca Intl Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
3110001565445: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 3110-00-156-5445

Characteristic
Specifications
FIIG: A044A0
Bore Diameter [ABXV]: 30.00 Millimeters Nominal
Bore Shape [AGZD]: Straight
Contact Angle [CTHY]: 25.0 Degrees Minimum
Material [MATT]: Steel Ball
Material [MATT]: Steel Inner Ring
Material [MATT]: Steel Outer Ring
Internal Fit-Up Designation [AGZH]: Standard
Internal Fit-Up Contact Angular Direction [AGZK]: Outward Convergent
Load Direction [AGZC]: Angular
Overall Outside Diameter [ADGA]: 72.00 Millimeters Nominal
Overall Width [ABMK]: 1.1875 Inches Nominal
Standard Tolerance Designation [CTFZ]: Abec No.3
Style Designator [STYL]: Loading Groove, Non-Separable
Surface Finish [AGYE]: Ground

Subscribe
View Data

DLA Procurement Analysis 3110-00-156-5445

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 3110-00-156-5445

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Department of the Navy (DN); EA; Subscribe; 1
Oct 2020: Department of the Army (DA); EA; Subscribe; 1
Apr 2016: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Similar Supply Items to 3110-00-156-5445

Freight Information 3110-00-156-5445

3110-00-156-5445 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114820. A Sub NMFC of X. It has a NMFC Description of BEARINGS/BUSHINGS NOI BALL/ROLLER. 3110-00-156-5445 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58860 which rates the freight between FCL and LCL. 3110-00-156-5445 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 742 for ocean manifesting and military sealift. 3110-00-156-5445 is not classified as a special type of cargo when transported by water. 3110-00-156-5445 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 3110-00-156-5445

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; --

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; --; --; --; --

Intermediate Pack Level

Quantity of Unit Packs
Container: See Method of Preservation; --

Contracting Technical Data File (CTDF) 3110-00-156-5445 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: N

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: Y
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF
