3040-01-478-0598

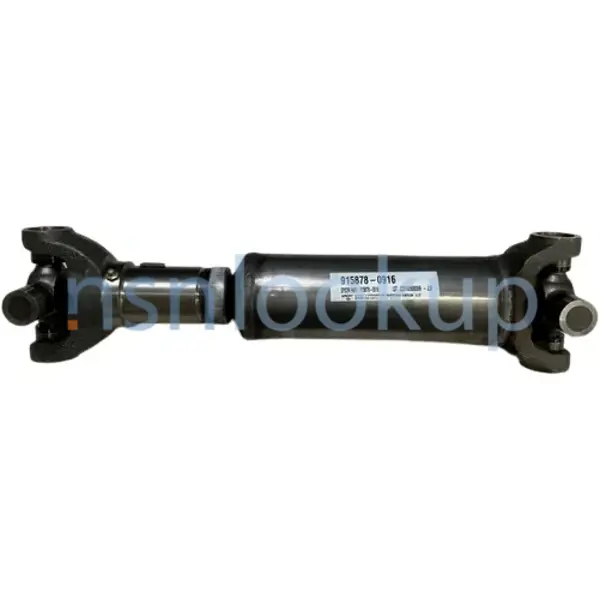

Shouldered Shaft
3040014780598 014780598 216198 915878-0916
A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT. View more Shouldered Shaft
November 2023
3
Marketplace 3040-01-478-0598
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-478-0598 3+ Documents (More...)
Restrictions 3040-01-478-0598
3040-01-478-0598 is a Shouldered Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3040-01-478-0598
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-01-478-0598
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- Bulgaria (WU01)
- Effective Date:
- 1 Sep 2009
Approved Sources 3040-01-478-0598
- Part Number
- Manufacturer
- Status
- 216198
- Manufacturer
- 10237 - Cadillac Gage Textron Inc. (Active)
- Primary Buy
- Primary Buy
- 915878-0916
- 72447 - Dana Commercial Vehicle (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3040-01-478-0598
- Characteristic
- Specifications
- FIIG
- Specifications
- A23200
- End Item Identification [AGAV]
- Direct Vendor Delivery (Dvd), Model Xm1117, Armored Security Vehicle (Asv), Nsn 2320-01-437-6957, Cage 10237, Part Number 216098, Tm 9-2320-307-24P, Contract Daae07-99-C-S001
Weapon Systems (WSDC) 3040-01-478-0598
DLA Procurement Analysis 3040-01-478-0598
- Last Stock Position:
- 50 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3040-01-478-0598
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 3040-01-478-0598
Freight Information 3040-01-478-0598
3040-01-478-0598 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126900. A Sub NMFC of Z. It has a NMFC Description of POWER TRANS SHAFTING/SHAFTS. 3040-01-478-0598 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 65750 which rates the freight between FCL and LCL. 3040-01-478-0598 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-01-478-0598 is not classified as a special type of cargo when transported by water. 3040-01-478-0598 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
