Premium Information is available for this item - Upgrade for $1 a day
3040-01-475-9310
Shouldered Shaft
3040014759310 014759310 124-4322623 PC 13 124-4322621 PC 19 4322623 4322621
A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT. View more Shouldered Shaft
May 2023
1
Marketplace 3040-01-475-9310
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-475-9310 5+ Documents (More...)
124-4322623 PC 13124-4322621 PC 1943226234322621 A shaft having two or more different diameters ( PC
by United States NSN Created on 16 Jun 2000 BUY NE FedMall PC 41 124-4322621 124-4322623 A headless,
/fsg-31/fsc-3120/us
PC 21 124-4322623 PC 26 A tubular shaped unthreaded item with or without a flange at one end designed
/www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-475-6768 Sleeve Bushing 3120014756768014756768 124-4322621
PC 41 124-4322621 124-4322623 A headless, generally cylindrically-shaped item having Upgrade 3120-01
-475-6768Sleeve Bushing3120014756768 014756768 124-4322621 PC 21 124-4322623 Upgrade /fsg-30/fsc-3040
3486 Keyway Washer 5310014753486 014753486 PC 39 124-4322621 PC 133 124-4322623 A sector shaped metal
plate, with a tapered profile, designed to PC 39124-4322621 PC 133124-4322623 A sector shaped metal
PC 39 124-4322621 PC 133 124-4322623 A sector shaped metal plate, with a tapered profile, designed to
PC 4 4322623 4322621 Managed by United States NSN Created on 16 Jun 2000 Data Last https//www.nsnlookup.com
Restrictions 3040-01-475-9310
3040-01-475-9310 is a Shouldered Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3040-01-475-9310
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-01-475-9310
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 3040-01-475-9310
- Part Number
- Manufacturer
- Status
- 124-4322623 PC 13
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- 124-4322621 PC 19
- 53711 - Naval Sea Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 4322623
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
- 4322621
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 3040-01-475-9310
- Characteristic
- Specifications
- FIIG
- Specifications
- A23200
- Material [MATT]
- Steel Comp 1018
- Material Document And Classification [MDCL]
- Aisi-C-1018 Assn Std Single Material Response
- Surface Finish [CSYM]
- 125.0 Microinches
- First End Style [AAGZ]
- Cross Drilled And Externally Threaded
- First End Diameter [AMDL]
- 1.0000 Inches Nominal
- First End Hole Diameter [AMDX]
- 0.1250 Inches Nominal
- First End Distance From Hole Center To End [AMDZ]
- 1.000 Inches Nominal
- First End Hole Depth [AMEB]
- 1.000 Inches Nominal
- End Similarity [AAHN]
- Not Identical
- Second End Style [AAHP]

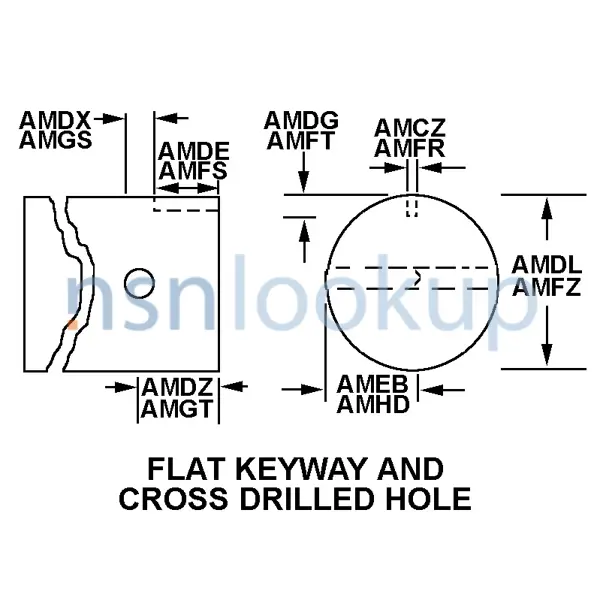

- Flat Keyway And Cross Drilled Hole
- Second End Keyway Width [AMFR]
- 0.3125 Inches Nominal
- Second End External Keyway Length [AMFS]
- 1.500 Inches Nominal
- Second End Keyway Depth [AMFT]
- 0.156 Inches Nominal
- Second End Diameter [AMFZ]
- 1.1250 Inches Nominal
- Overall Length [ABHP]
- 11.188 Inches Nominal
- Special Features [FEAT]
- 1St End Threads 1-8Unc-2A; 2Nd End Has 2 Tappered Holes
DLA Procurement Analysis 3040-01-475-9310
Management Data 3040-01-475-9310
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3040-01-475-9310
Freight Information 3040-01-475-9310
3040-01-475-9310 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126900. A Sub NMFC of Z. It has a NMFC Description of POWER TRANS SHAFTING/SHAFTS. 3040-01-475-9310 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 65750 which rates the freight between FCL and LCL. 3040-01-475-9310 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-01-475-9310 is not classified as a special type of cargo when transported by water. 3040-01-475-9310 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3040-01-475-9310
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Vendor's Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 3040-01-475-9310 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
