3040-01-428-4446
Pawl
3040014284446 014284446 167-6404625 FIND 100 211016048 DF1502-261 FIND NO.100 6404625
A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified). View more Pawl
May 2023
2
Marketplace 3040-01-428-4446
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-428-4446 5+ Documents (More...)
/fsg-30/fsc-3040/us 3040-01-428-4446 Pawl 3040014284446014284446 167-6404625 FIND 100211016048DF1502
50632 https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-01-428-4446 Pawl 3040014284446 014284446 FIND
FIND 78 211068604 FN 31L1 6404625 FIND 31L1 167-6404625 FIND 31L1 https//www.nsnlookup.com /fsg-25/fsc
to enable JavaScript in your web browser . 2540 https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-01-428-4446
014284446 FIND 63L1 167-6404625 FIND 63L1 DF1502-261 FN 63L1 https//www.nsnlookup.com /fsg-53/fsc-5320
/ca 5320-21-106-1243 5320211061243211061243 -168 167-6404625 FIND 57 6404625 211061243 RNVC 2 DAC 5 6404625
/fsg-31/fsc-3120/us
/www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-430-4689 Sleeve Bushing 3120014304689014304689 167-6404625
for $1 a day Upgrade your Account Upgrade 3120-01-430-4689Sleeve Bushing3120014304689 014304689 167-6404625
FN 63 6404625 FIND 63L1 167-6404625 FIND 63L1 DF1502-261 FN 63L1 FIND 31 6404625 -424-4247 https//www.nsnlookup.com
DF1502-261 FN 636404625 FIND 63L1167-6404625 FIND 63L1DF1502 -261 FN 63L1 FIND 31 6404625 FIND 6404625
Restrictions 3040-01-428-4446
3040-01-428-4446 is a Pawl that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 3040-01-428-4446
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HDJB
Approved Sources 3040-01-428-4446
- Part Number
- Manufacturer
- Status
- 167-6404625 FIND 100
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- 211016048
- 53711 - Naval Sea Systems Command (Active)
- Secondary Buy
- Secondary Buy
- DF1502-261 FIND NO.100
- 43689 - Huntington Ingalls Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6404625
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 3040-01-428-4446
- Characteristic
- Specifications
- FIIG
- Specifications
- A524Q0

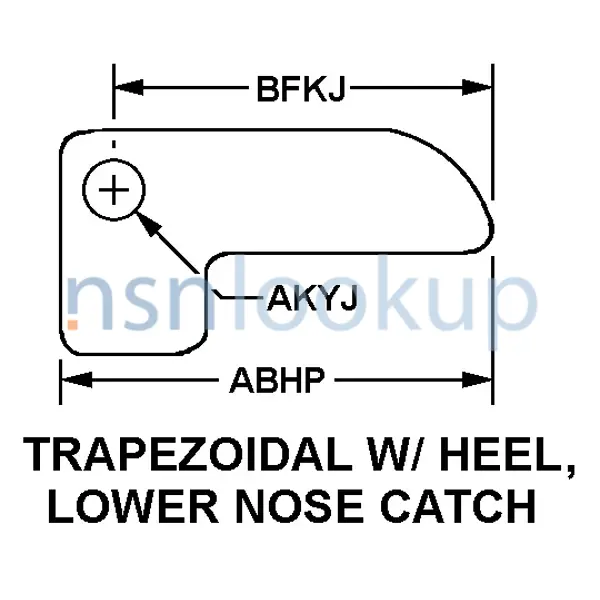

- Style Designator [STYL]
- Trapezoidal W/Heel, Lower Nose Catch
- Overall Length [ABHP]
- 2.880 Inches Nominal
- Pivot Pin Hole Diameter [AKYJ]
- 0.784 Inches Nominal
- Length From Pivot Pinhole Centerline To Point Of Engagement [BFKJ]
- 1.880 Inches Nominal
- Material Thickness [ABPX]
- 0.624 Inches Nominal
- Special Features [FEAT]
- Depth From Pivot Pinhole Centerline To Point Of Engagement:0.120 In.Nom;Material Document And Classification:Steel Comp 302
- End Item Identification [AGAV]
- Seawolf Class Ssn
Weapon Systems (WSDC) 3040-01-428-4446
DLA Procurement Analysis 3040-01-428-4446
Management Data 3040-01-428-4446
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3040-01-428-4446
Freight Information 3040-01-428-4446
3040-01-428-4446 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 197339. A Sub NMFC of X. It has a NMFC Description of WHEELS COG/GEAR/PINION I/S. 3040-01-428-4446 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 96710 which rates the freight between FCL and LCL. 3040-01-428-4446 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 3040-01-428-4446 is not classified as a special type of cargo when transported by water. 3040-01-428-4446 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
