3040-01-396-1530
Pawl
3040013961530 013961530 40014-2 40015 ITEM 5 40014 40015
A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified). View more Pawl
November 2023
1
Marketplace 3040-01-396-1530
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-396-1530 5+ Documents (More...)
/fsg-30/fsc-3040/us 3040-01-396-1530 Pawl 3040013961530 013961530,40014-2 40014-240015 ITEM 54001440015
Pawl 3040013961530 013961530,40014-2 40014-240015 ITEM 54001440015 PAWL 240 EA NS Request Quotation
WD4181-40014-6059 An item conforming to the definition of WIRING HARNESS with branches (forks). -6059
Pawl 3040013961530 013961530,40014-2 item - Upgrade for $1 a day Upgrade your Account Upgrade 3040
3040/us 3040-00-135-9274 Shaft Retaining Plate 3040001359274001359274 2811882BUWEPSDWG281188250915-40014
Pawl 3040013961530 013961530,40014-2 -01-396-1530 Pawl 3040013961530 013961530,40014 https//www.nsnlookup.com
Pawl 3040013961530 013961530,40014-2 item - Upgrade for $1 a day Upgrade your Account Upgrade 3040
-01-396-1530Pawl3040013961530 013961530 40014 -2 40015 ITEM 5 40014 40015 A catching device of various
-1 40015 ITEM 3 40014 40015 A shaft having two or more different diameters (greater than 0.031 inches
-1 A grouping of -1 50301-40014-1 A flexible item designed to be affixed to an object by adhesion or
Restrictions 3040-01-396-1530
3040-01-396-1530 is a Pawl that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 3040-01-396-1530
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 3040-01-396-1530
- Part Number
- Manufacturer
- Status
- 40014-2
- Manufacturer
- 66822 - Morpac Industries, Inc (Active)
- Primary Buy
- Primary Buy
- 40015 ITEM 5
- 66822 - Morpac Industries, Inc (Active)
- Primary Buy
- Primary Buy
- 40014
- 66822 - Morpac Industries, Inc (Active)
- Informational Drawing
- Informational Drawing
- 40015
- 66822 - Morpac Industries, Inc (Active)
- Informational Drawing
- Informational Drawing
Datasheet 3040-01-396-1530
- Characteristic
- Specifications
- FIIG
- Specifications
- A524Q0
- Style Designator [STYL]

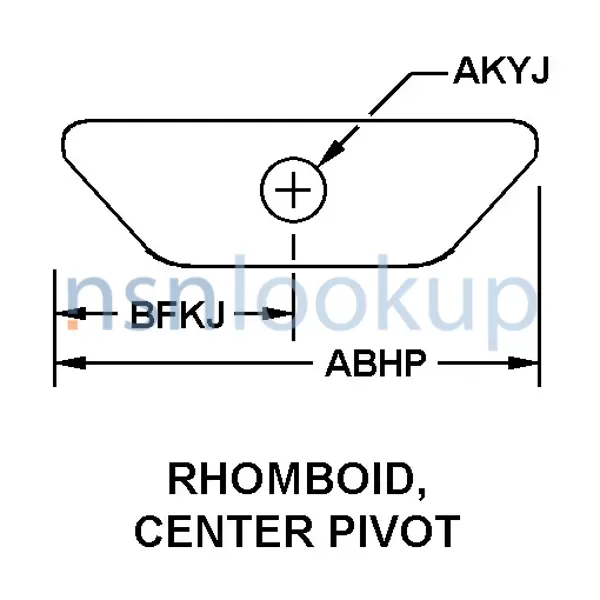

- Rhomboid, Center Pivot
- Overall Length [ABHP]
- 0.621 Inches Nominal
- Pivot Pin Hole Diameter [AKYJ]
- 0.220 Inches Nominal
- Length From Pivot Pinhole Centerline To Point Of Engagement [BFKJ]
- 0.310 Inches Nominal
- Material Thickness [ABPX]
- 0.320 Inches Nominal
- Special Features [FEAT]
- Depth From Pivot Pinhole Centerline To Point Of Engagement:0.260 In.Nom;Material Document And Classification:Steel Comp 630
