3040-01-389-4185
Extension Shaft
3040013894185 013894185 020986F
An item consisting of a length of rigid shafting designed to be coupled to the shaft of items such as variable capacitors, switches, hand cranks and the like. It is specifically designed to increase the length of the original shaft and may also effect a change in the shaft diameter. Includes coupling(s) or has processed end(s) to facilitate the attachment of a coupling device. May have provision for electrically insulating the extension shaft from the other shaft. View more Extension Shaft
May 2023
1
Marketplace 3040-01-389-4185
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-389-4185 1+ Documents (More...)
BUY NE FedMall Updated Every Day 3040-01-389-4185 RQST NE Updated Every Day 3040-01-389-4185 RQST
Updated Every Day 3040-01-389-4185 RQST NE Related Documents 3040-01-389-4185 1+ Documents ( More...
Restrictions 3040-01-389-4185
3040-01-389-4185 is a Extension Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3040-01-389-4185
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-01-389-4185
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- United States of America (ZZ)
Approved Sources 3040-01-389-4185
- Part Number
- Manufacturer
- Status
- 020986F
- Manufacturer
- 59556 - Kovatch Corp. (Active)
- Primary Buy
- Primary Buy
Datasheet 3040-01-389-4185
- Characteristic
- Specifications
- FIIG
- Specifications
- A530J0
- End Item Identification [AGAV]
- Kovatch Corp Firetruck,Models P22 And P24
- External Thread Length [ABXU]
- 0.500 Inches Nominal
- Material [MATT]
- Copper Alloy
- Nominal Thread Size [CQJX]
- 0.375 Inches Socket External
- Nominal Thread Size [CQJX]
- 0.375 Inches Socket Internal
- Outside Diameter [ABKV]
- 0.560 Inches Nominal

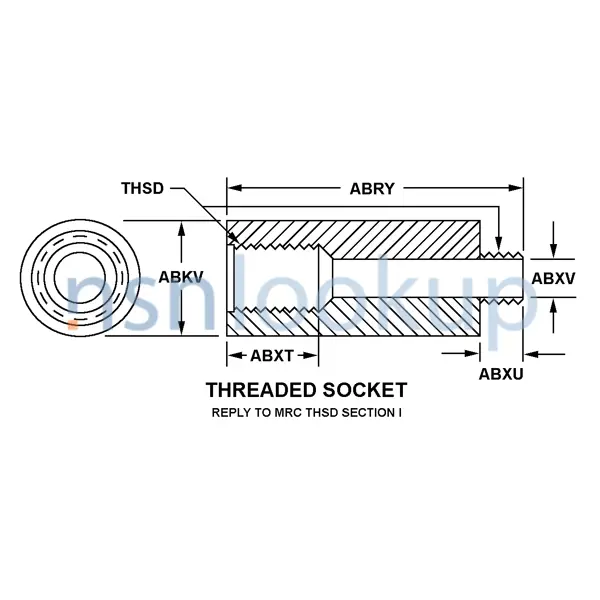

- Style Designator [STYL]
- Threaded Socket
- Internal Thread Length [ABXT]
- 0.620 Inches Nominal
- Length [ABRY]
- 1.500 Inches Nominal
- Shaft End Configuration [ABYD]
- Hexagon
- Shaft End Design [ABYC]
- Male And Female
- Special Features [FEAT]
- Battery Disconnect Extension
- Thread Quantity Per Inch [CMLP]
- 24 Socket External
- Thread Quantity Per Inch [CMLP]
- 24 Socket Internal
- Thread Series Designator [THSD]
- Unf Socket External
- Thread Series Designator [THSD]
- Unf Socket Internal
DLA Procurement Analysis 3040-01-389-4185
Management Data 3040-01-389-4185
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 3040-01-389-4185
Freight Information 3040-01-389-4185
3040-01-389-4185 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126900. A Sub NMFC of Z. It has a NMFC Description of POWER TRANS SHAFTING/SHAFTS. 3040-01-389-4185 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 65750 which rates the freight between FCL and LCL. 3040-01-389-4185 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-01-389-4185 is not classified as a special type of cargo when transported by water. 3040-01-389-4185 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3040-01-389-4185 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
