3040-01-378-3945
Pawl
3040013783945 013783945 11593696-1 11593696
A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified). View more Pawl
November 2023
1
Marketplace 3040-01-378-3945
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-378-3945 2+ Documents (More...)
United States (US) 4. 3040-01-378-3945 Marketplace Restrictions Approved Sources Datasheet Management
Every Day 3040-01-378-3945 RQST NE Updated Every Day 3040-01-378-3945 RQST Updated Every Day 3040-01
Details... 3040-00-133-5778 PAWL 13 EA NS Request Quotation Subscribe to View Vendor Details... 11593696
/www.nsnlookup.com /fsg-30/fsc-3040/us 3040-00-133-5778 Pawl 3040001335778 001335778,11593696 .. 11593696
Restrictions 3040-01-378-3945
3040-01-378-3945 is a Pawl that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3040-01-378-3945
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-01-378-3945
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
Approved Sources 3040-01-378-3945
- Part Number
- Manufacturer
- Status
- 11593696-1
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 11593696
- 19207 - U S Army Tank Automotive Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 3040-01-378-3945
- Characteristic
- Specifications
- FIIG
- Specifications
- A524Q0

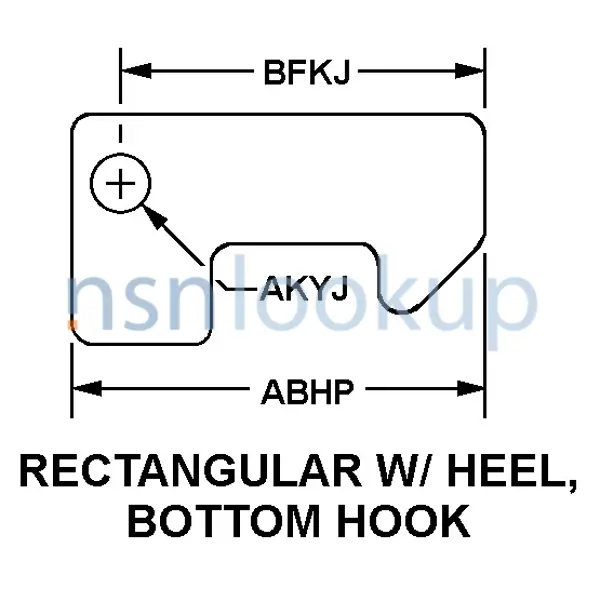

- Style Designator [STYL]
- Rectangular W/Heel, Bottom Hook
- Overall Length [ABHP]
- 3.938 Inches Nominal
- Pivot Pin Hole Diameter [AKYJ]
- 0.516 Inches Nominal
- Length From Pivot Pinhole Centerline To Point Of Engagement [BFKJ]
- 3.383 Inches Nominal
- Material Thickness [ABPX]
- 0.562 Inches Nominal
- Special Features [FEAT]
- Appl As Latch,Rear Door,Hull;Casehardened;Depth From Pivot Pinhole Centerline To Point Of Engagement:0.500 In.Nom;Length From Pivot Pinhole Centerline To Point Of Engagement:2.016 In.Nom;Material Document And Classification:Steel Comp 1025 Or Steel Comp 175-145
- End Item Identification [AGAV]
- 2350-01-352-3021;Carrier,Ammunition,Tracked
