3040-01-365-9150
Shouldered Shaft
3040013659150 013659150 MBEU145907
A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT. View more Shouldered Shaft
November 2023
4
Marketplace 3040-01-365-9150
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-365-9150 3+ Documents (More...)
BUY NE FedMall Updated Every Day 3040-01-365-9150 RQST NE Updated Every Day 3040-01-365-9150 RQST
Updated Every Day 3040-01-365-9150 RQST NE Related Documents 3040-01-365-9150 3+ Documents ( More...
Shouldered Shaft 3040013659150 013659150 BUY NE FedMall Updated Every Day 3040-01-365-9150 RQST
NE Updated Every Day 3040-01-365-9150 RQST Updated Every Day 3040-01-365-9150 RQST NE Related Documents
Shouldered Shaft 3040013659150 013659150 Restrictions Approved Sources Datasheet Management https
Restrictions 3040-01-365-9150
3040-01-365-9150 is a Shouldered Shaft that is an aviation critical safety item or flight safety critical aircraft part. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3040-01-365-9150
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-01-365-9150
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKE
Approved Sources 3040-01-365-9150
- Part Number
- Manufacturer
- Status
- MBEU145907
- Manufacturer
- 30003 - Naval Air Systems Command Managed (Active)
- Primary Buy
- Primary Buy
- MBEU145907
- U1604 - Martin-Baker Aircraft Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3040-01-365-9150
- Characteristic
- Specifications
- FIIG
- Specifications
- A23200
- Material [MATT]
- Steel Corrosion Resisting
- Material Document And Classification [MDCL]
- Ams 5659 H900 Assn Std Single Material Response
- First End Style [AAGZ]
- Square (Round Corners)
- First End Diameter [AMDL]
- 0.4350 Inches Nominal
- End Similarity [AAHN]
- Not Identical

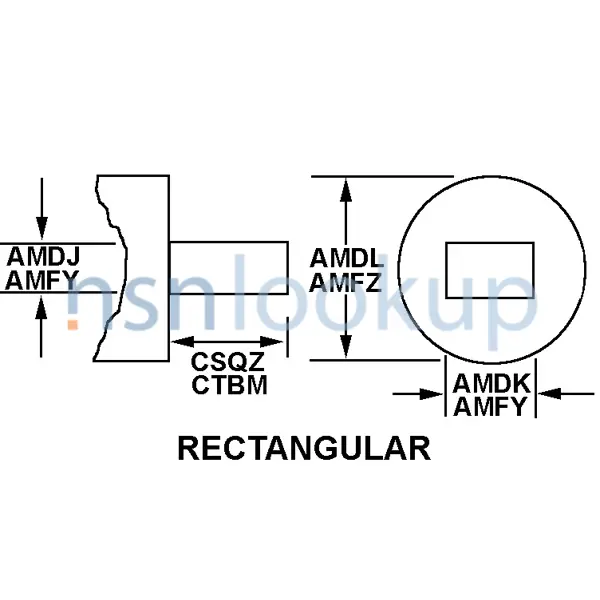

- Second End Style [AAHP]
- Rectangular
- Second End Tongue Thickness [AMFX]
- 0.244 Inches Nominal
- Second End Tongue Width [AMFY]
- 0.4225 Inches Nominal
- Second End Diameter [AMFZ]
- 0.5585 Inches Nominal
- Second End Step Length [CTBM]
- 0.252 Inches Nominal
- Largest Step Diameter [CSPY]
- 0.5585 Inches Nominal
- Overall Length [ABHP]
- 1.377 Inches Nominal
- Step Quantity [ATPC]
- 4
- Special Features [FEAT]
- First End Also Flat Grooved,Second End Tongue Semicircular;Flight Safety Critical
- Criticality Code Justification [CRTL]
- Feat
Weapon Systems (WSDC) 3040-01-365-9150
DLA Procurement Analysis 3040-01-365-9150
- Last Stock Position:
- 12 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3040-01-365-9150
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 3040-01-365-9150
Freight Information 3040-01-365-9150
3040-01-365-9150 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126900. A Sub NMFC of Z. It has a NMFC Description of POWER TRANS SHAFTING/SHAFTS. 3040-01-365-9150 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 65750 which rates the freight between FCL and LCL. 3040-01-365-9150 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-01-365-9150 is not classified as a special type of cargo when transported by water. 3040-01-365-9150 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
