3040-01-325-9500
Shouldered Shaft
3040013259500 013259500 520-4863665 ITEM 4 520-4863665 ITEM 4L1
A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT. View more Shouldered Shaft
May 2023
7
Marketplace 3040-01-325-9500
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-325-9500 5+ Documents (More...)
Shouldered Shaft 3040013259500 013259500 Primary Buy RNCC 3 RNVC 2 DAC F 520-4863665 ITEM 4 https
Shouldered Shaft 3040013259500 013259500 006460132 5950-00-646-0132 5950006460132 006460132 https
us 5950-00-648-0132 59500064801320064801325950-00-648-01325950006480132006480132 Restrictions 3040-01-325-9500
Shouldered Shaft 3040013259500 013259500 000650132 5950-00-065-0132 5950000650132 000650132 https
Shouldered Shaft 3040013259500 013259500 006450132 5950-00-645-0132 5950006450132 006450132 https
NumberManufacturerStatus87615-2003A ITEM 4 96169 - Electric Boat Corporation (Active) Primary Buy RNCC 3 RNVC 2 DAC F 520-4863665 ITEM 4
Restrictions 3040-01-325-9500
IUID Required
3040-01-325-9500 is a Shouldered Shaft that is specifically designed to be or selected as being nuclear hard. In addition it has other critical features such as tolerance, fit restrictions or application.This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3040-01-325-9500
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-01-325-9500
- US Navy (N1H5)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- JB
- Supplementary Receivers:
- GG
Approved Sources 3040-01-325-9500
- Part Number
- Manufacturer
- Status
- 520-4863665 ITEM 4
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Incomplete Reference
- Incomplete Reference
- 520-4863665 ITEM 4L1
- 03950 - Naval Inventory Control Point (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3040-01-325-9500
- Characteristic
- Specifications
- FIIG
- Specifications
- A23200
- End Item Identification [AGAV]
- Capstan
- Criticality Code Justification [CRTL]
- Zzzy
- End Similarity [AAHN]
- Not Identical
- First End Diameter [AMDL]
- 4.9940 Inches Minimum And 4.9950 Inches Maximum
- First End Spline Minor Diameter [AMDN]
- 4.2910 Inches Minimum And 4.2960 Inches Maximum
- First End Spline Quantity [BDSQ]
- 10
- First End Style [AAGZ]
- Splined (Straight)
- First End Spline Length [AMDM]
- 6.5000 Inches Nominal
- First End Spline Major Diameter [AMDP]
- 4.9940 Inches Minimum And 4.9950 Inches Maximum
- Material Document And Classification [MDCL]
- Qq-N-286,Cl A,Form 2 Fed Spec Single Material Response
- Material [MATT]
- Nickel Alloy
- Largest Step Diameter [CSPY]
- 4.9970 Inches Minimum And 5.0000 Inches Maximum
- Reference Number Differentiating Characteristics [ZZZY]
- Quality Control In Accordance With Navships 0948-045-7010 Material Identification And Control Instruction For Level 1 Items
- Second End Diameter [AMFZ]
- 3.1100 Inches Nominal
- Second End External Thread Length [AMHA]
- 0.7500 Inches Nominal

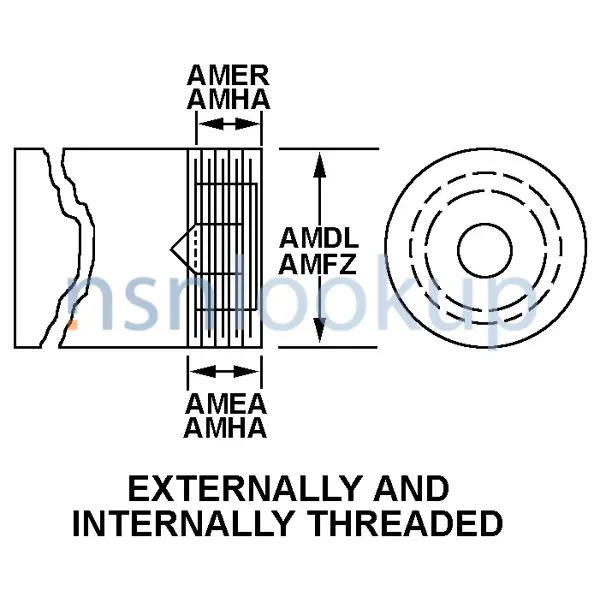

- Second End Style [AAHP]
- Externally And Internally Threaded
- Second End Internal Thread Length [AMHP]
- 1.7500 Inches Nominal
- Overall Length [ABHP]
- 112.000 Inches Nominal
- Step Quantity [ATPC]
- 8
- Surface Finish [CSYM]
- 32.0 Microinches
Management Data 3040-01-325-9500
Navy
- Cognizance:
- 1H
- Consumable material assigned to NAVICP MECH for inventory management
Naval Inventory Control Point, Mechanicsburg
- Special Material ID:
- L1
- An item that supports either a SUBSAFE or Level 1 system that has undergone the extreme material control and quality assurance techniques that provide objective evidence of its acceptance for its appropriate application. Each item has certification papers (or special markings that provide traceability to the certification) that pedigree its material and physical properties, provide traceability, to manufacturer, contract list and lot, and document the quality assurance system and test requirements applied to the item.
- Issue, Repair, Requisition Restriction Code:
- 00
- No Restriction
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
NATO Stock Numbers Related to 3040-01-325-9500
Freight Information 3040-01-325-9500
3040-01-325-9500 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 132330. A Sub NMFC of X. It has a NMFC Description of TRANSMISSIONS/CLUTCHES/PARTS,NOI. 3040-01-325-9500 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 3040-01-325-9500 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 64340 which rates the freight between FCL and LCL. 3040-01-325-9500 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-01-325-9500 is not classified as a special type of cargo when transported by water. 3040-01-325-9500 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3040-01-325-9500
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- Wood Blocking and Bracing, Fasteners, or Steel Strapping, for Tie-down purposes. Rubber tired wheels shall be blocked clear of the floor of the crate or skid and shall not be load bearing
- Not Applicable
- ASTM-D6880, Class 2, Heavy Duty Wood Box
- Open for inspection or use only
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
