3040-01-317-2779
Straight Shaft
3040013172779 013172779 JCM-14682-001 JCM-14682
A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE. View more Straight Shaft
November 2023
3
Marketplace 3040-01-317-2779
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-317-2779 5+ Documents (More...)
/fsg-30/fsc-3040/us
(Identification) 1/2 NSN 3040-01-317-2779 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 3040-01-317-2779 RQST NE Updated Every Day 3040-01-317-2779 RQST
Straight Shaft 3040013172779 013172779 for $1 a day Upgrade your Account Upgrade 3040-01-317-2779Straight
Shaft3040013172779 013172779 JCM-14682 -001 JCM-14682 A straight shaft having two or more of the following
Straight Shaft 3040013172779 013172779 for $1 a day Upgrade your Account Upgrade 3040-01-317-2779Straight
Shaft3040013172779 013172779 JCM-14682 -001 JCM-14682 A straight shaft having two or more of the following
Straight Shaft 3040013172779 013172779 for $1 a day Upgrade your Account Upgrade 3040-01-317-2779Straight
Shaft3040013172779 013172779 JCM-14682 -001 JCM-14682 A straight shaft having two or more of the following
Restrictions 3040-01-317-2779
3040-01-317-2779 is a Straight Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3040-01-317-2779
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-01-317-2779
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
Approved Sources 3040-01-317-2779
- Part Number
- Manufacturer
- Status
- JCM-14682-001
- Manufacturer
- 58905 - Strike Weapons And Unmanned Aviation (Active)
- Primary Buy
- Primary Buy
- JCM-14682
- 58905 - Strike Weapons And Unmanned Aviation (Active)
- Informational Drawing
- Informational Drawing
Datasheet 3040-01-317-2779
- Characteristic
- Specifications
- FIIG
- Specifications
- A23200
- Material [MATT]
- Steel Corrosion Resisting
- Material Document And Classification [MDCL]
- Ams5732 Assn Std Single Material Response
- Surface Finish [CSYM]
- 250.0 Microinches
- First End Style [AAGZ]
- Hexagonal
- First End Diameter [AMDL]
- 0.5000 Inches Nominal
- First End Width Across Flats [ACKY]
- 0.3750 Inches Nominal
- First End Step Length [CSQZ]
- 0.6300 Inches Nominal
- End Similarity [AAHN]
- Not Identical
- Second End Style [AAHP]

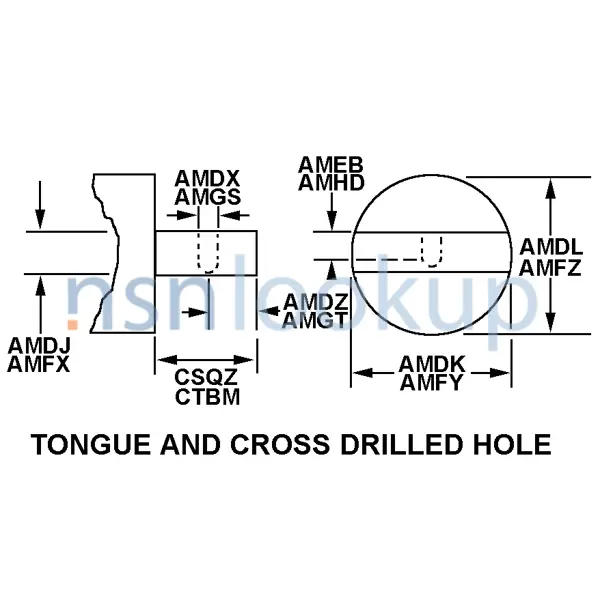

- Tongue And Cross Drilled Hole
- Second End Tongue Thickness [AMFX]
- 0.2500 Inches Nominal
- Second End Tongue Width [AMFY]
- 0.5000 Inches Nominal
- Second End Diameter [AMFZ]
- 0.5000 Inches Nominal
- Second End Hole Diameter [AMGS]
- 0.1340 Inches Nominal
- Second End Distance From Hole Center To End [AMGT]
- 0.1860 Inches Nominal
- Second End Hole Depth [AMHD]
- 0.1340 Inches Nominal
- Second End Step Length [CTBM]
- 0.6200 Inches Nominal
- Overall Length [ABHP]
- 32.000 Inches Nominal
