3040-01-290-5046
Linear Actuating Cylinder Assembly
3040012905046 012905046 RC-1012
A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies. View more Linear Actuating Cylinder Assembly
May 2023
11
Marketplace 3040-01-290-5046
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-290-5046 5+ Documents (More...)

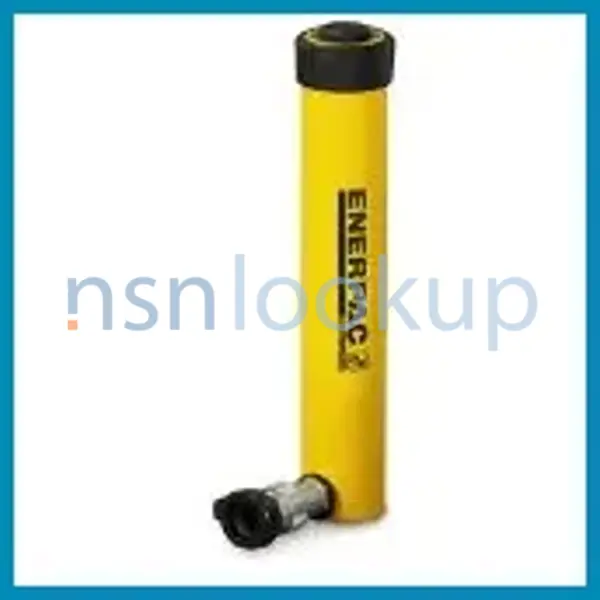

Linear Actuating Cylinder Assembly 012905046 Photo 1/4 NSN 3040-01-290-5046 (Identification) 2/4 NSN
3040-01-290-5046 (Identification) 3/4 NSN RC-1012 CYLINDER ASSEMBLY,ACTUATING,LINEAR 2 EA NS Request
your Account Upgrade 5935-01-310-7670Electrical https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-01-290-5046
Linear Actuating Cylinder Assembly 012905046 Request Quotation Updated Every Day 3040-01-290-5046
Restrictions 3040-01-290-5046
3040-01-290-5046 is a Linear Actuating Cylinder Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 3040-01-290-5046
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Canada (ZC01)
- Effective Date:
- 1 Nov 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2014
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 3040-01-290-5046
- Part Number
- Manufacturer
- Status
- RC-1012
- Manufacturer
- 26952 - Enerpac Tool Group Corp (Active)
- Original Design
- Original Design
Datasheet 3040-01-290-5046
- Characteristic
- Specifications
- FIIG
- Specifications
- A34200
- Design Characteristics [CKSD]
- Single Acting Single Cylinder
- Integral Valve Operation Method [CKRM]
- Hydraulic
- Overall Diameter [ADAV]
- 2.250 Inches Nominal
- Extended Length [ATEM]
- 27.750 Inches Nominal
- Compressed Length [AMQZ]
- 15.750 Inches Nominal
- Body Material [AAFZ]
- Steel
- Bore Diameter [ABXV]
- 1.688 Inches Nominal
- First Piston Rod End Style [CKSF]
- Spherical
- First End Outside Diameter [AAHB]
- 1.500 Inches Nominal
- Mounting Type And Location [CLML]
- Lug Cylinder Base
- Mounting Provision [ABDR]
- Threaded Mounting Holes
- Mounting Provision Arrangement Style [BBBW]
- Two Hole
- Center To Center Distance Between Mounting Provisions [CLMR]
- 1.560 Inches Nominal
- Mounting Facility Thread Series Designator [CDTD]
- Unc
- Mounting Facility Thread Diameter [CDTF]
- 0.312 Inches Nominal
- Mounting Facility Thread Quantity Per Inch [CDTG]
- 18
- Mounting Facility Thread Class [AKBM]
- 2B
- Mounting Facility Thread Direction [AKBN]
- Right-Hand
- Mounting Facility Thread Length [CLMN]
- 0.250 Inches Nominal
- Port Location And Quantity [CLMS]
- 1 Cylinder Base
- Port Style [CLMT]
- Flare
- Port Thread Series Designator [CLMW]
- Npt
- Port Nominal Pipe Thread Size [CLMZ]
- 0.375 Inches
- Seat Angle In Deg [AJFY]
- 37.0
- Special Features [FEAT]
- Includes Cr-400 Coupler W/Dust Cap
