3040-01-284-7276
Remote Control Lever
3040012847276 012847276 90-2330-3
A rigid item usually in the form of an arm of various shapes and cross sections, containing two or more holes so spaced that one serves as a pivot with or without hubs and must have a definite means for securing to a shaft (such as threaded hole for set-screw, keyway(s), splines, serrations or some clamping device). The other hole(s) connect(s) to CONNECTING LINK, RIGID; WIRE ROPE ASSEMBLY, SINGLE LEG; or CLEVIS, ROD END; to provide transmission of movement to other parts of the mechanism. See also BELL CRANK. For manually operated items see LEVER, MANUAL CONTROL. View more Remote Control Lever
November 2023
4
Marketplace 3040-01-284-7276
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-284-7276 1+ Documents (More...)
United States (US) 4. 3040-01-284-7276 Marketplace Restrictions Approved Sources Datasheet Management
LEVER,REMOTE CONTROL 12 EA NS Request Quotation Updated Every Day 3040-01-284-7276 RQST NE Updated
Restrictions 3040-01-284-7276
3040-01-284-7276 is a Remote Control Lever that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 3040-01-284-7276
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- Singapore (YJ01)
- Effective Date:
- 1 Aug 1997
Approved Sources 3040-01-284-7276
- Part Number
- Manufacturer
- Status
- 90-2330-3
- Manufacturer
- 81205 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
Datasheet 3040-01-284-7276
- Characteristic
- Specifications
- FIIG
- Specifications
- A524P0
- Bore Type [ASBP]
- Splined
- Center To Center Distance Between Link And Shaft Holes [BFGW]
- 3.500 Inches Nominal
- End Item Identification [AGAV]
- Used On Control Assy. For Kc-135 Acft
- Features Provided [CBBL]
- Split End Screw Clamping Feature
- Material Document And Classification [MDCL]
- Qq-A-367 Fed Spec Single Material Response
- Minor Diameter [AGJR]
- 1.7000 Inches Nominal
- Material [MATT]
- Aluminum Alloy
- Link End Hole Diameter [BFHA]
- 0.9007 Inches Nominal
- Link End Thickness [BFGY]
- 0.820 Inches Nominal
- Major Diameter [AAZR]
- 1.840 Inches Nominal
- Shaft End Thickness [BFGX]
- 0.3425 Inches Nominal
- Shaft Securing Method [CZLP]
- Spline
- Overall Width [ABMK]
- 1.980 Inches Nominal
- Spline Quantity [ABSA]
- 35

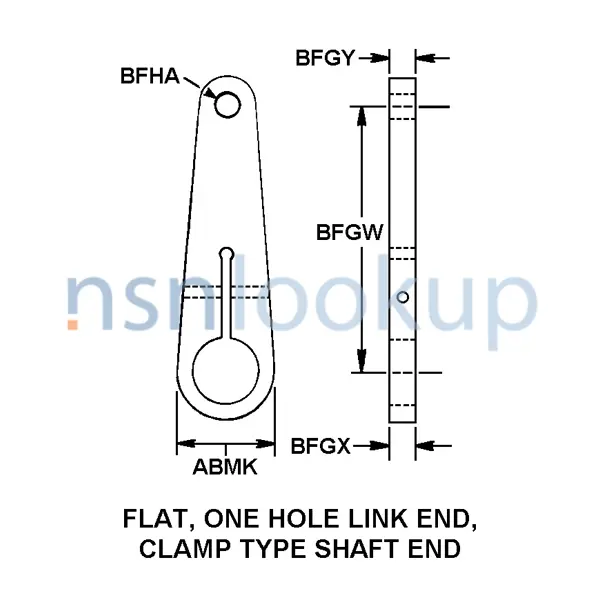

- Style Designator [STYL]
- Flat, One Hole Link End, Clamp Type Shaft End
Weapon Systems (WSDC) 3040-01-284-7276
DLA Procurement Analysis 3040-01-284-7276
- Last Stock Position:
- 15 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3040-01-284-7276
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- FL
- C-135 STRATOLIFTER
- Price Validation Code:
- P
- The current standard price is the initial negotiated provisioned price.
This is the price paid by DoD for the item as the result of price negotiation of the Provisioned Item Order (PIO) or other initial negotiated price.
ZOP or Standard Price challenges are permissible but should be supported with adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 3040-01-284-7276
Freight Information 3040-01-284-7276
3040-01-284-7276 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 132330. A Sub NMFC of X. It has a NMFC Description of TRANSMISSIONS/CLUTCHES/PARTS,NOI. 3040-01-284-7276 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64340 which rates the freight between FCL and LCL. 3040-01-284-7276 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-01-284-7276 is not classified as a special type of cargo when transported by water. 3040-01-284-7276 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3040-01-284-7276
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Vendor's Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 3040-01-284-7276 4 Records
Contracting Technical Data File (CTDF) 3040-01-284-7276 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
