3040-01-237-1296
Shouldered Shaft
3040012371296 012371296 A82302-5
A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT. View more Shouldered Shaft
January 2023
2
Marketplace 3040-01-237-1296
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-237-1296 1+ Documents (More...)
3040-01-237-1296 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-01-237-1296
3040-01-237-1296 RQST NE Related Documents 3040-01-237-1296 1+ Documents ( More... ) https//www.nsnlookup.com
Restrictions 3040-01-237-1296
3040-01-237-1296 is a Shouldered Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3040-01-237-1296
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-01-237-1296
- US Coast Guard (C056)
- Effective Date:
- 1 Jul 2010
- Former MOE Rule:
- C163
- Supplementary Receivers:
- XH
Approved Sources 3040-01-237-1296
- Part Number
- Manufacturer
- Status
- A82302-5
- Manufacturer
- 82106 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 3040-01-237-1296
- Characteristic
- Specifications
- FIIG
- Specifications
- A23200
- End Similarity [AAHN]
- Not Identical
- First End Diameter [AMDL]
- 0.7812 Inches Nominal
- First End Groove Diameter [AAHH]
- 0.2500 Inches Nominal
- First End Groove Width [AAHG]
- 0.1562 Inches Nominal
- First End Distance Between First And Second Groove Centers [AMFC]
- 0.281 Inches Nominal
- First End Distance From End To Groove [AMCY]
- 0.750 Inches Nominal
- First End Spline Quantity [BDSQ]
- 12
- First End Style [AAGZ]

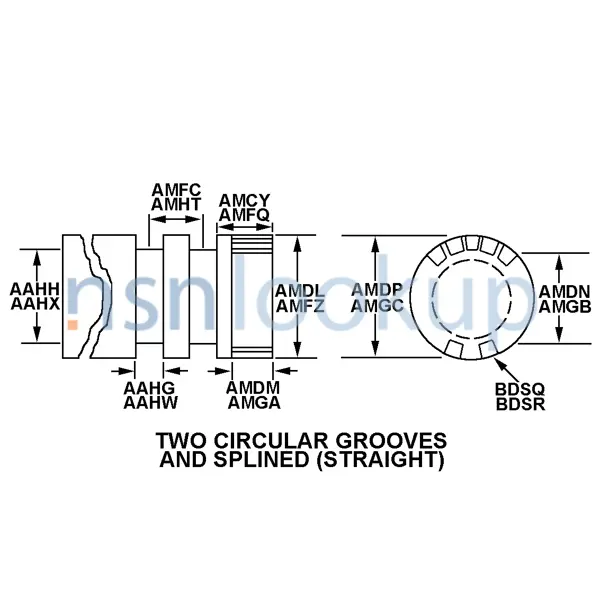

- Two Circular Grooves And Splined (Straight_)
- First End Spline Length [AMDM]
- 0.688 Inches Nominal
- First End Spline Major Diameter [AMDP]
- 0.6562 Inches Nominal
- First End Spline Minor Diameter [AMDN]
- 0.4688 Inches Nominal
- Material [MATT]
- Steel Corrosion Resisting
- Largest Step Diameter [CSPY]
- 0.750 Inches Nominal
- Second End Distance Between First And Second Groove Centers [AMHT]
- 0.281 Inches Nominal
- Second End Distance From End To Groove [AMFQ]
- 1.156 Inches Nominal
- Second End Diameter [AMFZ]
- 0.7500 Inches Nominal
- Second End Spline Length [AMGA]
- 1.000 Inches Nominal
- Second End Spline Major Diameter [AMGC]
- 0.5625 Inches Nominal
- Second End Spline Minor Diameter [AMGB]
- 0.4062 Inches Nominal
- Second End Spline Quantity [BDSR]
- 18
- Second End Style [AAHP]
- Two Circular Grooves And Splined (Straight_)
- Second End Groove Diameter [AAHX]
- 0.0938 Inches Nominal
- Second End Groove Width [AAHW]
- 0.2500 Inches Nominal
- Overall Length [ABHP]
- 2.844 Inches Nominal
- Step Quantity [ATPC]
- 7
Management Data 3040-01-237-1296
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2010
- US Coast Guard (GP)
- EA
- Subscribe
- 1
- EA
Coast Guard
- Inventory Activity:
- A
- Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required
- Serial Number Control:
- 0
- Item not controlled by serial number
- Material Control:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 3040-01-237-1296
Freight Information 3040-01-237-1296
3040-01-237-1296 has freight characteristics.. 3040-01-237-1296 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
