3040-01-203-5729

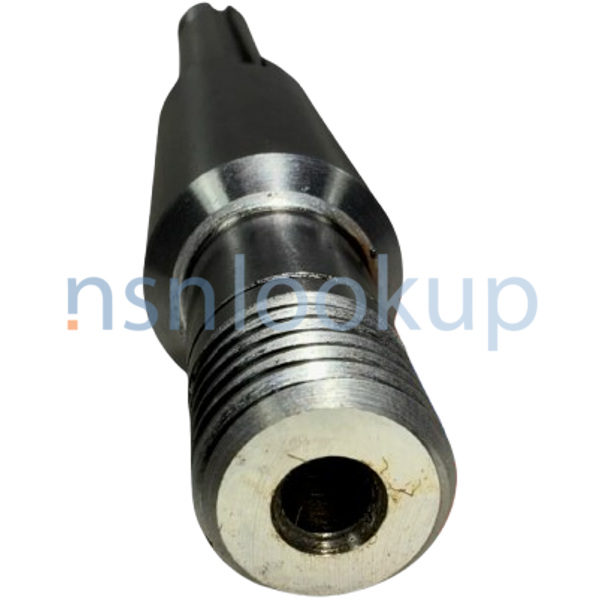

Shouldered Shaft
3040012035729 012035729 12253612
A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT. View more Shouldered Shaft
October 2025
2
Marketplace 3040-01-203-5729
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-203-5729 1+ Documents (More...)
BUY NE FedMall Updated Every Day 3040-01-203-5729 RQST NE Updated Every Day 3040-01-203-5729 RQST
Updated Every Day 3040-01-203-5729 RQST NE Related Documents 3040-01-203-5729 1+ Documents ( More...
Restrictions 3040-01-203-5729
3040-01-203-5729 is a Shouldered Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3040-01-203-5729
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-01-203-5729
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
Approved Sources 3040-01-203-5729
- Part Number
- Manufacturer
- Status
- 12253612
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 3040-01-203-5729
- Characteristic
- Specifications
- FIIG
- Specifications
- A23200
- End Similarity [AAHN]
- Identical
- First End Diameter [AMDL]
- 0.7496 Inches Minimum And 0.7501 Inches Maximum
- First End Groove Diameter [AAHH]
- 0.6250 Inches Nominal
- First End Groove Width [AAHG]
- 0.1250 Inches Nominal
- First End Distance From End To Groove [AMCY]
- 0.500 Inches Nominal
- First End External Thread Length [AMEA]
- 0.500 Inches Nominal
- First End Style [AAGZ]
- Circular Grooved And Externally Threaded
- Material [MATT]
- Steel Comp 1040
- Largest Step Diameter [CSPY]
- 1.100 Inches Minimum And 1.125 Inches Maximum
- Second End External Thread Length [AMHA]
- 0.875 Inches Nominal
- Second End Groove Diameter [AAHX]
- 0.7250 Inches Nominal
- Second End Groove Width [AAHW]
- 0.9380 Inches Nominal
- Second End Diameter [AMFZ]
- 0.8752 Inches Minimum And 0.8756 Inches Maximum
- Second End Distance From End To Groove [AMFQ]
- 0.875 Inches Nominal
- Second End Style [AAHP]
- Circular Grooved And Externally Threaded
- Overall Length [ABHP]
- 9.750 Inches Nominal
- Step Quantity [ATPC]
- 3
Weapon Systems (WSDC) 3040-01-203-5729
DLA Procurement Analysis 3040-01-203-5729
- Last Stock Position:
- 12 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3040-01-203-5729
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- M4
- Armored Carriers
M548 Family of Vehicles, Block 1 Modification
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 3040-01-203-5729
Freight Information 3040-01-203-5729
3040-01-203-5729 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126900. A Sub NMFC of Z. It has a NMFC Description of POWER TRANS SHAFTING/SHAFTS. 3040-01-203-5729 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 65750 which rates the freight between FCL and LCL. 3040-01-203-5729 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-01-203-5729 is not classified as a special type of cargo when transported by water. 3040-01-203-5729 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
