3040-01-192-9683
Shouldered Shaft
3040011929683 011929683 520-4674705 ITEM 11 87611-1419 ITEM 11 87611-1419 520-4674705
A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT. View more Shouldered Shaft
May 2023
2
Marketplace 3040-01-192-9683
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-192-9683 5+ Documents (More...)
BUY NE FedMall Updated Every Day 3040-01-192-9683 RQST NE Updated Every Day 3040-01-192-9683 RQST
Updated Every Day 3040-01-192-9683 RQST NE Related Documents 3040-01-192-9683 5+ Documents ( More...
/fsg-31/fsc-3120/us
ITEM 9 87611-1419 ITEM 9 A tubular shaped unthreaded item with or without a flange at one end designed
Shouldered Shaft 3040011929683 011929683 RQST NE Updated Every Day 3040-01-192-9683 RQST https/
/fsg-31/fsc-3120/us
ITEM 5 87611-1419 ITEM 5 A tubular shaped item with or without flange(s) designed to reduce friction
https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-128-6109 Sleeve Bearing 3120011286109011286109 520-4674705
/fsg-31/fsc-3120/us
ITEM 26 87611-1419 ITEM 26 A tubular shaped item with or without flange(s) designed to reduce friction
a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 87611-1419
1984 ITEM 11 520-467470587611-1419 A shaft having two or more different diameters (greater ITEM 44 87611-1419
https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-01-192-9683 Shouldered Shaft 3040011929683 011929683
Restrictions 3040-01-192-9683
3040-01-192-9683 is a Shouldered Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3040-01-192-9683
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-01-192-9683
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTJBHD
Approved Sources 3040-01-192-9683
- Part Number
- Manufacturer
- Status
- 520-4674705 ITEM 11
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 87611-1419 ITEM 11
- 96169 - Electric Boat Corporation (Active)
- Secondary Buy
- Secondary Buy
- 87611-1419
- 96169 - Electric Boat Corporation (Active)
- Informational Drawing
- Informational Drawing
- 520-4674705
- 80064 - Naval Ship Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 3040-01-192-9683
- Characteristic
- Specifications
- FIIG
- Specifications
- A23200
- Material [MATT]
- Nickel Alloy
- Material Document And Classification [MDCL]
- Qq-N-281 Cl A Form 1 Fed Spec Single Material Response
- Surface Finish [CSYM]
- 125.0 Microinches
- First End Style [AAGZ]
- Indented Flat Keyway
- First End Keyway Width [AMCZ]
- 0.3760 Inches Nominal
- First End External Keyway Length [AMDE]
- 1.630 Inches Nominal
- First End Keyway Depth [AMDG]
- 0.222 Inches Nominal
- First End Distance From Keyway Center To End [AMDH]
- 1.885 Inches Nominal
- First End Diameter [AMDL]
- 1.2470 Inches Nominal
- End Similarity [AAHN]
- Not Identical
- Second End Style [AAHP]

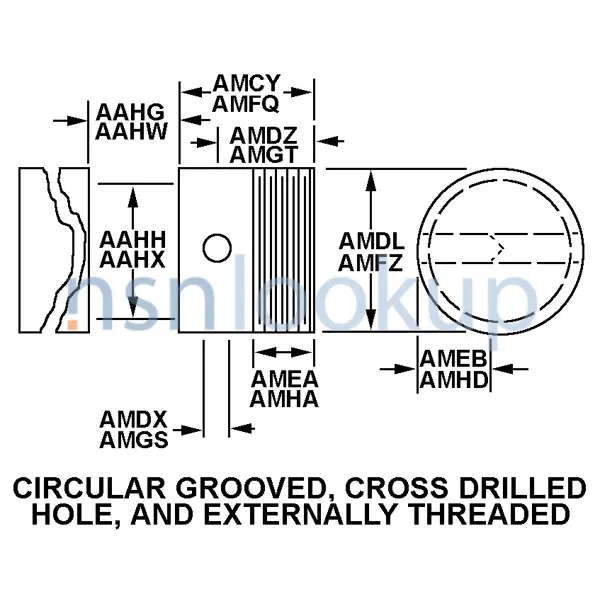

- Circular Grooved, Cross Drilled Hole, And Externally Threaded
- Second End Groove Width [AAHW]
- 0.1900 Inches Nominal
- Second End Groove Diameter [AAHX]
- 0.5900 Inches Nominal
- Second End Distance From End To Groove [AMFQ]
- 0.750 Inches Nominal
- Second End Diameter [AMFZ]
- 0.7500 Inches Nominal
- Second End Hole Diameter [AMGS]
- 0.2430 Inches Nominal
- Second End Distance From Hole Center To End [AMGT]
- 0.433 Inches Nominal
- Second End External Thread Length [AMHA]
- 0.750 Inches Nominal
- Second End Hole Depth [AMHD]
- 0.118 Inches Nominal
- Largest Step Diameter [CSPY]
- 1.247 Inches Nominal
- Overall Length [ABHP]
- 9.380 Inches Nominal
- Step Quantity [ATPC]
- 3
