3040-01-100-7694
Shouldered Shaft
3040011007694 011007694 12269453
A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT. View more Shouldered Shaft
July 2023
12
Marketplace 3040-01-100-7694
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-100-7694 2+ Documents (More...)
(Identification) 1/2 NSN 3040-01-100-7694 (Identification) 2/2 - - 1.
United States (US) 4. 3040-01-100-7694 Marketplace Restrictions Approved Sources Datasheet Management
Shouldered Shaft 3040011007694 011007694 Datasheet 3040-01-100-7694 CharacteristicSpecificationsFIIGA23200End
Restrictions 3040-01-100-7694
3040-01-100-7694 is a Shouldered Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3040-01-100-7694
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-01-100-7694
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 10 Nov 2010
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
Approved Sources 3040-01-100-7694
- Part Number
- Manufacturer
- Status
- 12269453
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 3040-01-100-7694
- Characteristic
- Specifications
- FIIG
- Specifications
- A23200
- End Item Identification [AGAV]
- 1450-00-930-8749
- End Similarity [AAHN]
- Not Identical
- First End Diameter [AMDL]
- 0.9995 Inches Minimum And 1.0000 Inches Maximum
- First End Keyway Depth [AMDG]
- 0.3240 Inches Nominal
- First End Keyway Width [AMCZ]
- 0.2487 Inches Minimum And 0.2505 Inches Maximum
- First End External Keyway Length [AMDE]
- 1.6260 Inches Nominal
- First End Style [AAGZ]
- Flat Keyway
- Material [MATT]
- Steel
- Largest Step Diameter [CSPY]
- 1.186 Inches Minimum And 1.250 Inches Maximum
- Second End Diameter [AMFZ]
- 0.9995 Inches Minimum And 1.0000 Inches Maximum
- Second End Distance Between Keyway Centers [AMHQ]
- 1.1200 Inches Nominal
- Second End Distance From Keyway Center To End [AMFW]
- 1.1200 Inches Nominal
- Second End External Keyway Length [AMFS]
- 1.6260 Inches Nominal

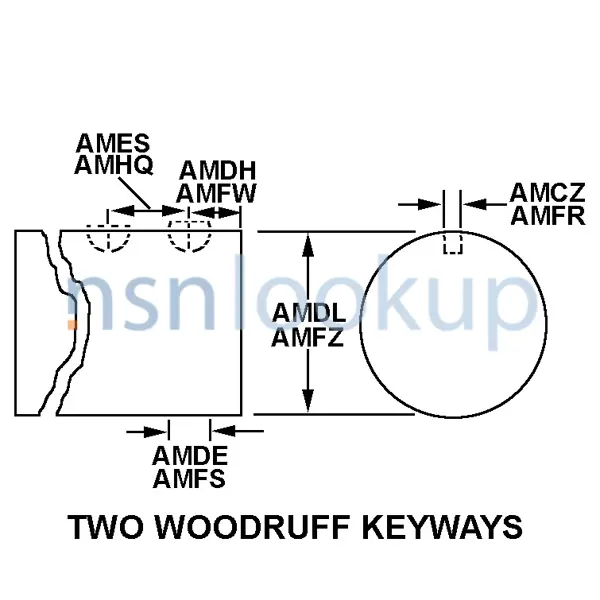

- Second End Style [AAHP]
- Two Woodruff Keyways
- Second End Keyway Width [AMFR]
- 0.2487 Inches Minimum And 0.2505 Inches Maximum
- Overall Length [ABHP]
- 37.310 Inches Nominal
- Step Quantity [ATPC]
- 2
Weapon Systems (WSDC) 3040-01-100-7694
DLA Procurement Analysis 3040-01-100-7694
- Last Stock Position:
- 16 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3040-01-100-7694
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 3040-01-100-7694
Freight Information 3040-01-100-7694
3040-01-100-7694 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126900. A Sub NMFC of Z. It has a NMFC Description of POWER TRANS SHAFTING/SHAFTS. 3040-01-100-7694 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 65750 which rates the freight between FCL and LCL. 3040-01-100-7694 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-01-100-7694 is not classified as a special type of cargo when transported by water. 3040-01-100-7694 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3040-01-100-7694
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 40.0" H x 4.0" W x 4.0" L
- --
- --
- Preservative Coating Only
- Any Suitable Process
- 40.0" H x 4.0" W x 4.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 2, Corrosion Preventive, Solvent Cutback, Cold Application, Soft Film
- MIL-PRF-121, Type I, Medium Duty, Greaseproof, Waterproof Barrier
- ASTM-D4727, Fiberboard used as Pads, Cells, Die-cuts or Sleeves
- --
- ASTM - D5118, Fiberboard Box
- No special marking
- MIL-PRF-121, Type I, Medium Duty, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- No Requirement
