3040-01-078-1518
Pawl
3040010781518 010781518 A382A004-101
A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified). View more Pawl
May 2023
13
Marketplace 3040-01-078-1518
Request a Quotation from participating marketplace vendors
Related Documents 3040-01-078-1518 1+ Documents (More...)
3040-01-078-1518 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-01-078-1518
Pawl 3040010781518010781518,A382A004-101 A382A004-101 A catching device of various shapes and cross
Restrictions 3040-01-078-1518
3040-01-078-1518 is a Pawl that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 3040-01-078-1518
- US Air Force (FUGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FUAX
- Poland (WP01)
- Effective Date:
- 1 Feb 2007
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
Approved Sources 3040-01-078-1518
- Part Number
- Manufacturer
- Status
- A382A004-101
- Manufacturer
- 88818 - Kearfott Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 3040-01-078-1518
- Characteristic
- Specifications
- FIIG
- Specifications
- A524Q0
- Material Thickness [ABPX]
- 0.375 Inches Nominal
- Length From Pivot Pinhole Centerline To Point Of Engagement [BFKJ]
- 0.730 Inches Minimum And 0.740 Inches Maximum
- Pivot Pin Hole Diameter [AKYJ]
- 0.066 Inches Minimum And 0.069 Inches Maximum
- Overall Length [ABHP]
- 0.969 Inches Nominal
- Special Features [FEAT]
- Depth From Pivot Pinhole Centerline To Point Of Engagement:0.220 In.Min,0.236 In.Max;Length From Pivot Pinhole Centerline To Point Of Engagement:0.886 In.Min,0.896 In.Max;Material Document And Classification:Aluminum Alloy,Mil-A-21180,Cl 12,A356,Grade D;Surface Finish:Anodized Black

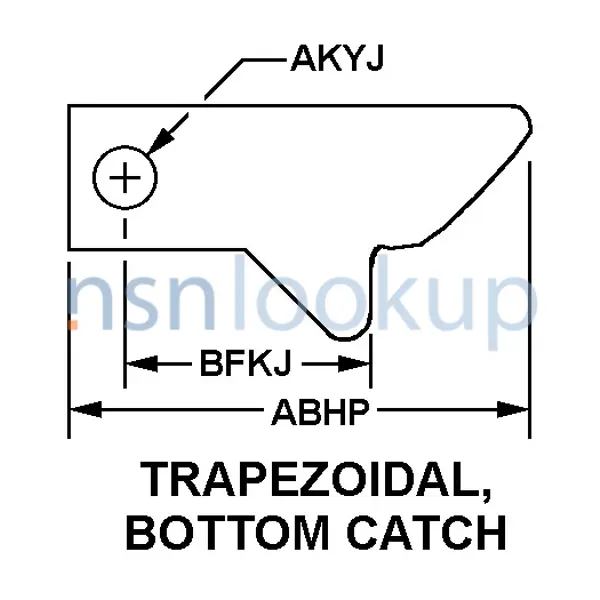

- Style Designator [STYL]
- Trapezoidal, Bottom Catch
DLA Procurement Analysis 3040-01-078-1518
Management Data 3040-01-078-1518
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- X
- Formerly 6605
- X
Similar Supply Items to 3040-01-078-1518
Freight Information 3040-01-078-1518
3040-01-078-1518 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 197339. A Sub NMFC of X. It has a NMFC Description of WHEELS COG/GEAR/PINION I/S. 3040-01-078-1518 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 96710 which rates the freight between FCL and LCL. 3040-01-078-1518 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 3040-01-078-1518 is not classified as a special type of cargo when transported by water. 3040-01-078-1518 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
