3040-00-985-4145
Ball Joint
3040009854145 009854145 D103A
An item in which the end of one member is partly spherical and fits into a corresponding spherical cavity in the other member, thus permitting a relative angular movement. Excludes items specifically designed for vehicular steering and torsion application. View more Ball Joint
August 2023
6
Marketplace 3040-00-985-4145
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-985-4145 5+ Documents (More...)
3040-00-985-4145 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-00-985-4145
Ball Joint 3040009854145009854145,D103A United States (US) 4. 3040-00-985-4145 Marketplace Restrictions
Ball Joint 3040009854145 009854145,D103A Upgrade for $1 a day Upgrade your Account Upgrade 3040
-00-985-4145Ball Joint3040009854145 009854145 D103A ) https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040
https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-00-985-4145 Ball Joint 3040009854145 009854145,D103A
D103A ) https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-00-985-4145 Ball Joint 3040009854145009854145
Ball Joint 3040009854145 009854145,D103A Upgrade for $1 a day Upgrade your Account Upgrade 3040
-00-985-4145Ball Joint3040009854145 009854145 D103A ) https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040
/fsg-26/fsc-2610/fr
web browser . 2610-14-531-7109Vehicular Pneumatic Tire2610145317109 145317109 650713130/70-17-62H-D103A
2610145317109 web browser . 2610-14-531-7109Vehicular Pneumatic Tire2610145317109 145317109650713130/70-17-62H-D103A
Restrictions 3040-00-985-4145
3040-00-985-4145 is a Ball Joint that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3040-00-985-4145
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-00-985-4145
- US Air Force (FGG5)
- Effective Date:
- 1 Apr 1991
- US Navy (N9FG)
- Effective Date:
- 1 Dec 1995
- Supplementary Collaborators:
- HD
Approved Sources 3040-00-985-4145
- Part Number
- Manufacturer
- Status
- D103A
- Manufacturer
- 01428 - Cablecraft Motion Controls Llc (Active)
- Primary Buy
- Primary Buy
- D103A
- 78643 - Tourek J J Mfg Co (Replaced)
- Original Design
- Original Design
Datasheet 3040-00-985-4145
- Characteristic
- Specifications
- FIIG
- Specifications
- A523X0
- Material [MATT]
- Steel

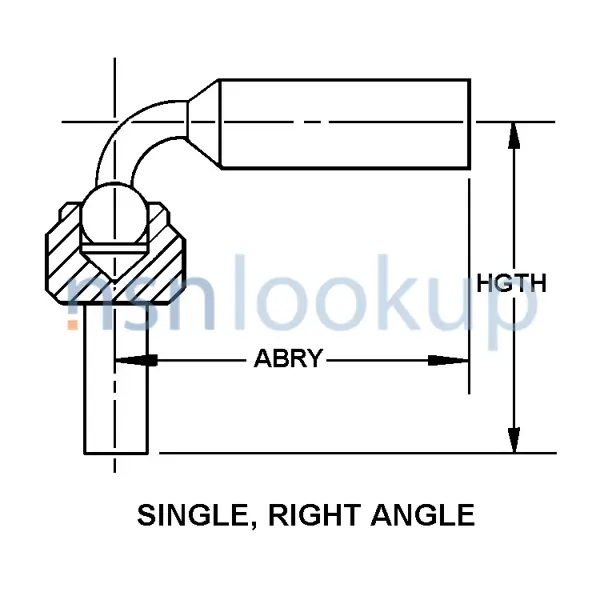

- Style Designator [STYL]
- Single, Right Angle
- Length [ABRY]
- 1.031 Inches Nominal
- Height [HGTH]
- 0.968 Inches Nominal
- Ball End Connection Thread Provision [BFYX]
- Threaded
- Ball End Thread Location [BFYY]
- External
- Ball End Thread Size And Series/Type Designator [CZLE]
- 10-32 Unf
- Ball End Thread Direction [BFZC]
- Right
- Socket End Connection Thread Provision [BFZJ]
- Threaded
- Socket End Thread Location [BFZK]
- External
- Socket End Thread Size And Series/Type Designator [CZLF]
- 10-32 Unf
- Socket End Thread Direction [BFZP]
- Right
- Special Features [FEAT]
- Nonadjustable;Spring-Not Incl.;Ball End Thd Lgth 0.500 In.;Surface Treat.-Cadmium Plate
- End Item Identification [AGAV]
- Trailer
Management Data 3040-00-985-4145
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2023
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Mar 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- V
- Discontinued Without Replacement
- V
Navy
- Cognizance:
- 9F
Similar Supply Items to 3040-00-985-4145
Freight Information 3040-00-985-4145
3040-00-985-4145 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 132330. A Sub NMFC of X. It has a NMFC Description of TRANSMISSIONS/CLUTCHES/PARTS,NOI. 3040-00-985-4145 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 3040-00-985-4145 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 64340 which rates the freight between FCL and LCL. 3040-00-985-4145 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-00-985-4145 is not classified as a special type of cargo when transported by water. 3040-00-985-4145 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3040-00-985-4145
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- 1/4 inch thick
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
