3040-00-917-1788
Shouldered Shaft
3040009171788 009171788 110257
A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT. View more Shouldered Shaft
January 2023
11
Marketplace 3040-00-917-1788
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-917-1788 5+ Documents (More...)
RQST Updated Every Day 3040-00-917-1788 RQST NE Related Documents 3040-00-917-1788 5+ Documents ( More
RQST Updated Every Day 3040-00-917-1788 RQST NE Related Documents 3040-00-917-1788 5+ Documents ( More
JavaScript in your web browser . 2610-14-560-9358Vehicular Pneumatic Tire2610145609358 145609358 110257
-120-5152 Filtercassette 4240171205152 171205152,110257 322-7763 Part NumberManufacturerStatus704-110257
to enable JavaScript in your web browser . 4240-17-120-5152Filtercassette4240171205152 171205152 110257
Shouldered Shaft 3040009171788 009171788 for $1 a day Upgrade your Account Upgrade 3040-00-917-
enable JavaScript in your web browser . 3040-14-264-1628Shaft Retaining Plate3040142641628 142641628 110257
to enable JavaScript in your web browser . 4240-17-120-5152Filtercassette4240171205152 171205152 110257
/fsg-26/fsc-2610/fr
SHAFT,SHOULDERED 1 EA NS Request Quotation Subscribe to View Vendor Details... 110257 SHAFT,SHOULDERED
Shouldered Shaft 3040009171788 009171788 for $1 a day Upgrade your Account Upgrade 3040-00-917-
Restrictions 3040-00-917-1788
3040-00-917-1788 is a Shouldered Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3040-00-917-1788
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-00-917-1788
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
Approved Sources 3040-00-917-1788
- Part Number
- Manufacturer
- Status
- 110257
- Manufacturer
- 05257 - General Dynamics Land Systems - (Active)
- Primary Buy
- Primary Buy
Datasheet 3040-00-917-1788
- Characteristic
- Specifications
- FIIG
- Specifications
- A23200
- End Similarity [AAHN]
- Not Identical
- First End Diameter [AMDL]
- 0.1260 Inches Nominal
- First End Style [AAGZ]
- Plain
- Fsc Application Data [ZZZV]
- Test Set,Line
- Material Document And Classification [MDCL]
- Qq-S-763,Cond T Fed Spec Single Material Response
- Material [MATT]
- Steel Comp 416
- Largest Step Diameter [CSPY]
- 0.215 Inches Nominal
- Second End Distance From End To Groove [AMFQ]
- 0.031 Inches Nominal
- Second End Groove Diameter [AAHX]
- 0.1080 Inches Nominal
- Second End Groove Width [AAHW]
- 0.0200 Inches Nominal

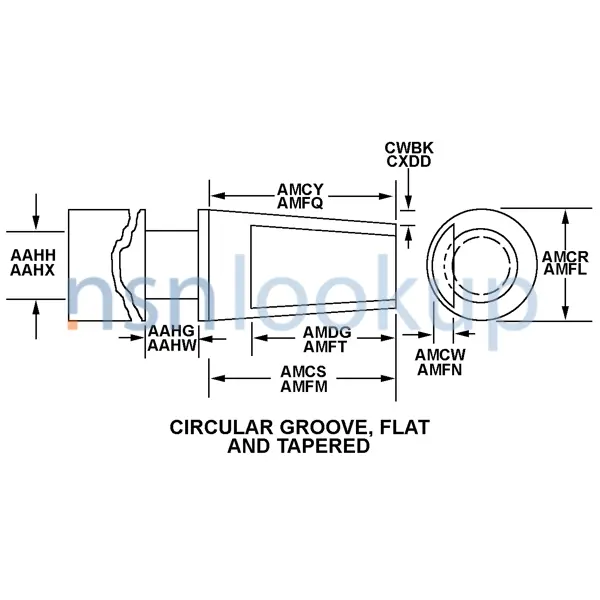

- Second End Style [AAHP]
- Circular Groove, Flat And Tapered
- Second End Taper Length [AMFM]
- 0.020 Inches Nominal
- Second End Taper Major Diameter [AMFL]
- 0.1250 Inches Nominal
- Overall Length [ABHP]
- 0.560 Inches Nominal
- Special Features [FEAT]
- Taper Angle 45 Deg
- Step Quantity [ATPC]
- 3
Similar Supply Items to 3040-00-917-1788
Freight Information 3040-00-917-1788
3040-00-917-1788 has freight characteristics managed by Germany.. 3040-00-917-1788 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
