3040-00-861-1447

Spur Gearshaft

3040008611447 008611447 10898779

A gearshaft with a single complement of spur gear teeth. For items with more than one complement of teeth, see GEARSHAFT (1), MULTIPLE GEARS. View more Spur Gearshaft

3040-00-861-1447 GEARSHAFT,SPUR 3040008611447 008611447

Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
May 2025
NATO Update Count
30
NATO Data Quality
3040-00-861-1447 GEARSHAFT,SPUR 3040008611447 008611447 1/1

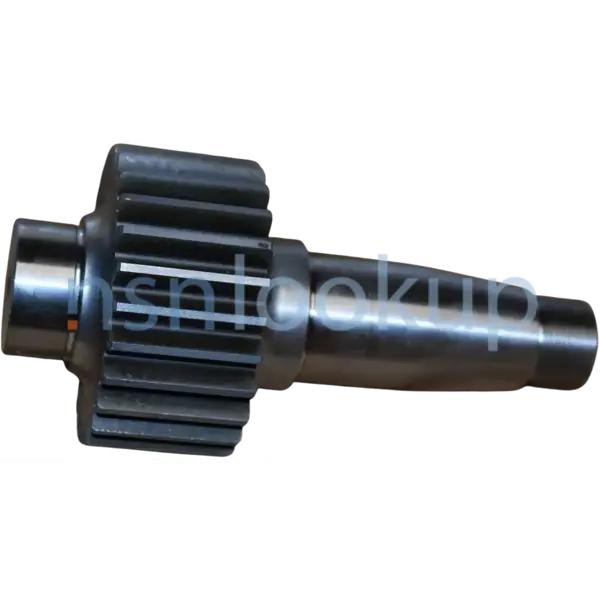

3040-00-861-1447 Photo 1/1

3040-00-861-1447 Stock and Availability Marketplace 3040-00-861-1447

3040-00-861-1447 Related Documents Related Documents 3040-00-861-1447 3+ Documents (More...)

Details... 10898779 GEARSHAFT 45 EA NS Request Quotation 10898779 GEARSHIFT 119 EA NS Request Quotation
RQST NE Updated Every Day 3040-00-861-1447 RQST Updated Every Day 3040-00-861-1447 RQST NE Related
Documents 3040-00-861-1447 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040
192-2159 3040-00-991-9050 3040-00-065-5132 3040-00-371-1759 3040-00-319-5608 3040-00-409-8398 3040-00-861-1447
136-9620 3040-00-991-9050 3040-00-065-5132 3040-00-371-1759 3040-00-319-5608 3040-00-409-8398 3040-00-861-1447

3040-00-861-1447 Demil Restrictions 3040-00-861-1447

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: U | EDC: | ADPEC:

3040-00-861-1447 is a Spur Gearshaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

3040-00-861-1447 HTS and ScheduleB Import and Export 3040-00-861-1447

3040-00-861-1447 End Users End Users 3040-00-861-1447

US Army (A920)
Effective Date:
1 Aug 2006
Former MOE Rule:
A181
Supplementary Receivers:
AZ
US Marine Corps (MC40)
Effective Date:
1 Aug 2006
Former MOE Rule:
MC01
US Navy (N9BC)
Effective Date:
1 Dec 2013
Supplementary Collaborators:
GG
Austria (WB01)
Effective Date:
1 Feb 2005
Brazil (YA01)
Effective Date:
1 Mar 2001
Spain (YB01)
Effective Date:
1 May 1997
Israel (YD01)
Effective Date:
1 Jul 2016
Singapore (YJ01)
Effective Date:
1 Apr 1991
Morocco (YP01)
Effective Date:
1 Nov 2008
Republic of Korea (ZH01)
Effective Date:
1 Apr 1991
Portugal (ZP01)
Effective Date:
1 Apr 1991
Greece (ZU01)
Effective Date:
1 Jul 1995
Turkey (ZW01)
Effective Date:
1 Jul 2003

3040-00-861-1447 Manufacturers Approved Sources 3040-00-861-1447

3040-00-861-1447 Technical Data Datasheet 3040-00-861-1447

Characteristic
Specifications
FIIG
A503N0
Special Features [FEAT]
Steel,Case Hardness,Rockwell C 5862,Core Hardness Rockwell C 34-42,6.15O In. O/A Lg,One End Of Shaft Thd 1.00-20 Unef-3A,Other End 1.3785 In. Dia,Gear 26 Teeth,9 Diametral Pitch,20 Deg Pressure Angle,1.500 In. Face Width,3.111 In. Od Dia

3040-00-861-1447 Weapon Systems (WSDC) Weapon Systems (WSDC) 3040-00-861-1447

3040-00-861-1447 Stock, Inventory and Procurement DLA Procurement Analysis 3040-00-861-1447

Last Stock Position:
135 In Stock
DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

3040-00-861-1447 Management Data Management Data 3040-00-861-1447

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Jul 2023
Defense Logistics Agency (DS)
EA
Subscribe
1
Oct 2022
US Marine Corps (DM)
EA
Subscribe
1
Oct 2021
Department of the Navy (DN)
EA
Subscribe
1
Oct 2020
Defense Logistics Agency (DS)
EA
Subscribe
1
Oct 2019
Department of the Army (DA)
EA
Subscribe
1

Army Army

Materiel Category and Inventory Manager:
J
Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity:
2
Stock Fund Secondary Items
Management Inventory Segment:
2
Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
Weapons System / End Item / Homogeneous Group:
00
DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements:
X
Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy Navy

Cognizance:
9B
Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps Marine Corps

Stores Account:
1
Stock Fund Account Item
Combat Essentiality:
5
Critical Repair Part to a Combat Essential End Item
Echelon Management:
B2
Material Identification:
T
Maintenance Float Secondary Non-depot Reparables
Operational Test:
No Special Procedures

3040-00-861-1447 Similar Items Similar Supply Items to 3040-00-861-1447

3040-00-861-1447 Freight Data Freight Information 3040-00-861-1447

3040-00-861-1447 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 3040-00-861-1447 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 3040-00-861-1447 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 3040-00-861-1447 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 3040-00-861-1447 is not classified as a special type of cargo when transported by water. 3040-00-861-1447 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

3040-00-861-1447 Packaging Data Packaging Data 3040-00-861-1447

Responsible Activity
Packaging Data Source
Primary Inventory Control Activity (PICA)
--

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation
--
--
Bare Metal Item
Over 10lb
Less than 85G
Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying
1
--
--
--
--
Any Suitable Process
Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking
Vendor's Protective Grease or Oil Coating
--
--
--
PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container
ASTM - D5118, Fiberboard Box

3040-00-861-1447 Procurement History Procurement History 3040-00-861-1447 6 Records

Contract
Date
CAGE
Quantity
Net Price
Std Price
SPE7L321F189E
03 Aug 2021
Subscribe
129
Subscribe
Subscribe
SPE7L321F189E
03 Aug 2021
Subscribe
129
Subscribe
Subscribe
SPE7L318P2307
15 Dec 2017
Subscribe
102
Subscribe
Subscribe
SPE7L315M8458
02 Sep 2015
Subscribe
103
Subscribe
Subscribe
SPE7L314M6594
27 May 2014
Subscribe
108
Subscribe
Subscribe
SPE7L314M6560
24 May 2014
Subscribe
49
Subscribe
Subscribe

3040-00-861-1447 Contracting Technical Data File (CTDF) Contracting Technical Data File (CTDF) 3040-00-861-1447 October 2021

Criticality and Quality

Critical Item Code:
X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):
F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
