3040-00-756-1766
Shaft Collar
3040007561766 007561766 7200418P3 L2-3 10652536 605-052-001 400-513-103 CV0702-001 GX14790-3
An item designed to be mounted around a shaft to limit axial movement of the shaft and/or its assembled parts. It is secured directly to the shaft by use of a setscrew(s), pin(s), or the like, which may be a part of the item of supply. A pilot hole drilled in or through the wall(s) for drilling and pinning at application may be considered a method of securing. Solid items have a bearing surface on one or both end(s) perpendicular to the axis. For items designed to be mounted around the extended hub portion of a mounted item on a shaft or clamp around a shaft, see CLAMP, HUB. See also BEARING, SLEEVE; BUSHING, SLEEVE; SPACER, SLEEVE; and COUPLING, SHAFT, RIGID. View more Shaft Collar
November 2023
37
Marketplace 3040-00-756-1766
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-756-1766 1+ Documents (More...)
United States (US) 4. 3040-00-756-1766 Marketplace Restrictions Approved Sources Datasheet Management
L23 COLLAR,SHAFT 1 EA NS Request Quotation L2-3 COLLAR,SHAFT 2 EA NS Request Quotation Updated Every
Restrictions 3040-00-756-1766
3040-00-756-1766 is a Shaft Collar that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3040-00-756-1766
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-00-756-1766
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- CL
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEJBHD
- Poland (WP01)
- Effective Date:
- 1 Oct 2006
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Mar 1997
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
Approved Sources 3040-00-756-1766
- Part Number
- Manufacturer
- Status
- L2-3
- Manufacturer
- 00141 - Roller Bearing Co Of America, Inc (Active)
- Primary Buy
- Primary Buy
- 10652536
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 605-052-001
- 59211 - Parker-Hannifin Corporation (Active)
- Secondary Buy
- Secondary Buy
- 400-513-103
- 0ZW37 - Danka Office Imaging Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CV0702-001
- 22915 - Northrop Grumman Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GX14790-3
- 14418 - Unisys Corp Defense Systems C S D (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 400-513-103
- 32153 - Eastman Kodak Co Commercial & (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 605-052-001
- 26055 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 7200418P3
- 24446 - General Electric Company (Active)
- Advisory Reference
- Advisory Reference
Datasheet 3040-00-756-1766
- Characteristic
- Specifications
- FIIG
- Specifications
- A231A0
- Distance From Bore Centerline To End [AEUY]
- 0.125 Inches Nominal
- Bore Diameter [ABXV]
- 0.1280 Inches Nominal
- Material [MATT]
- Steel Comp 303
- Outside Diameter [ABKV]
- 0.375 Inches Nominal
- Largest Diameter Length [AEUZ]
- 0.051 Inches Nominal
- Material Document And Classification [MDCL]
- Fed Std 66 Fed Std Single Material Response Or Aisi 303 Assn Std Single Material Response Or Sae 30303 Assn Std Single Material Response
- Small End Diameter [ABPH]
- 0.250 Inches Nominal

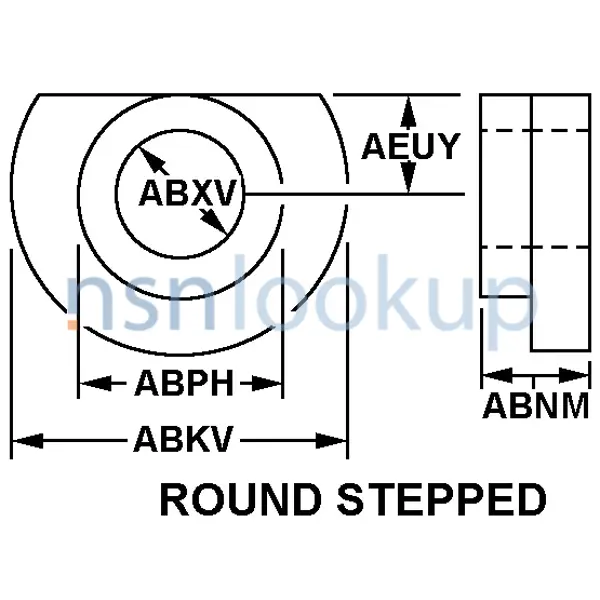

- Style Designator [STYL]
- Round Stepped
- Surface Treatment [SFTT]
- Passivate
- Thickness [ABNM]
- 0.160 Inches Nominal
Weapon Systems (WSDC) 3040-00-756-1766
DLA Procurement Analysis 3040-00-756-1766
- Last Stock Position:
- 116 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3040-00-756-1766
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 3040-00-756-1766
Freight Information 3040-00-756-1766
3040-00-756-1766 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126880. A Sub NMFC of Z. It has a NMFC Description of POWER TRANS SHAFTING PULLEYS. 3040-00-756-1766 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64300 which rates the freight between FCL and LCL. 3040-00-756-1766 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-00-756-1766 is not classified as a special type of cargo when transported by water. 3040-00-756-1766 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
