3040-00-733-4748
Shouldered Shaft
3040007334748 007334748 8351749
A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT. View more Shouldered Shaft
November 2025
27
Marketplace 3040-00-733-4748
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-733-4748 2+ Documents (More...)

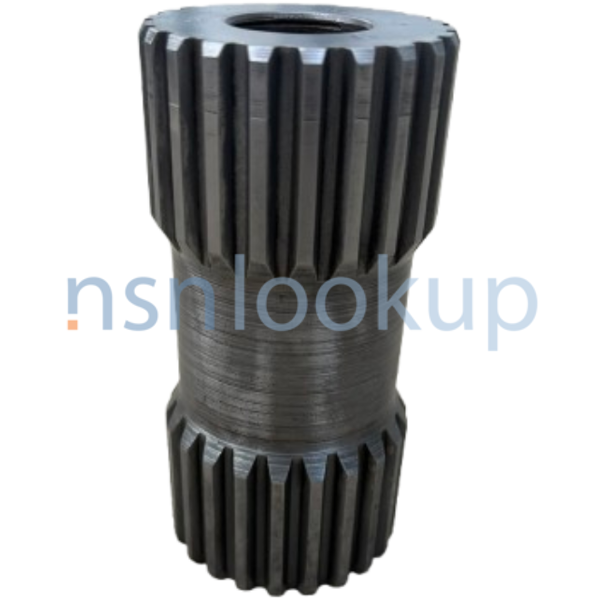

Photo 1/2 NSN 3040-00-733-4748 (Identification) 2/2 - - 1.
United States (US) 4. 3040-00-733-4748 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 3040-00-733-4748
3040-00-733-4748 is a Shouldered Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 3040-00-733-4748
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-00-733-4748
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBF
- US Marine Corps (MC40)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Morocco (YP01)
- Effective Date:
- 1 Sep 2011
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Sep 1994
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3040-00-733-4748
- Part Number
- Manufacturer
- Status
- 8351749
- Manufacturer
- 73342 - Allison Transmission Inc (Active)
- Primary Buy
- Primary Buy
- 8351749
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 3040007334748
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3040-00-733-4748
- Characteristic
- Specifications
- FIIG
- Specifications
- A23200
- End Similarity [AAHN]
- Identical
- First End Diameter [AMDL]
- 2.5000 Inches Nominal
- First End Spline Length [AMDM]
- 1.700 Inches Nominal
- First End Spline Major Diameter [AMDP]
- 2.8650 Inches Nominal
- First End Spline Minor Diameter [AMDN]
- 2.6250 Inches Nominal
- First End Spline Quantity [BDSQ]
- 22
- First End Style [AAGZ]
- Splined (Involute)
- First End Pitch Diameter [AMDS]
- 2.7500 Inches Nominal
- First End Pressure Angle [AMDR]
- 30.0 Degrees Nominal
- Material Document And Classification [MDCL]
- Mil-S-13048 Mil Spec All Material Responses
- Material [MATT]
- Steel Comp 5140
- Largest Step Diameter [CSPY]
- 2.865 Inches Nominal
- Overall Length [ABHP]
- 5.800 Inches Nominal
- Special Features [FEAT]
- Xexcept As Modified By The End Style; 1St End In Ternal Splines 16/32 Pitch,30 Deg Pressure Angle,1.000 In. Pitch Dia,0.9156 In. Minor Dia,1.0625 In. Major Dia,16 Teeth,1.800 In. Lg; 2Nd End Internal Bore 1.250 In. Id,4.000 In. Deep
- Step Quantity [ATPC]
- 4
