3040-00-700-5109
Bell Crank
3040007005109 007005109 EA2379 7005109 608234 FA2379
An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified). View more Bell Crank
June 2023
15
Marketplace 3040-00-700-5109
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-700-5109 2+ Documents (More...)
Every Day 3040-00-700-5109 RQST NE Updated Every Day 3040-00-700-5109 RQST Updated Every Day 3040-00
/fsg-30/fsc-3040/us 3040-00-700-5109 Bell Crank 3040007005109007005109,EA2379 EA23797005109608234FA2379
www.nsnlookup.com /fsg-51/fsc-5120/au 5120-66-138-2728 Leveling-Support Jack 5120661382728661382728 7005109
www.nsnlookup.com /fsg-51/fsc-5120/au 5120-66-138-2728 https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-00-700-5109
Restrictions 3040-00-700-5109
3040-00-700-5109 is a Bell Crank that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3040-00-700-5109
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-00-700-5109
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Sep 2009
Approved Sources 3040-00-700-5109
- Part Number
- Manufacturer
- Status
- EA2379
- Manufacturer
- 57614 - Valgra Industries Inc (Active)
- Primary Buy
- Primary Buy
- 7005109
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 608234
- 24617 - General Motors Corp (Active)
- Secondary Buy
- Secondary Buy
- FA2379
- 57614 - Valgra Industries Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3040-00-700-5109
- Characteristic
- Specifications
- FIIG
- Specifications
- A523Z0
- End Hole/Ball Diameter [CZLN]
- 0.498 Inches Minimum 1St End And 0.501 Inches Maximum 1St End
- End Hole/Ball Diameter [CZLN]
- 0.498 Inches Minimum 2Nd End And 0.501 Inches Maximum 2Nd End
- Bore Diameter [ABXV]
- 1.003 Inches Minimum And 1.005 Inches Maximum
- Bore Length [ADGE]
- 1.250 Inches Nominal
- Center To Center Distance Between Fulcrum And Arm End Hole/Slot/Ball [CZLM]
- 2.000 Inches Nominal 1St End
- Center To Center Distance Between Fulcrum And Arm End Hole/Slot/Ball [CZLM]
- 3.000 Inches Nominal 2Nd End
- Fsc Application Data [ZZZV]
- Earth Boring Machine Clutch And Brake Controls,Truck Mtg
- Material [MATT]
- Steel

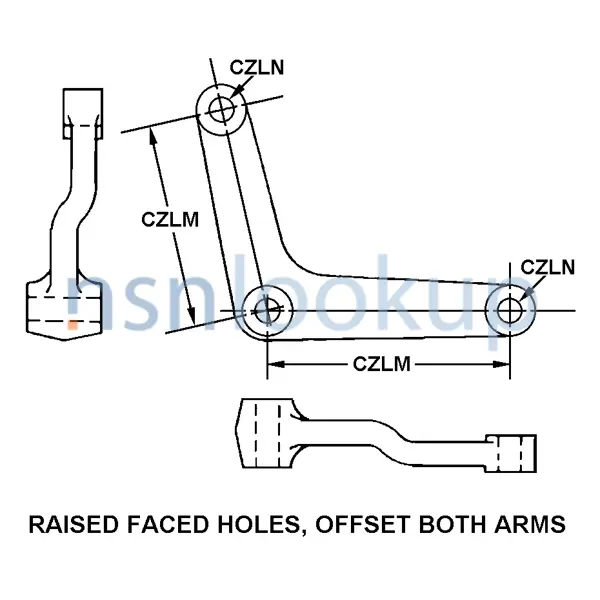

- Style Designator [STYL]
- Raised Faced Holes, Offset Both Arms
Similar Supply Items to 3040-00-700-5109
Freight Information 3040-00-700-5109
3040-00-700-5109 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 116250. A Sub NMFC of X. It has a NMFC Description of TYPEWRITERS/TELETYPEWRITERS/PARTS. 3040-00-700-5109 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 59490 which rates the freight between FCL and LCL. 3040-00-700-5109 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 734 for ocean manifesting and military sealift. 3040-00-700-5109 is not classified as a special type of cargo when transported by water. 3040-00-700-5109 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3040-00-700-5109
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 5lb to 7.5lb, all dimensions less than 24"
- Above 110G
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Any Suitable Container
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
