3040-00-689-5157
Shaft Collar
3040006895157 006895157 100863
An item designed to be mounted around a shaft to limit axial movement of the shaft and/or its assembled parts. It is secured directly to the shaft by use of a setscrew(s), pin(s), or the like, which may be a part of the item of supply. A pilot hole drilled in or through the wall(s) for drilling and pinning at application may be considered a method of securing. Solid items have a bearing surface on one or both end(s) perpendicular to the axis. For items designed to be mounted around the extended hub portion of a mounted item on a shaft or clamp around a shaft, see CLAMP, HUB. See also BEARING, SLEEVE; BUSHING, SLEEVE; SPACER, SLEEVE; and COUPLING, SHAFT, RIGID. View more Shaft Collar
November 2023
21
Marketplace 3040-00-689-5157
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-689-5157 5+ Documents (More...)
3040-00-689-5157 RQST NE Related Documents 3040-00-689-5157 5+ Documents ( More... ) https//www.nsnlookup.com
/fsg-30/fsc-3040/us 3040-00-689-5157 Shaft Collar 3040006895157 006895157,100863 Updated Every Day 3040
day Upgrade your Account Upgrade 2920-01-389-1523Electrical Terminal Block2920013891523 013891523 100863
. 10086-3 TERMINAL BLOCK,ELECTRICAL 1 EA NS Request Quotation Subscribe to View Vendor Details... 100863
day Upgrade your Account Upgrade 2920-01-389-1523Electrical Terminal Block2920013891523 013891523 100863
https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-00-689-5157 Shaft Collar 3040006895157 006895157,100863
. 10086-3 TERMINAL BLOCK,ELECTRICAL 1 EA NS Request Quotation Subscribe to View Vendor Details... 100863
JavaScript in your web browser . 4910-14-247-2101Mandrin Demmancheme4910142472101 142472101 C55439 100863
//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-00-689-5157 Shaft Collar 3040006895157 006895157,100863
Upgrade for $1 a day Upgrade your Account Upgrade 3040-00-689-5157Shaft Collar3040006895157 006895157
Restrictions 3040-00-689-5157
3040-00-689-5157 is a Shaft Collar that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3040-00-689-5157
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-00-689-5157
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKE
- Poland (WP01)
- Effective Date:
- 1 Aug 2011
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Nov 1998
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 3040-00-689-5157
- Part Number
- Manufacturer
- Status
- 100863
- Manufacturer
- 10138 - Astronautics Corporation Of America (Active)
- Primary Buy
- Primary Buy
Datasheet 3040-00-689-5157
- Characteristic
- Specifications
- FIIG
- Specifications
- A231A0
- Angle Between Centerlines Of Securing Holes In Deg [AHYG]
- 180.0
- Bore Diameter [ABXV]
- 0.1270 Inches Nominal
- Hole Diameter And Location [CRZW]
- 0.0310 Inches Nominal Single Hole
- Material Document And Classification [MDCL]
- Qq-S-764, Type 303, Cond A-Canceled Fed Spec Single Material Response
- Material [MATT]
- Steel Comp 303
- Outside Diameter [ABKV]
- 0.374 Inches Nominal
- Securing Hole Quantity [AHYF]
- 2
- Securing Hole Type And Location [CQKB]
- Unthreaded Single Hole

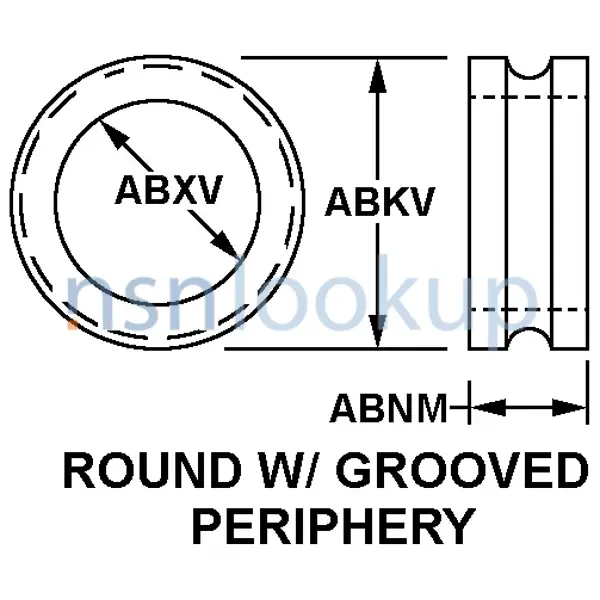

- Style Designator [STYL]
- Round W/Grooved Periphery
- Surface Treatment [SFTT]
- Passivate
- Thickness [ABNM]
- 0.125 Inches Nominal
Weapon Systems (WSDC) 3040-00-689-5157
DLA Procurement Analysis 3040-00-689-5157
- Last Stock Position:
- 180 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3040-00-689-5157
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Jan 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Apr 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 3040-00-689-5157
Freight Information 3040-00-689-5157
3040-00-689-5157 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126880. A Sub NMFC of Z. It has a NMFC Description of POWER TRANS SHAFTING PULLEYS. 3040-00-689-5157 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64300 which rates the freight between FCL and LCL. 3040-00-689-5157 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-00-689-5157 is not classified as a special type of cargo when transported by water. 3040-00-689-5157 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3040-00-689-5157
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
