3040-00-574-6624
Hub Clamp
3040005746624 005746624 SMB314727 SMB186980-1 56833 56833A
An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP. View more Hub Clamp
May 2023
18
Marketplace 3040-00-574-6624
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-574-6624 5+ Documents (More...)
(Identification) 1/2 NSN 3040-00-574-6624 (Identification) 2/2 - - 1.
United States (US) 4. 3040-00-574-6624 Marketplace Restrictions Approved Sources Datasheet Management
$1 a day Upgrade your Account Upgrade 6210-01-368-3141Light Lens6210013683141 013683141 95-XX-24-B6-56833
$1 a day Upgrade your Account Upgrade 6210-01-368-3141Light Lens6210013683141 01368314195-XX-24-B6-56833
Hub Clamp 3040005746624 005746624 Upgrade your Account Upgrade 3040-00-574-6624Hub Clamp3040005746624
005746624 SMB314727 SMB186980-1 56833 to enable JavaScript in your web browser . 4330-14-298-0186Jante
www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-441-8761 Push Switch 5930014418761014418761 95-6A-24-B6-56833
-01-441-8761 Push Switch 5930014418761014418761 https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-00-574-6624
$1 a day Upgrade your Account Upgrade 6210-01-368-3141Light Lens6210013683141 01368314195-XX-24-B6-56833
us 5905-00-969-5801 Adjustable Resistor 5905009695801 009695801 NumberManufacturerStatus95-6A-24-B6-56833
Restrictions 3040-00-574-6624
3040-00-574-6624 is a Hub Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 3040-00-574-6624
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- US Marine Corps (MC40)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 2014
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jun 2006
Approved Sources 3040-00-574-6624
- Part Number
- Manufacturer
- Status
- 56833
- Manufacturer
- 82423 - Kleinschmidt Inc (Obsolete)
- Original Design
- Original Design
- SMB314727
- 80063 - Us Army Communications & Electronics (Active)
- Secondary Buy
- Secondary Buy
- SMB186980-1
- 80063 - Us Army Communications & Electronics (Active)
- Secondary Buy
- Secondary Buy
- 56833A
- 82423 - Kleinschmidt Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3040-00-574-6624
- Characteristic
- Specifications
- FIIG
- Specifications
- A231A0
- Distance From Bore Centerline To End [AEUY]
- 0.621 Inches Nominal
- Bore Diameter [ABXV]
- 0.6200 Inches Nominal
- Clamp Securing Hole Style [AHYJ]
- Threaded
- Material [MATT]
- Steel
- Nominal Thread Size [CQJX]
- 0.112 Inches
- Plain Hole Diameter [ADCQ]
- 0.1120 Inches Nominal
- Screw Thread Series Designator [AJYP]
- Unc
- Overall Length [ABHP]
- 1.243 Inches Nominal
- Overall Width [ABMK]
- 1.184 Inches Nominal

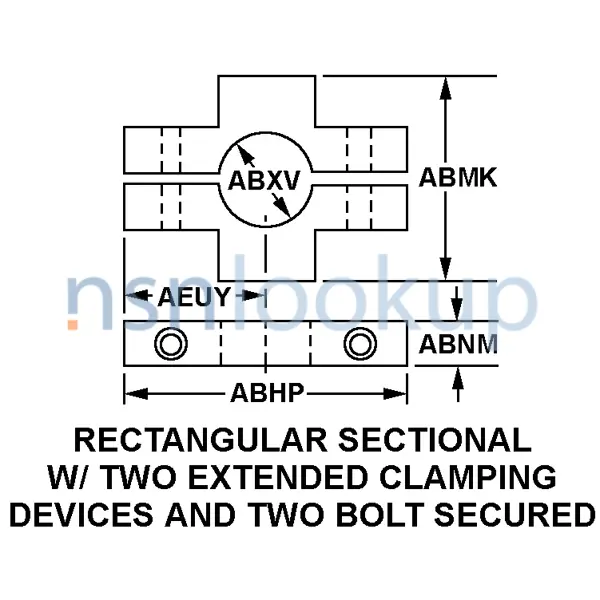

- Style Designator [STYL]
- Rectangular Sectional W/Two Extended Clamping Devices And Two Bolt Secured
- Thickness [ABNM]
- 0.297 Inches Nominal
DLA Procurement Analysis 3040-00-574-6624
Management Data 3040-00-574-6624
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 5815
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 5815
- X
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 3040-00-574-6624
Freight Information 3040-00-574-6624
3040-00-574-6624 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 116250. A Sub NMFC of X. It has a NMFC Description of TYPEWRITERS/TELETYPEWRITERS/PARTS. 3040-00-574-6624 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 59490 which rates the freight between FCL and LCL. 3040-00-574-6624 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 3040-00-574-6624 is not classified as a special type of cargo when transported by water. 3040-00-574-6624 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 3040-00-574-6624 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
