3040-00-550-8461
Pawl
3040005508461 005508461 5508461 1005-550-8461
A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified). View more Pawl
June 2023
38
Marketplace 3040-00-550-8461
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-550-8461 1+ Documents (More...)
Quotation Updated Every Day 3040-00-550-8461 RQST NE Updated Every Day 3040-00-550-8461 RQST Updated
Every Day 3040-00-550-8461 RQST NE Related Documents 3040-00-550-8461 1+ Documents ( More... ) https
Restrictions 3040-00-550-8461
3040-00-550-8461 is a Pawl that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 3040-00-550-8461
- Austria (WB)
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA)
- Brazil (YA01)
- Effective Date:
- 1 Apr 2002
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ)
- Morocco (YP)
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA)
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE)
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP)
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR)
- Italy (ZR01)
- Effective Date:
- 1 Aug 1995
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Jul 2003
Approved Sources 3040-00-550-8461
- Part Number
- Manufacturer
- Status
- 5508461
- Manufacturer
- 19204 - Army, United States Department Of (Active)
- Primary Buy
- Primary Buy
- 1005-550-8461
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 1005-550-8461
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 3040-00-550-8461
- Characteristic
- Specifications
- FIIG
- Specifications
- A524Q0
- Material Thickness [ABPX]
- 0.990 Inches Nominal
- Material [MATT]
- Steel
- Length From Pivot Pinhole Centerline To Point Of Engagement [BFKJ]
- 0.719 Inches Nominal
- Pivot Pin Hole Diameter [AKYJ]
- 0.1735 Inches Nominal
- Overall Length [ABHP]
- 1.960 Inches Nominal
- Special Features [FEAT]
- Surface Finish:Phosphate;Fsc Application Data:Machine Gun,Cla.30,M19a6;M19a5;M19a4;M17a1

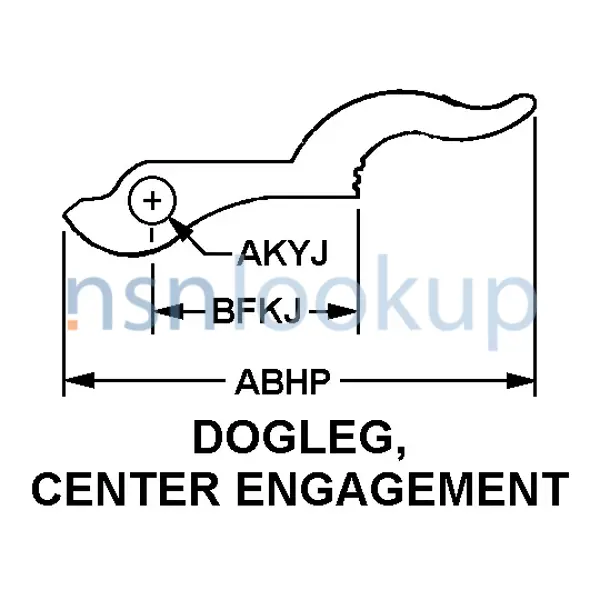

- Style Designator [STYL]
- Dogleg, Center Engagement
Similar Supply Items to 3040-00-550-8461
Freight Information 3040-00-550-8461
3040-00-550-8461 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 146230. A Sub NMFC of X. It has a NMFC Description of GUNS MACHINE/PARTS NOI SM ARMS AMMO. 3040-00-550-8461 is rated as class 125 when transported by Less-Than Truckload (LTL) freight. 3040-00-550-8461 is rated as class 125 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 73040 which rates the freight between FCL and LCL. 3040-00-550-8461 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 682 for ocean manifesting and military sealift. 3040-00-550-8461 is not classified as a special type of cargo when transported by water. 3040-00-550-8461 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
