3040-00-540-5352
Hub Clamp
3040005405352 005405352 SMA287102
An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP. View more Hub Clamp
May 2023
5
Marketplace 3040-00-540-5352
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-540-5352 1+ Documents (More...)
(Identification) 1/2 NSN 3040-00-540-5352 (Identification) 2/2 - - 1.
United States (US) 4. 3040-00-540-5352 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 3040-00-540-5352
3040-00-540-5352 is a Hub Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 3040-00-540-5352
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- CL
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
Approved Sources 3040-00-540-5352
- Part Number
- Manufacturer
- Status
- SMA287102
- Manufacturer
- 95036 - Applied Devices Corp (Obsolete)
- Original Design
- Original Design
Datasheet 3040-00-540-5352
- Characteristic
- Specifications
- FIIG
- Specifications
- A231A0
- Distance From Bore Centerline To End [AEUY]
- 0.343 Inches Nominal
- Bore Diameter [ABXV]
- 0.2180 Inches Nominal
- Clamp Securing Hole Style [AHYJ]
- Threaded
- Material Document And Classification [MDCL]
- Qq-S-636, Cond 4-Canceled Fed Spec Single Material Response
- Material [MATT]
- Steel Comp 1006 Or Steel Comp 1008 Or Steel Comp 1009 Or Steel Comp 1010 Or Steel Comp 1012 Or Steel Comp 1015 Or Steel Comp 1017
- Nominal Thread Size [CQJX]
- 0.138 Inches
- Plain Hole Diameter [ADCQ]
- 0.1440 Inches Nominal
- Screw Thread Series Designator [AJYP]
- Unc
- Overall Length [ABHP]
- 0.703 Inches Nominal
- Overall Width [ABMK]
- 0.312 Inches Nominal

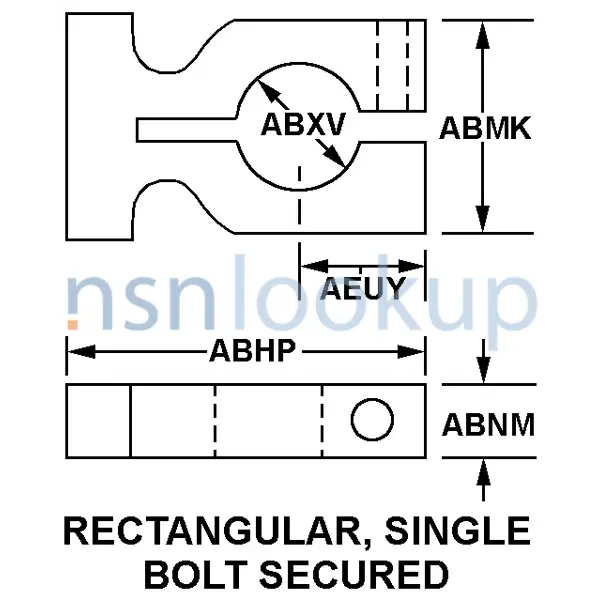

- Style Designator [STYL]
- Rectangular, Single Bolt Secured
- Surface Treatment [SFTT]
- Cadmium
- Thickness [ABNM]
- 0.205 Inches Nominal
DLA Procurement Analysis 3040-00-540-5352
Management Data 3040-00-540-5352
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- SA
- Surveillance Target Acquisition and Night Observation (STANO)
Radar & Sensor AN/TPQ-53
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 3040-00-540-5352
Freight Information 3040-00-540-5352
3040-00-540-5352 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 3040-00-540-5352 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 3040-00-540-5352 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 3040-00-540-5352 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-00-540-5352 is not classified as a special type of cargo when transported by water. 3040-00-540-5352 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3040-00-540-5352
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- Any bag or sack used by the vendor
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 3040-00-540-5352 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
