3040-00-451-2166
Linear Actuating Cylinder Assembly
3040004512166 004512166 8761045 08761045
A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies. View more Linear Actuating Cylinder Assembly
May 2023
16
Marketplace 3040-00-451-2166
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-451-2166 2+ Documents (More...)
(Identification) 1/3 NSN 3040-00-451-2166 (Identification) 2/3 NSN 3040-00-451-2166 (Identification
RQST NE Updated Every Day 3040-00-451-2166 RQST Updated Every Day 3040-00-451-2166 RQST NE Related Documents
. 2815-01-146-9005 MANIFOLD,INTAKE 32 EA NS Request Quotation Subscribe to View Vendor Details... 8761045
MANIFOLD 17 EA NS Request Quotation 8761045 MANIFOLD 92 EA NS Request Quotation Subscribe to View Vendor
Restrictions 3040-00-451-2166
3040-00-451-2166 is a Linear Actuating Cylinder Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 3040-00-451-2166
- US Air Force (FGGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FGAX
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GT
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 3040-00-451-2166
- Part Number
- Manufacturer
- Status
- 8761045
- Manufacturer
- 63117 - Sicard A Division Of Smi-Snowblast (Active)
- Primary Buy
- Primary Buy
- 08761045
- K7430 - Eagle Airfield Equipment Limited (Active)
- Secondary Buy
- Secondary Buy
Datasheet 3040-00-451-2166
- Characteristic
- Specifications
- FIIG
- Specifications
- A34200
- Body Material [AAFZ]
- Any Acceptable
- Bore Diameter [ABXV]
- 2.500 Inches Nominal
- Compressed Length [AMQZ]
- 17.625 Inches Nominal
- Design Characteristics [CKSD]
- Double Acting Single Cylinder
- Extended Length [ATEM]
- 24.625 Inches Nominal
- First Piston Rod End Style [CKSF]
- Bearing Type
- Mounting Provision Arrangement Style [BBBW]
- Two Hole
- Mounting Provision [ABDR]
- Unthreaded Mounting Holes
- Mounting Type And Location [CLML]
- Tongue Cylinder Head End
- Integral Valve Operation Method [CKRM]
- Hydraulic

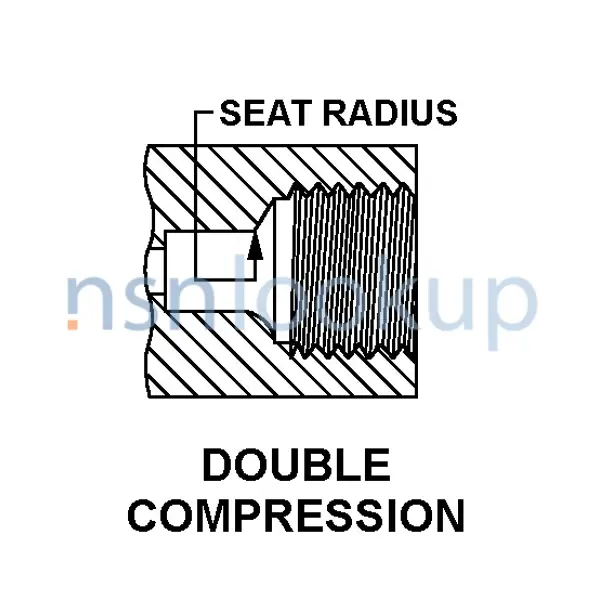

- Port Style [CLMT]
- Double Compression
- Port Thread Series Designator [CLMW]
- Unc
- Port Location And Quantity [CLMS]
- 2 Center Section
- Pressure Rating [BGST]
- 1000.0 Pounds Per Square Inch Maximum
- Overall Height [ABKW]
- 3.000 Inches Nominal
- Overall Width [ABMK]
- 3.375 Inches Nominal
