3040-00-231-0056
Shouldered Shaft
3040002310056 002310056 5150216 1DD992 019-00001-206
A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT. View more Shouldered Shaft
November 2025
22
Marketplace 3040-00-231-0056
Request a Quotation from participating marketplace vendors
Related Documents 3040-00-231-0056 4+ Documents (More...)

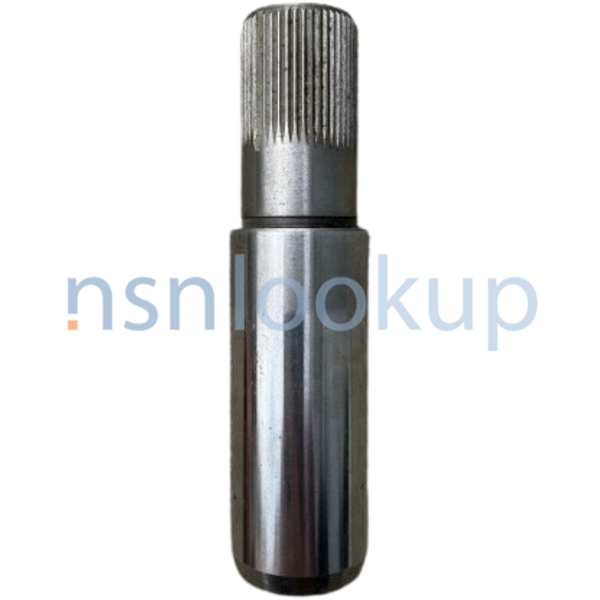

Photo 1/3 NSN 3040-00-231-0056 (Identification) 2/3 NSN 3040-00-231-0056 (Identification) 3/3 -
RQST NE Updated Every Day 3040-00-231-0056 RQST Updated Every Day 3040-00-231-0056 RQST NE Related Documents
Shouldered Shaft 3040002310056 002310056 (Identification) 1/2 NSN 3040-00-231-0056 (Identification
RQST NE Updated Every Day 3040-00-231-0056 RQST Updated Every Day 3040-00-231-0056 RQST NE Related Documents
Restrictions 3040-00-231-0056
3040-00-231-0056 is a Shouldered Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 3040-00-231-0056
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 3040-00-231-0056
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Coast Guard (C911)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- C001
- US Air Force (FXGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 2 Feb 2010
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEHD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- Greece (ZU01)
- Effective Date:
- 1 May 2006
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 3040-00-231-0056
- Part Number
- Manufacturer
- Status
- 5150216
- Manufacturer
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Primary Buy
- Primary Buy
- 1DD992
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 019-00001-206
- 59556 - Kovatch Corp. (Active)
- Secondary Buy
- Secondary Buy
- 1DD992
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 3040-00-231-0056
- Characteristic
- Specifications
- FIIG
- Specifications
- A23200
- Material [MATT]
- Steel
- First End Style [AAGZ]
- Plain
- First End Diameter [AMDL]
- 1.1750 Inches Nominal
- End Similarity [AAHN]
- Not Identical
- Second End Style [AAHP]
- Splined (Involute)
- Second End Diameter [AMFZ]
- 0.9860 Inches Nominal
- Second End Spline Length [AMGA]
- 1.000 Inches Nominal
- Second End Spline Minor Diameter [AMGB]
- 0.9450 Inches Nominal
- Second End Spline Major Diameter [AMGC]
- 0.9860 Inches Nominal
- Second End Pitch Diameter [AMGF]
- 0.9770 Inches Nominal
- Second End Pressure Angle [AMGE]
- 45.0 Degrees Nominal
- Second End Spline Quantity [BDSR]
- 48
- Largest Step Diameter [CSPY]
- 1.175 Inches Nominal
- Overall Length [ABHP]
- 4.585 Inches Nominal
- Step Quantity [ATPC]
- 2
- Special Features [FEAT]
- First End Has 0.885 In. Dia Centerbore 1.941 In. Dp;Second End Thd Internal Unf0.500-20 Rh 2B To A Dp Of 1.575 In.
- End Item Identification [AGAV]
- 2320-01-304-2277 And 2320-01-304-2278 Pls (Palletized Loading System)
Weapon Systems (WSDC) 3040-00-231-0056
DLA Procurement Analysis 3040-00-231-0056
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 3040-00-231-0056
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 3040-00-231-0056
Freight Information 3040-00-231-0056
3040-00-231-0056 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126900. A Sub NMFC of Z. It has a NMFC Description of POWER TRANS SHAFTING/SHAFTS. 3040-00-231-0056 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 65750 which rates the freight between FCL and LCL. 3040-00-231-0056 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 3040-00-231-0056 is not classified as a special type of cargo when transported by water. 3040-00-231-0056 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 3040-00-231-0056
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Vendor's Protective Grease or Oil Coating
- --
- --
- --
- Vendor's Setup or Folding Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 3040-00-231-0056 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
